This electronic supplement contains annotated topographic contour maps and hillshades generated from raw and filtered B4 LiDAR data, corresponding field photographs, and data tables comparing LiDAR-based and field-based slip measurements for individual geomorphic features along the Clark fault.
The B4 LiDAR Project collected LiDAR point cloud data of the southern San Andreas and San Jacinto Faults in southern California. Data acquisition and processing were performed by the National Center for Airborne Laser Mapping (NCALM) in partnership with the USGS and Ohio State University through funding from the EAR Geophysics program at the National Science Foundation (NSF). Optech International contributed the ALTM3100 laser scanner system. UNAVCO and SCIGN assisted in GPS ground control and continuous high rate GPS data acquisition. A group of volunteers from USGS, UCSD, UCLA, Caltech and private industry, as well as gracious landowners along the fault zones, also made the project possible.
For more information about the B4 Project, please visit "http://earthsciences.osu.edu/b4/Site/Welcome.html". The B4 LiDAR dataset is available in many formats via "http://www.opentopography.org" for neotectonic and paleoseismic research.
Clark Fault Offsets.kmz. This downloadable Google Earth index file (KMZ) contains the locations of offset features along the Clark strand of the San Jacinto Fault.
Note: All hillshades and topographic maps were created with raw or filtered B4 LiDAR data.

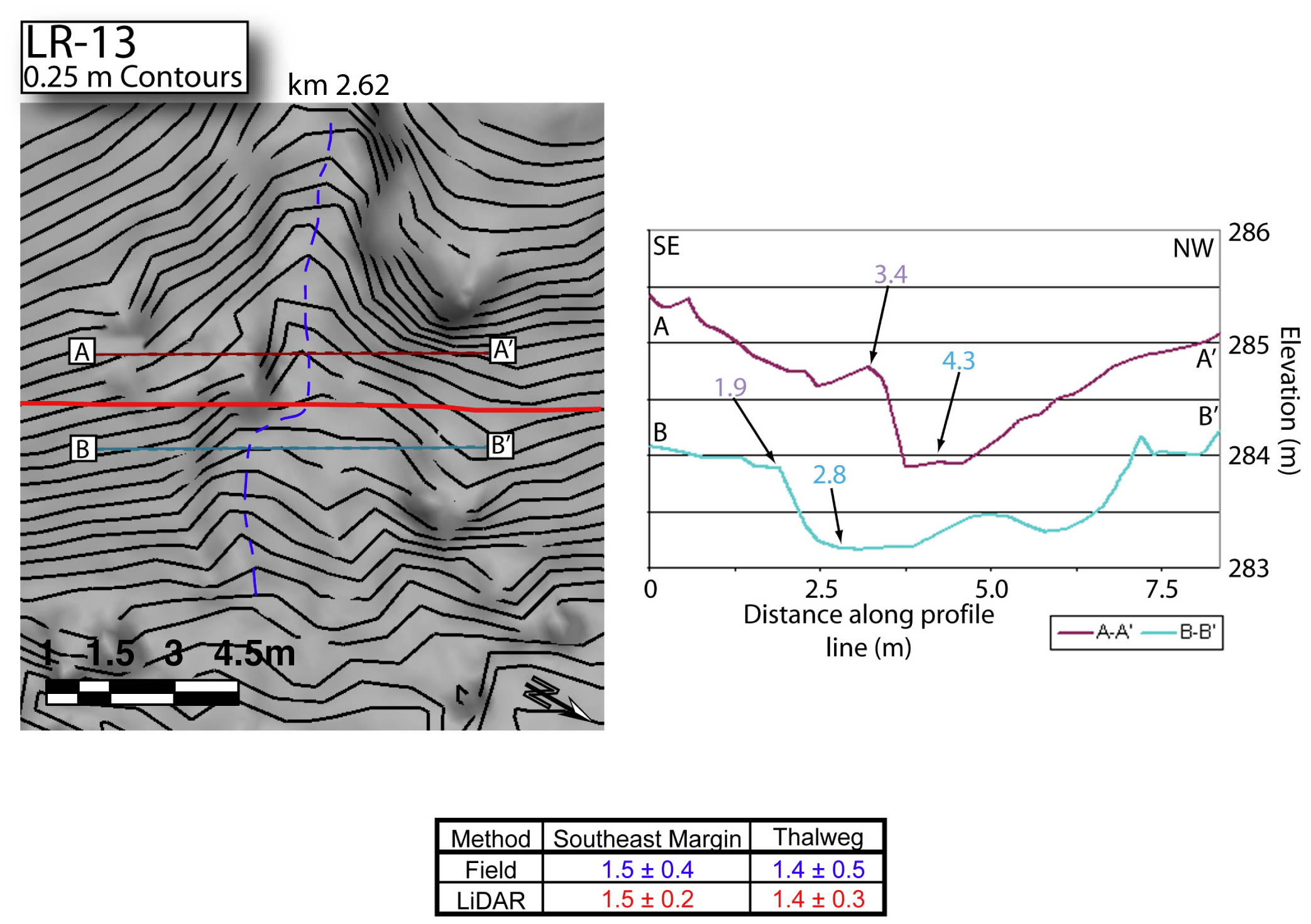

Figure S1. Annotated 0.25 m QTM topographic contour map and channel cross-sections of LR- 13 (UTM zone 11, 574258 E, 3686332 N) along Lute Ridge. In the QTM image the present-day channel thalweg is shown as a dashed blue line and the fault trace is the red line. The numbers on the channel cross-sections represent distances along the profile line, referenced parallel to the fault. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margin.

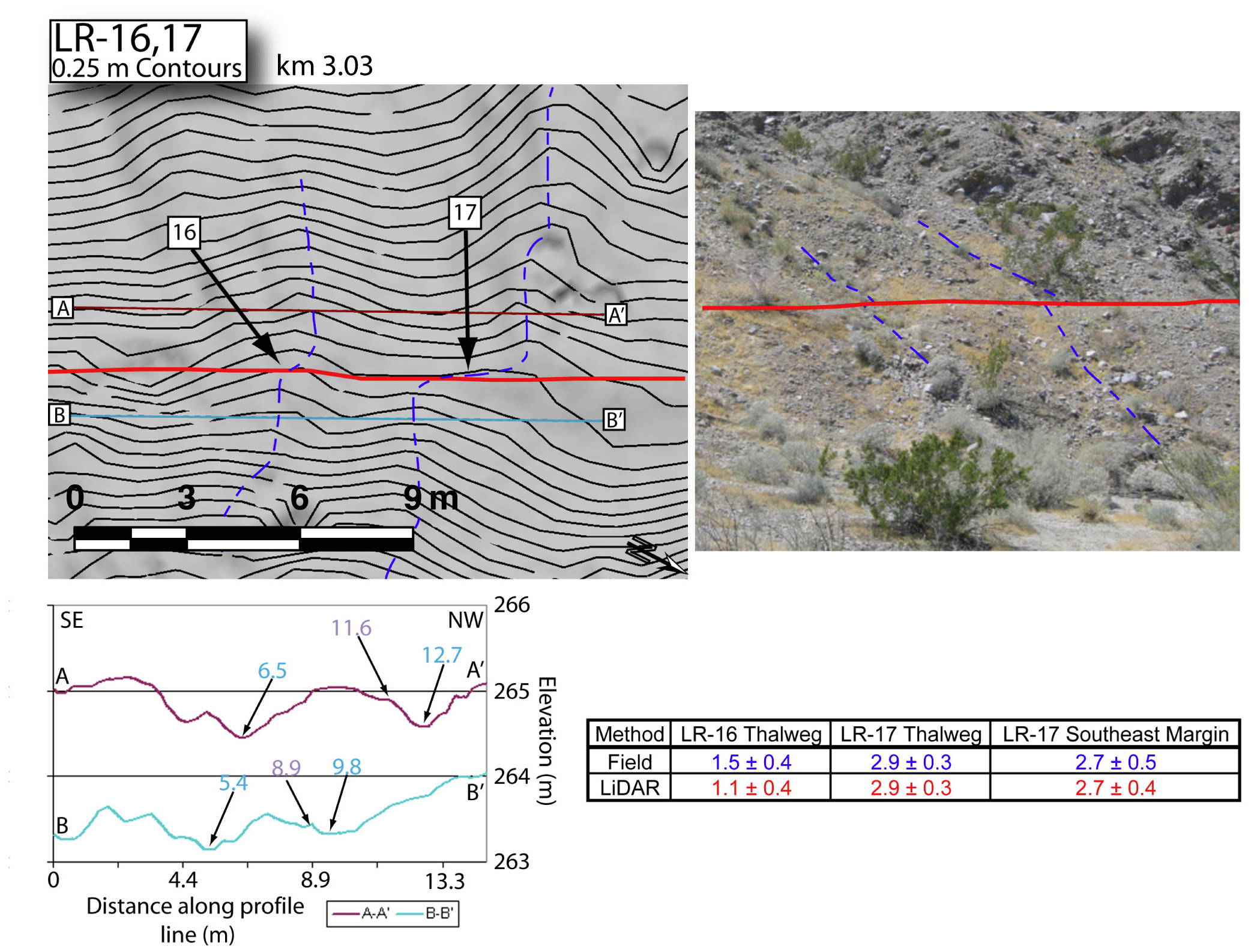

Figure S2. Annotated 0.25 m QTM topographic contour map, field photograph, and channel cross-sections of LR-16 and LR-17 (UTM zone 11, 573905 E, 3686536 N) along Lute Ridge. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the red lines. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field and LiDAR displacements for both LR-16 and LR-17. LR-16 expresses roughly half the displacement of LR-17, suggesting that the smaller rill, LR-16, was only displaced in the most recent event.

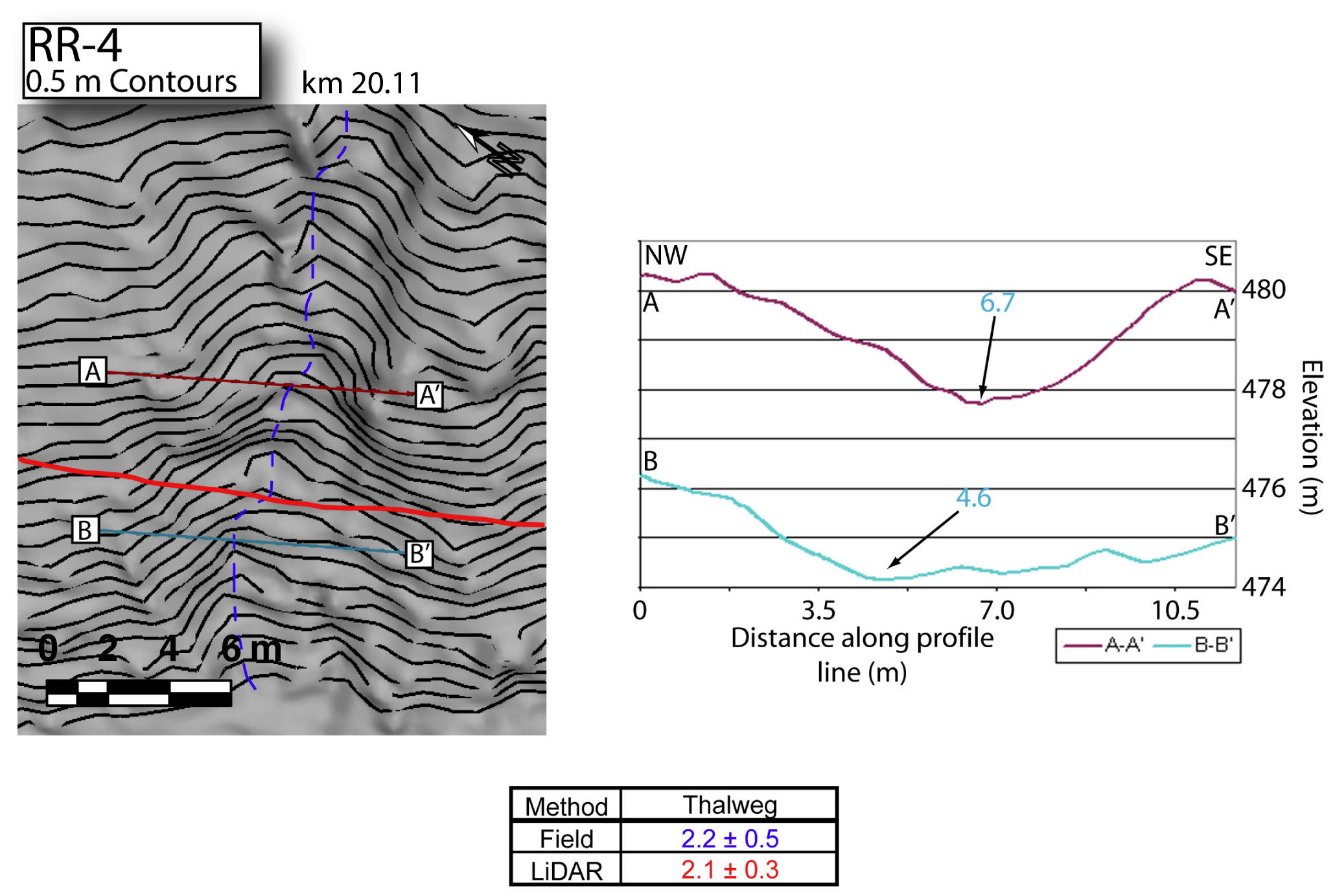

Figure S3. Annotated 0.5 m QTM topographic contour map and channel cross-sections of RR-4 (UTM zone 11, 559754 E, 3696113 N) along Rockhouse Ridge. In the QTM image the present-day channel thalweg is shown as a dashed blue line and the fault trace is the red line. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field and LiDAR displacements for the channel thalweg.

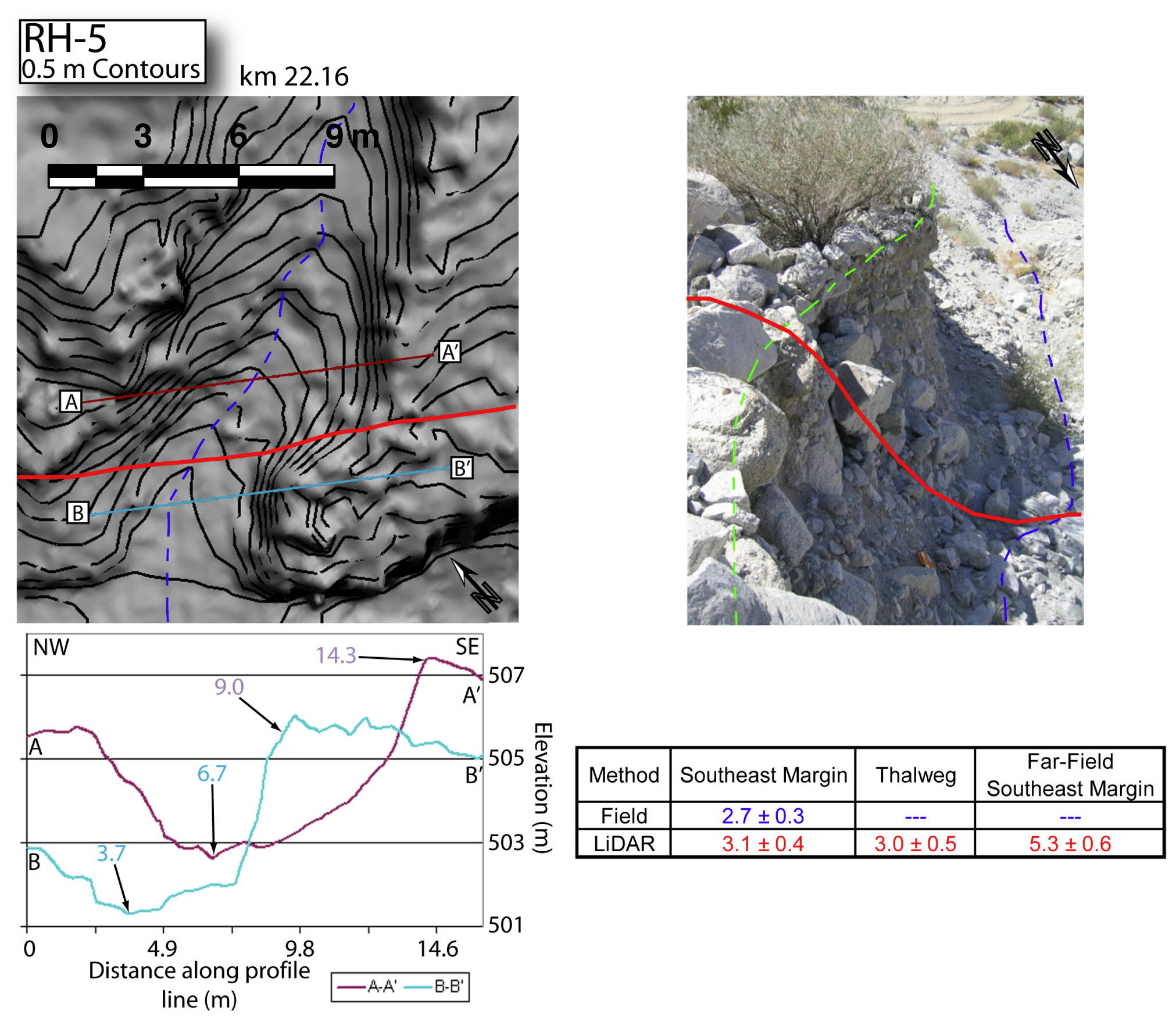

Figure S4. Annotated 0.5 m QTM topographic contour map, field photograph, and channel cross-sections of RH-5 (UTM zone 11, 557954 E, 3697119 N) in Rockhouse Canyon. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the red lines. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margins.

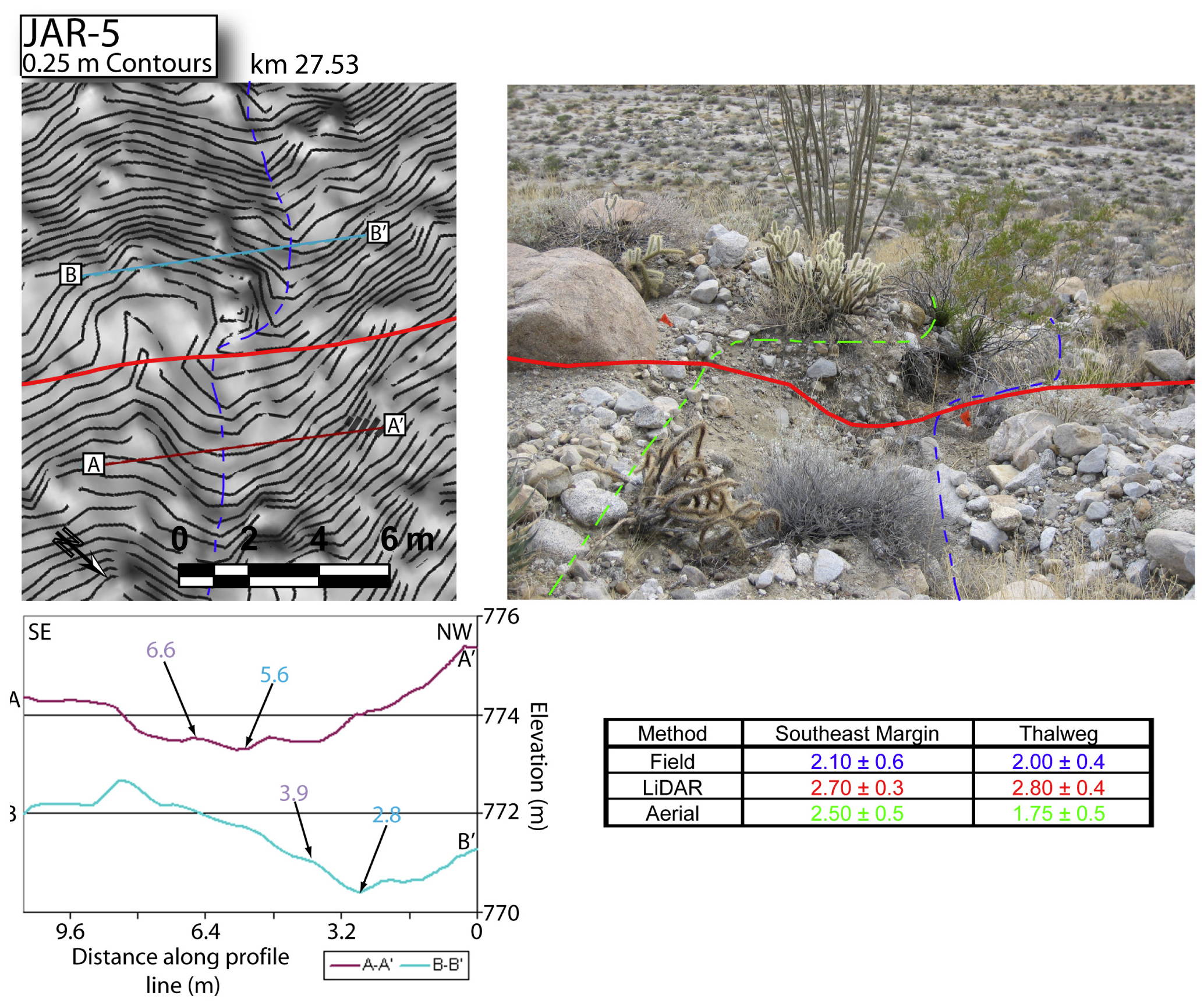

Figure S5. Annotated 0.25 m QTM topographic contour map, field photograph, and channel cross-sections of JAR-5 (UTM zone 11, 553375 E, 3699925 N) along Jackass Ridge. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the red lines. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field, LiDAR, and aerial photograph displacements for the channel thalweg and southeast margin.

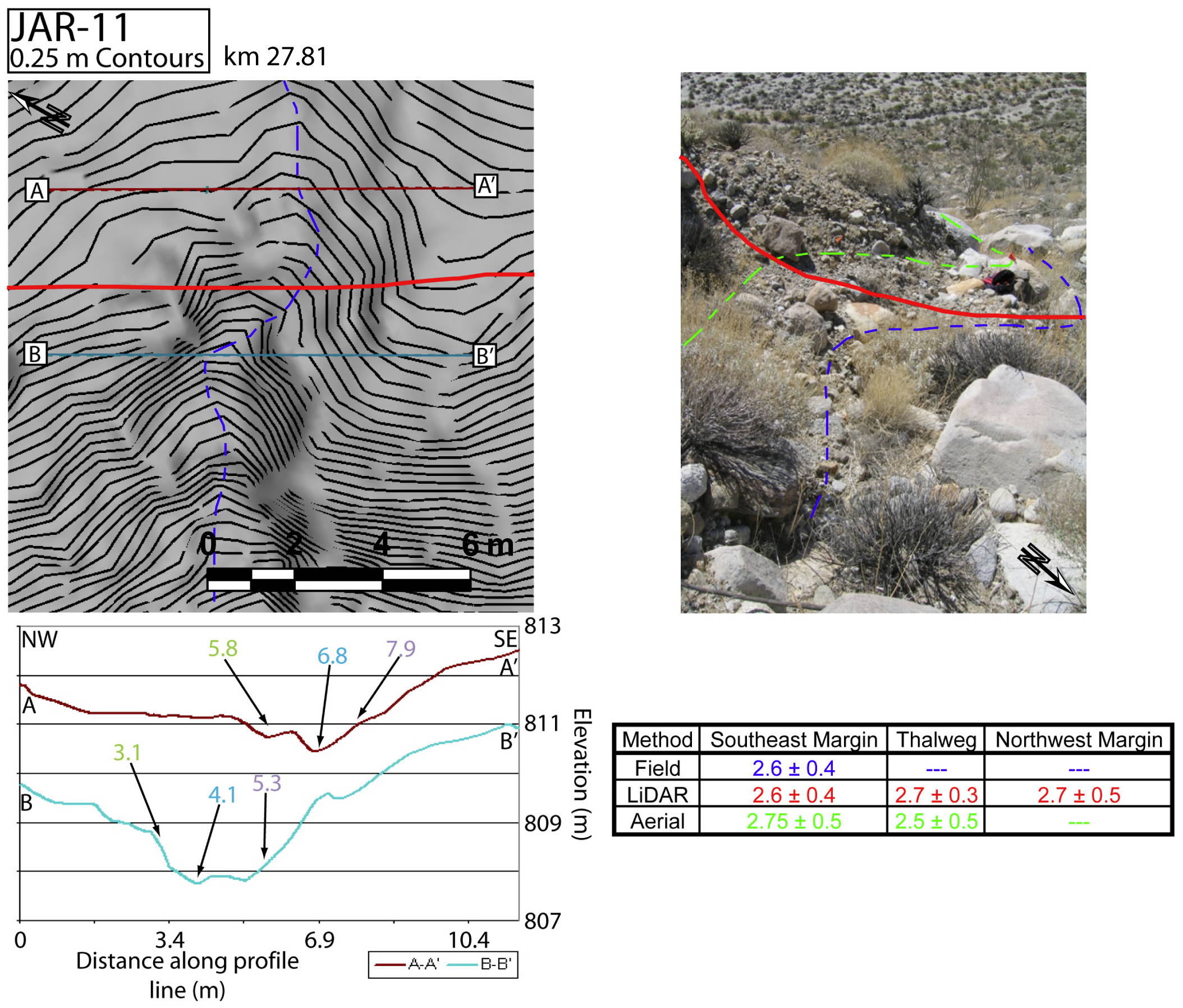

Figure S6. Annotated 0.25 m QTM topographic contour map, field photograph, and channel cross-sections of JAR-11 (UTM zone 11, 553133 E, 3700059 N) along Jackass Ridge. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the red lines. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field, LiDAR, and aerial photograph displacements for the channel thalweg and margins.

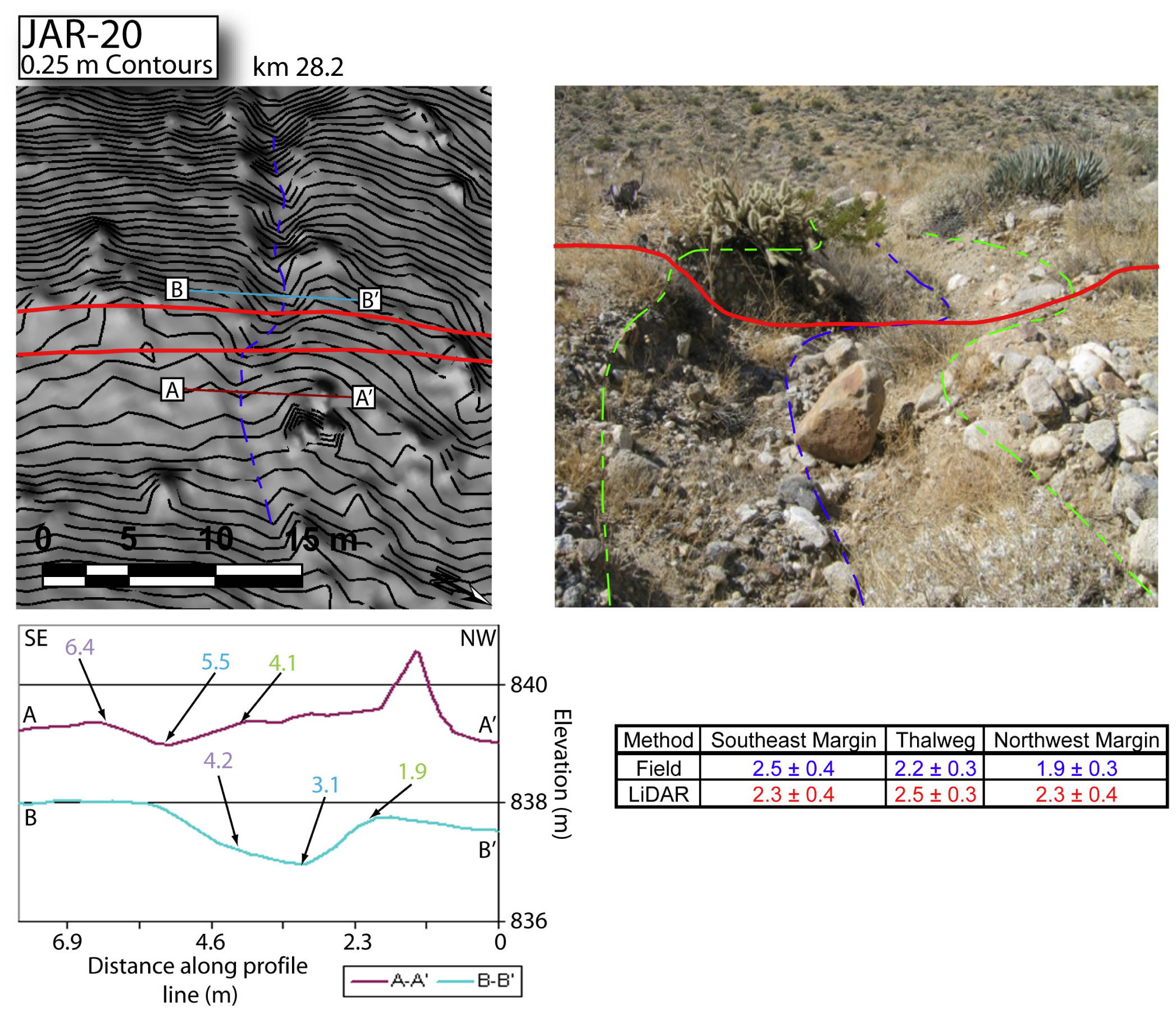

Figure S7. Annotated 0.25 m QTM topographic contour map, field photograph, and channel cross-sections of JAR-20 (UTM zone 11, 552798 E, 3700271 N) along Jackass Ridge. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the red lines. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margins.

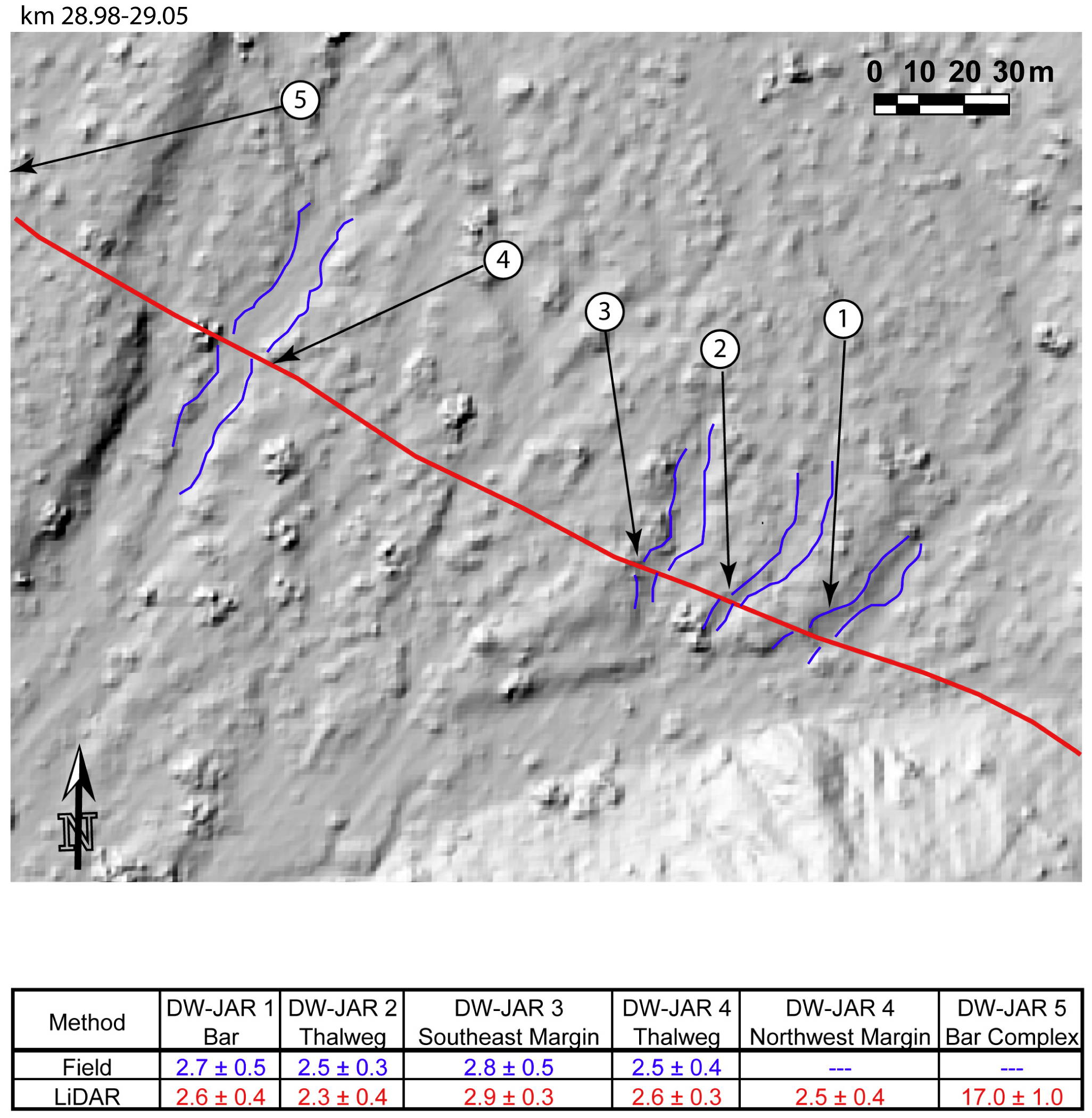

Figure S8. Annotated 0.25 m grid LiDAR hillshade of DW-JAR where Dry Wash crosses the fault north of Jackass Ridge (UTM zone 11, 552123 E, 3700715 N - channel intersection #3). In the QTM image the present-day channel margins are shown as blue lines and the fault trace is the red line. The table shows measured estimates of field and LiDAR displacements for multiple features.

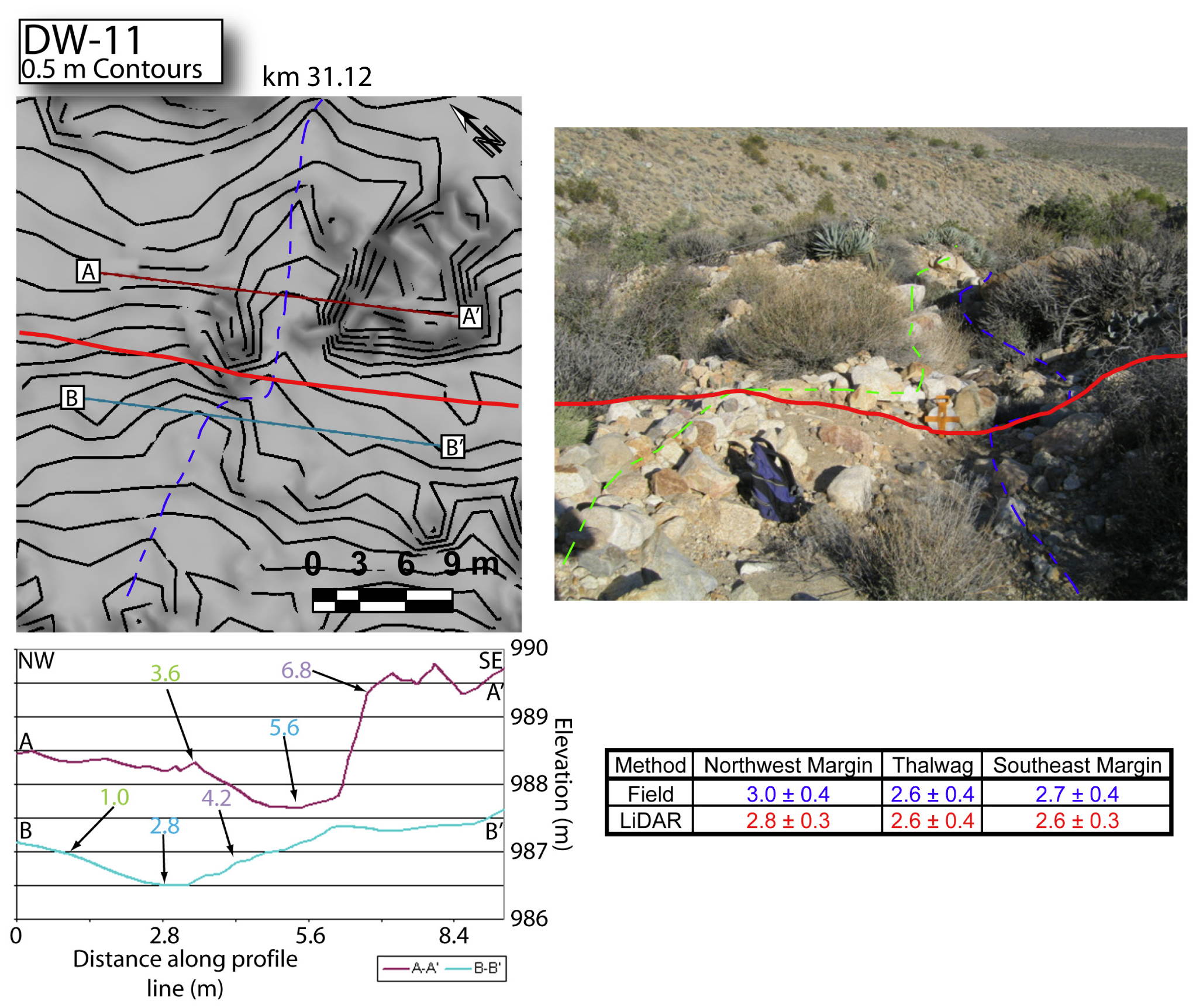

Figure S9. Annotated 0.5 m QTM topographic contour map, field photograph, and channel cross-sections of DW-11 (UTM zone 11, 550367 E, 3701892 N) on the west side of Dry Wash. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the red lines. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margins.

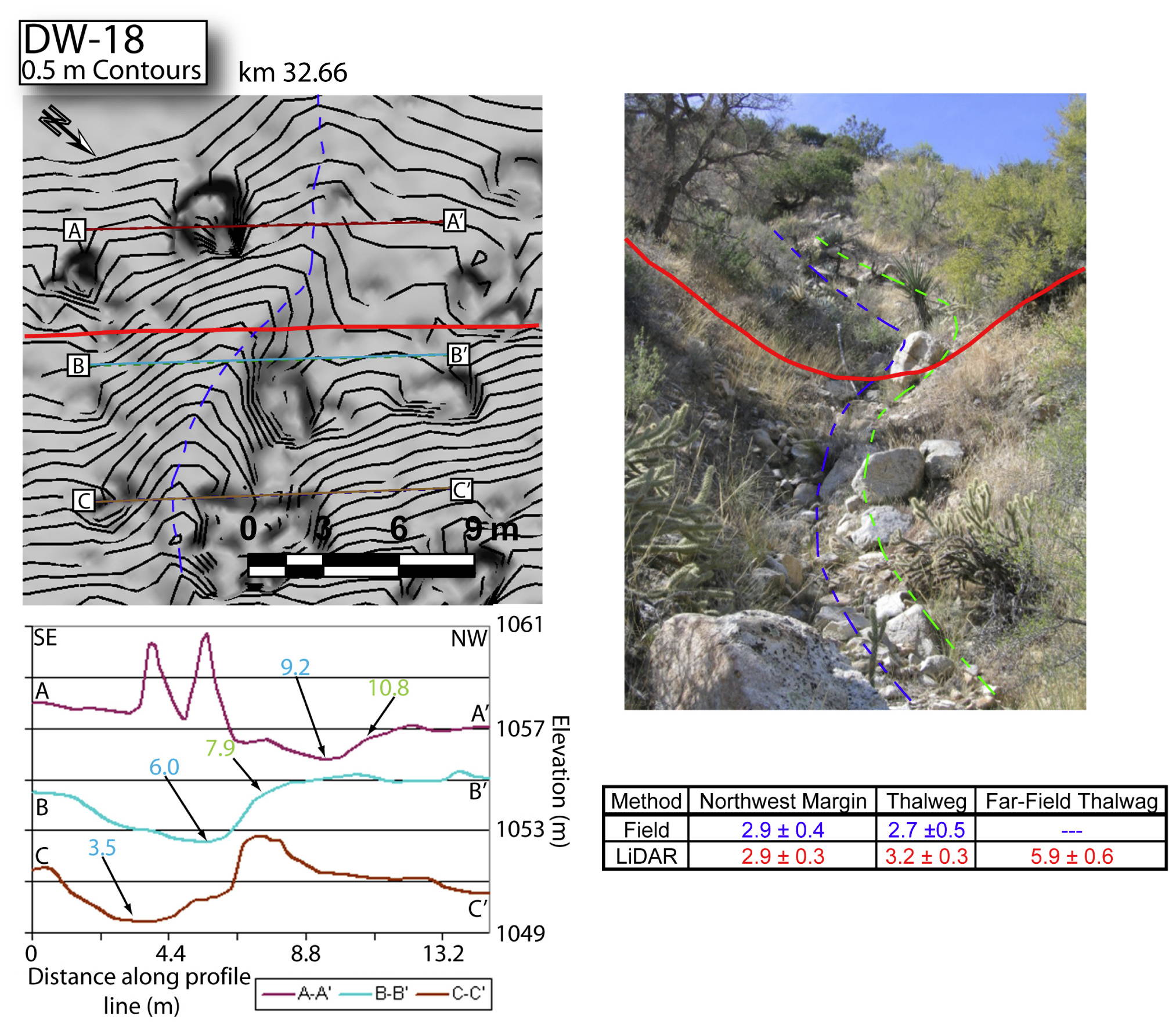

Figure S10. Annotated 0.5 m QTM topographic contour map, field photograph, and channel cross-sections of DW-18 (UTM zone 11, 549104 E, 3702763 N). In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the red lines. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margins.

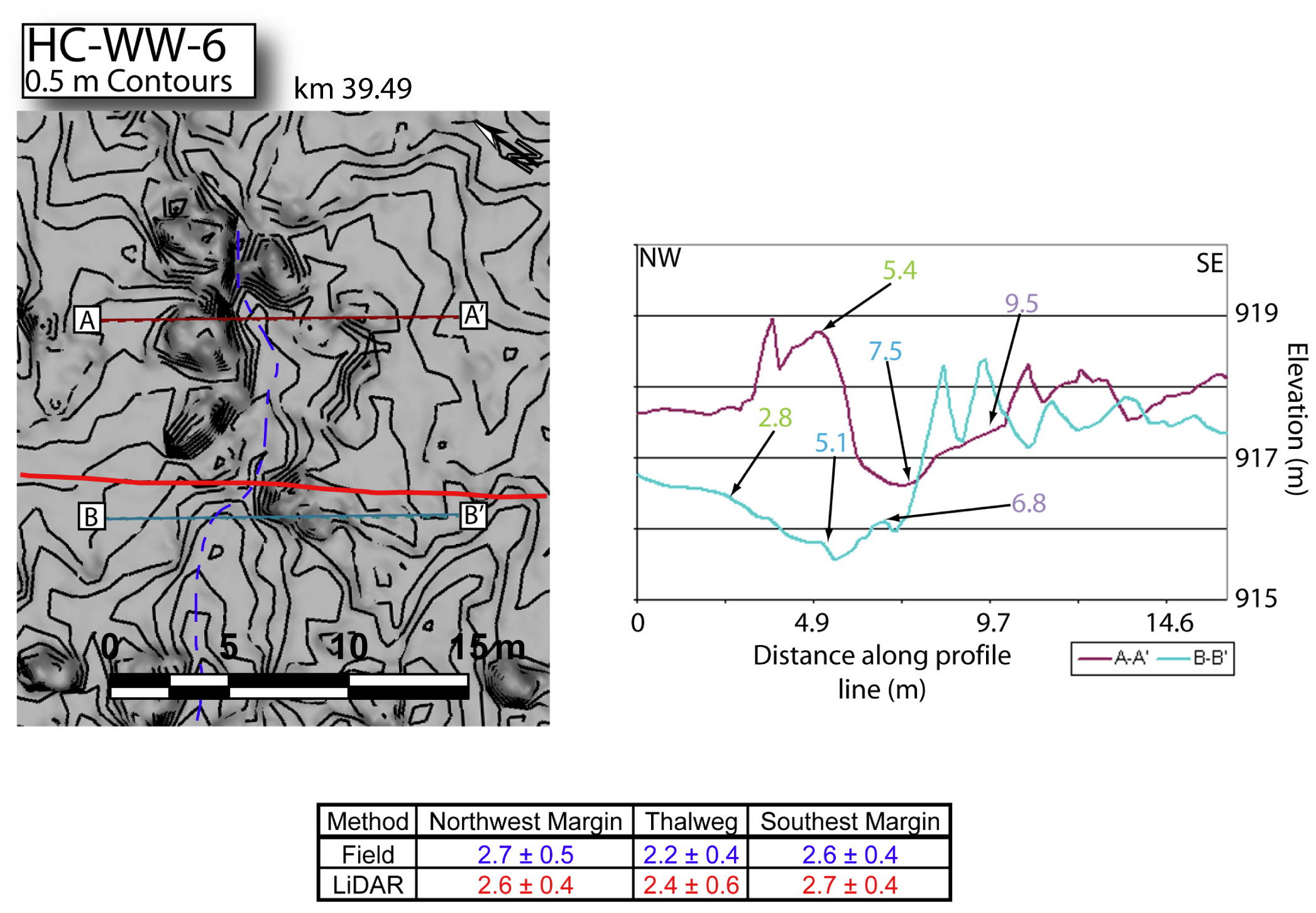

Figure S11. Annotated 0.5 m QTM topographic contour map and channel cross-sections of HC- WW-6 (UTM zone 11, 543394 E, 3706519 N) in Horse Canyon. In the QTM image the present-day channel thalweg is shown as a dashed blue line and the fault trace is the red line. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margins.

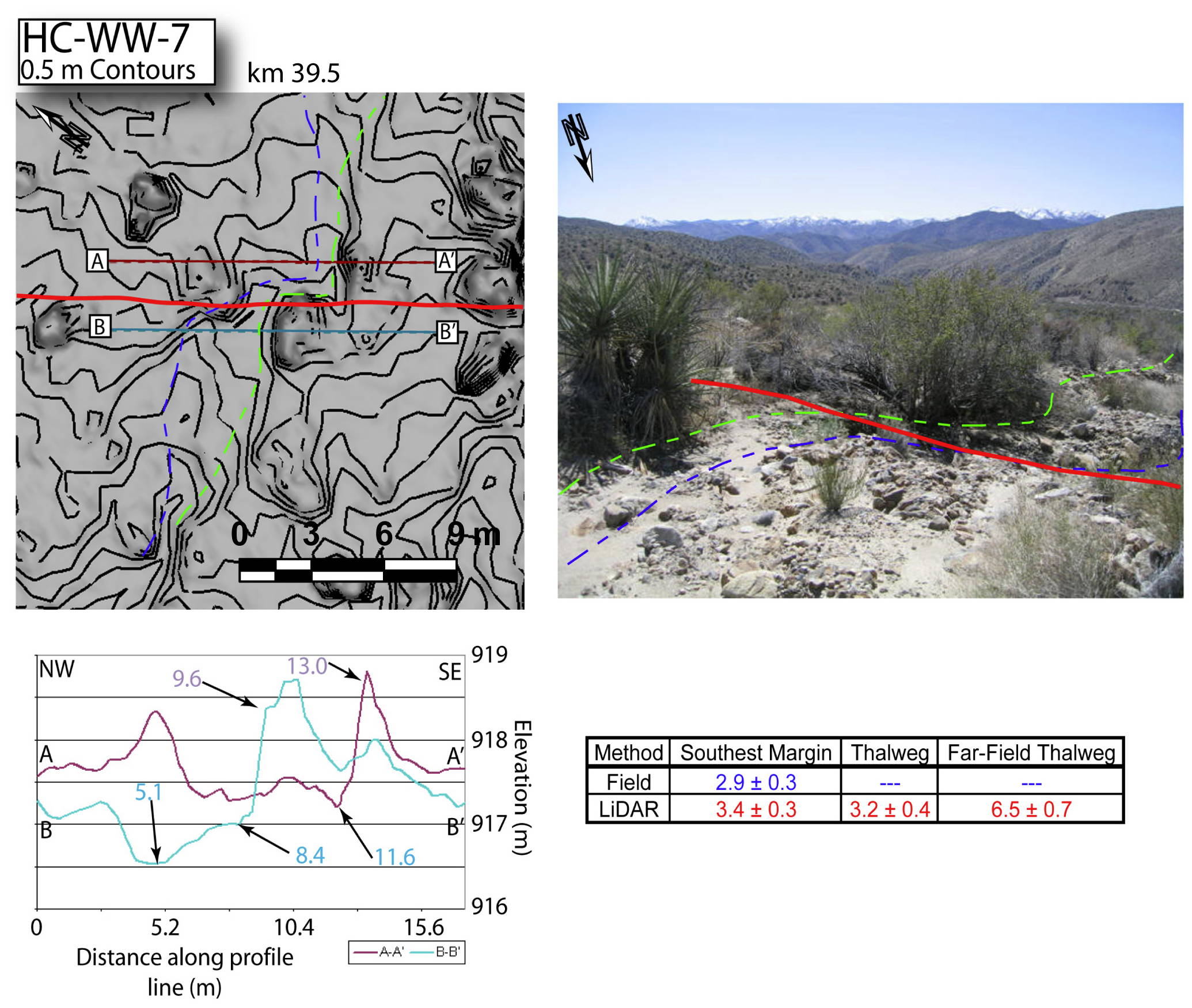

Figure S12. Annotated 0.5 m QTM topographic contour map, field photograph, and channel cross-sections of HC-WW-7 (UTM zone 11, 543388 E, 3706531 N) in White Wash. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the red lines. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margins.

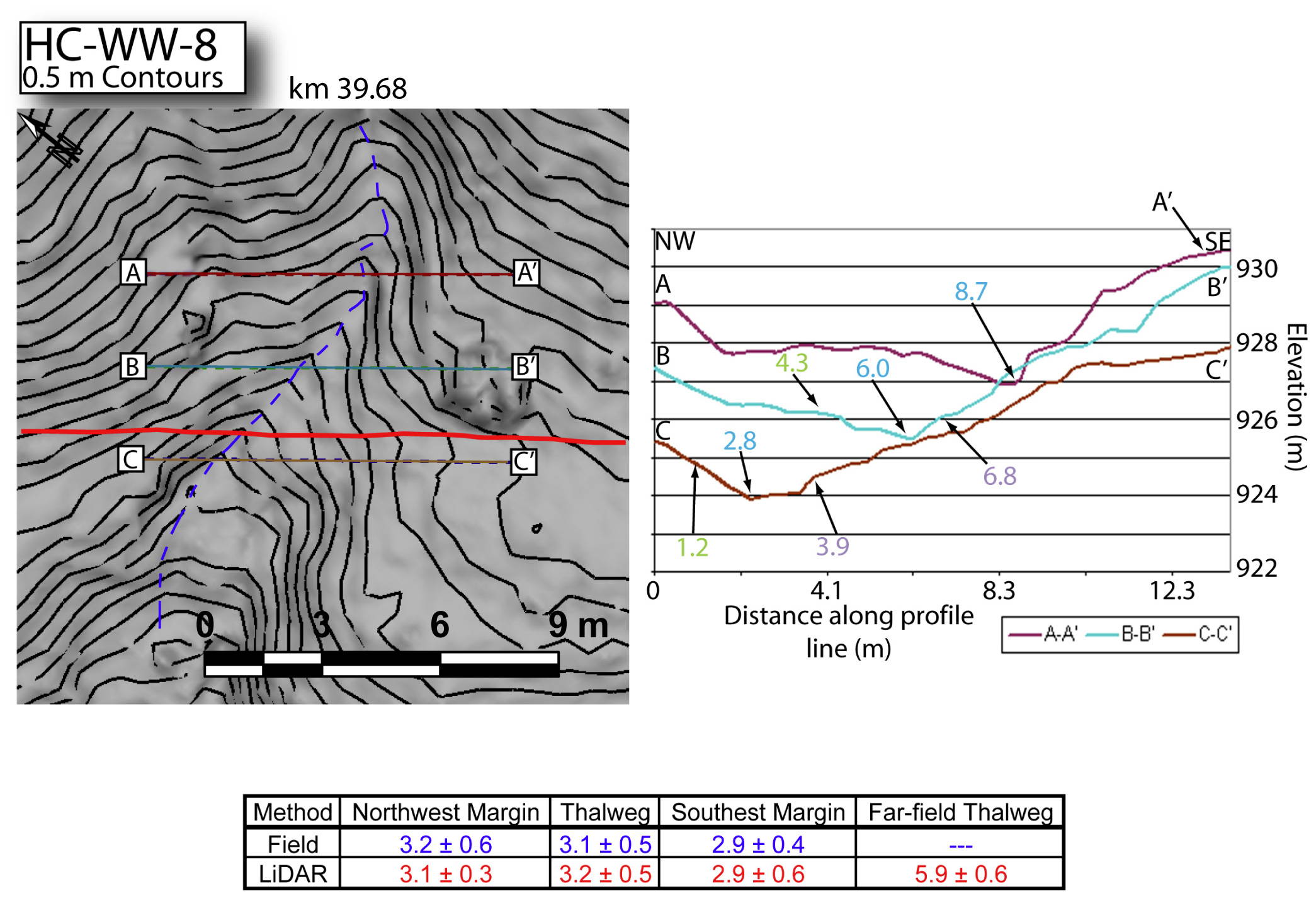

Figure S13. Annotated 0.5 m QTM topographic contour map and channel cross-sections of HC- WW-8 (UTM zone 11, 543279 E, 3706681 N) In White Wash. In the QTM image the present-day channel thalweg is shown as a dashed blue line and the fault trace is the red line. Cross-channel profiles A-A', B-B', and C-C' are color coded. The table shows measured estimates of field and LiDAR displacements of the channel thalweg and margins.

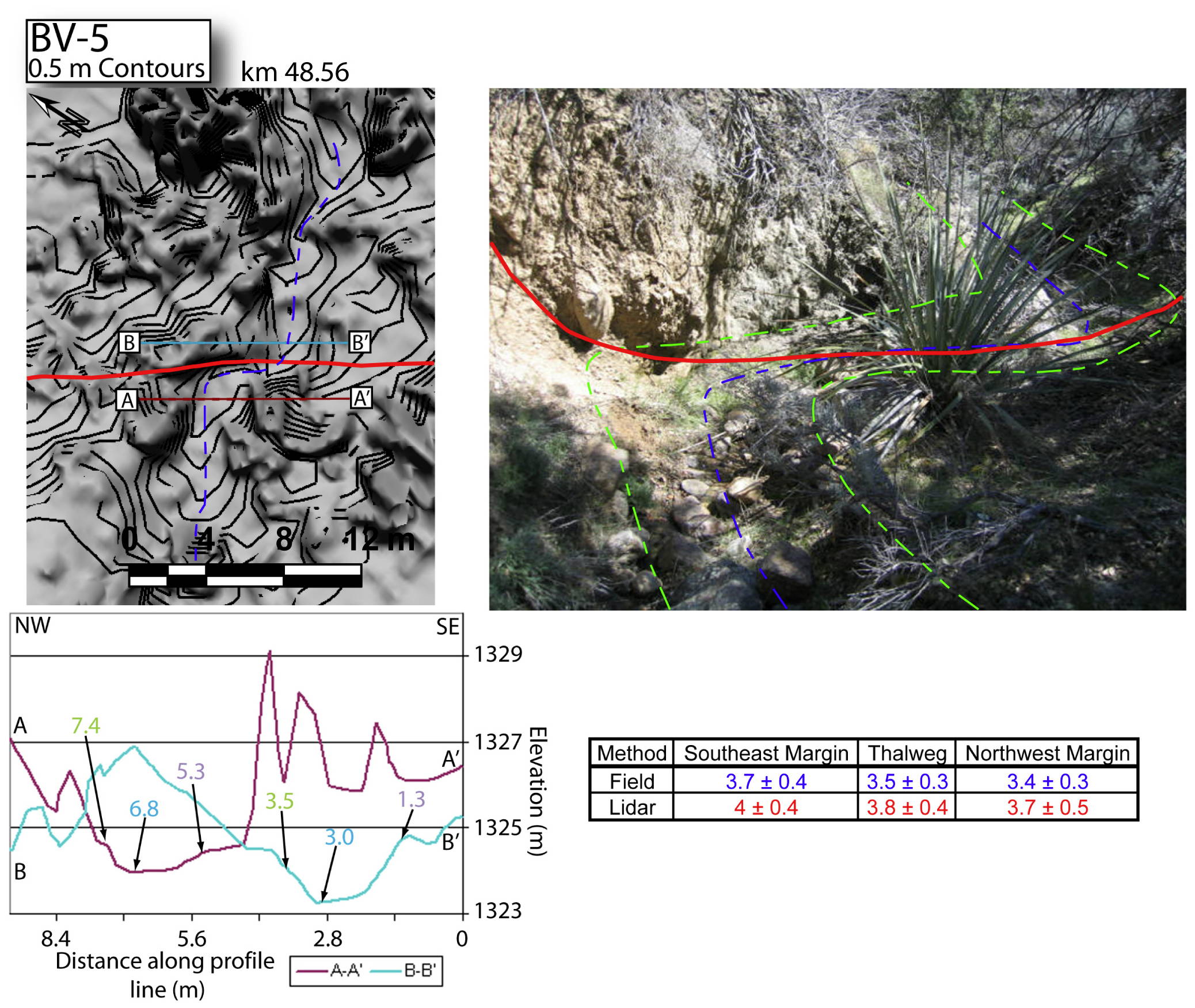

Figure S14. Annotated 0.5 m QTM topographic contour map, field photograph, and channel cross-sections of BV-5 (UTM zone 11, 536499 E, 3712504 N) near Burnt Valley. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the red lines. Cross-channel profiles A-A' and B-B' are color coded. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margins.

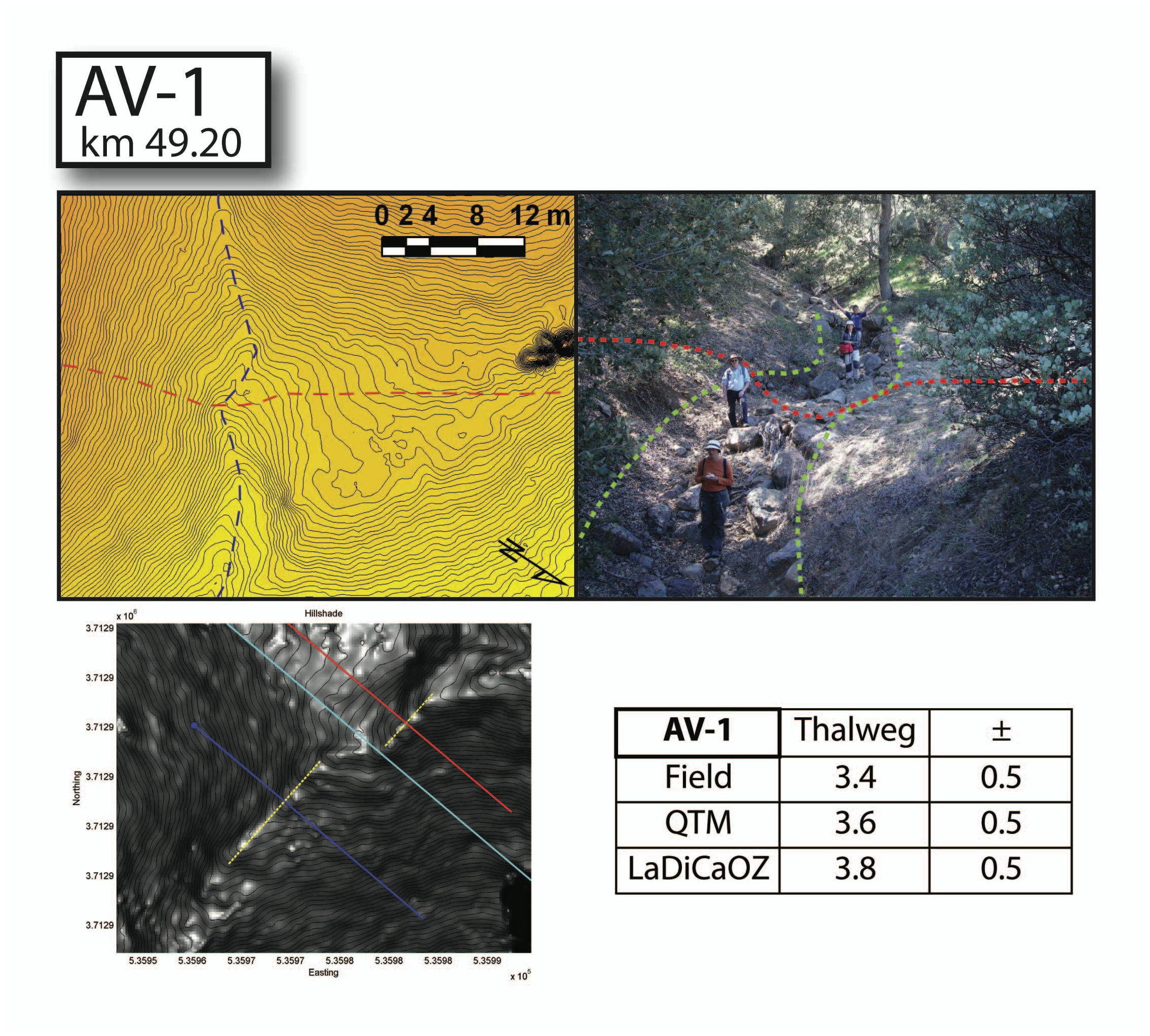

Figure S15. Annotated 0.25 m QTM topographic contour map, field photograph, and LaDiCaoz contour hillshade of AV-1 (UTM zone 11, 535977 E, 3712869 N) in Anza Valley. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the dashed red lines. In the LaDiCaoz contour hillshade, the channel thalweg segments are dashed yellow lines, the cross- sectional channel profiles are defined by solid blue and red lines, and the fault trace is the solid teal line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg.

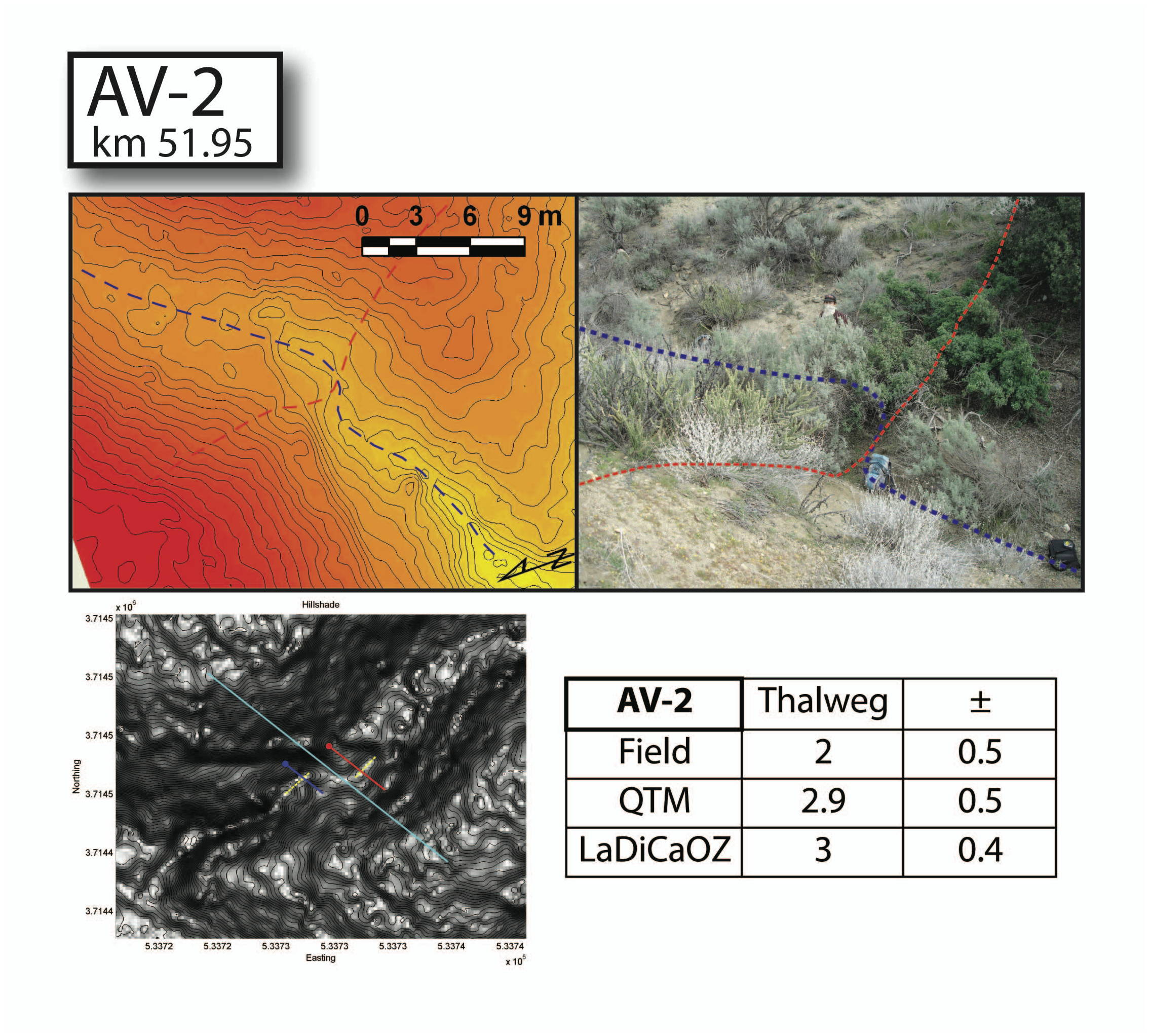

Figure S16. Annotated 0.25 m QTM topographic contour map, field photograph, and LaDiCaoz hillshade of AV-2 (UTM zone 11, 533729 E, 3714456 N) in Anza Valley. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. In the LaDiCaoz contour hillshade, the channel thalweg segments are dashed yellow lines, the cross- sectional channel profiles are defined by solid blue and red lines, and the fault trace is the solid teal line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg.

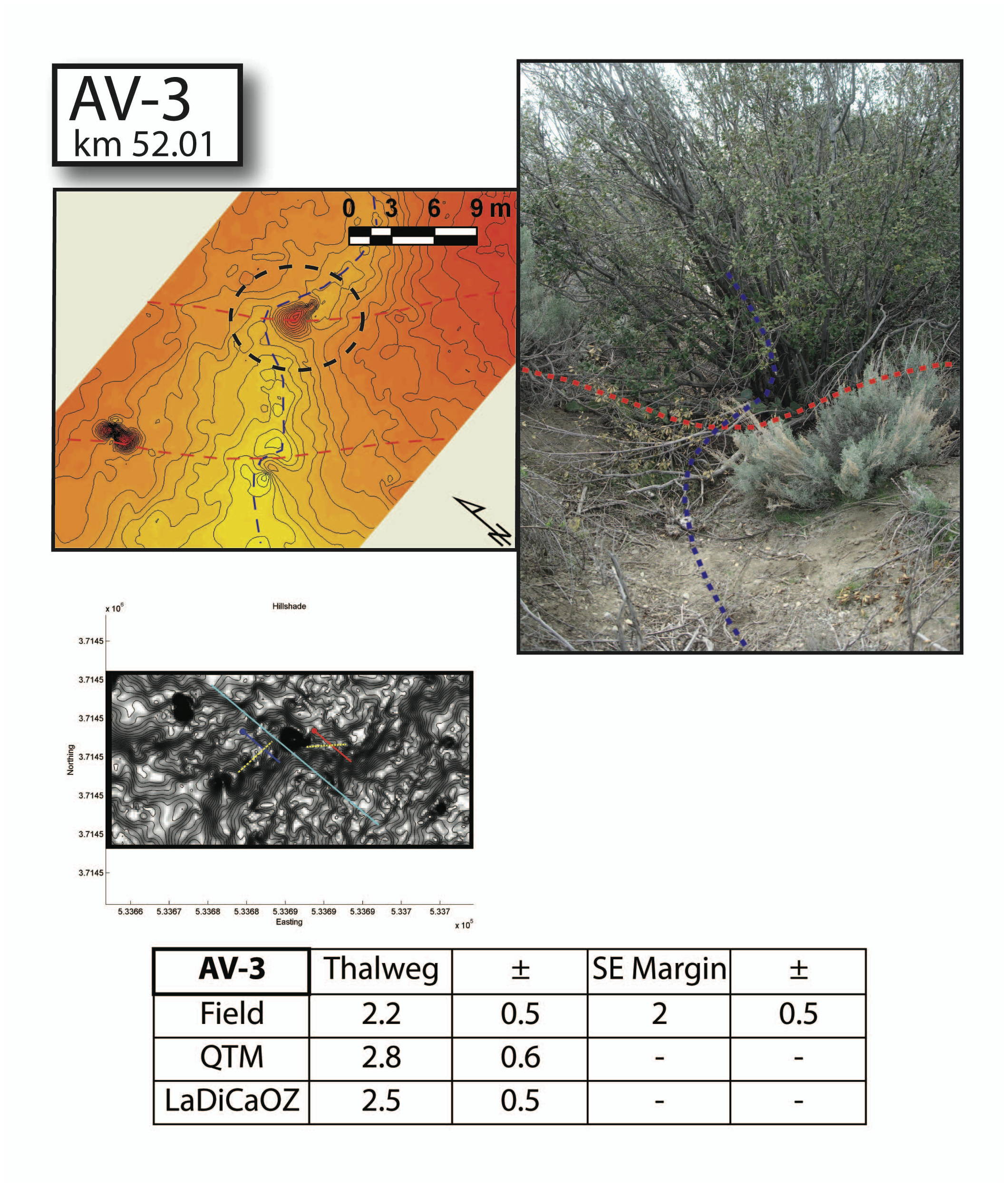

Figure S17. Annotated 0.25 m QTM topographic contour map, field photograph, and LaDiCaoz hillshade of AV-3 (UTM zone 11, 533685 E, 3714497 N) in Anza Valley. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. In the LaDiCaoz contour hillshade, the channel thalweg segments are dashed yellow lines, the cross- sectional channel profiles are defined by solid blue and red lines, and the fault trace is the solid teal line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and SE margin. Two fault strands were identified at this location. AV-3 and AV-4 measurements are combined as presented as a minimum for slip distribution considerations.

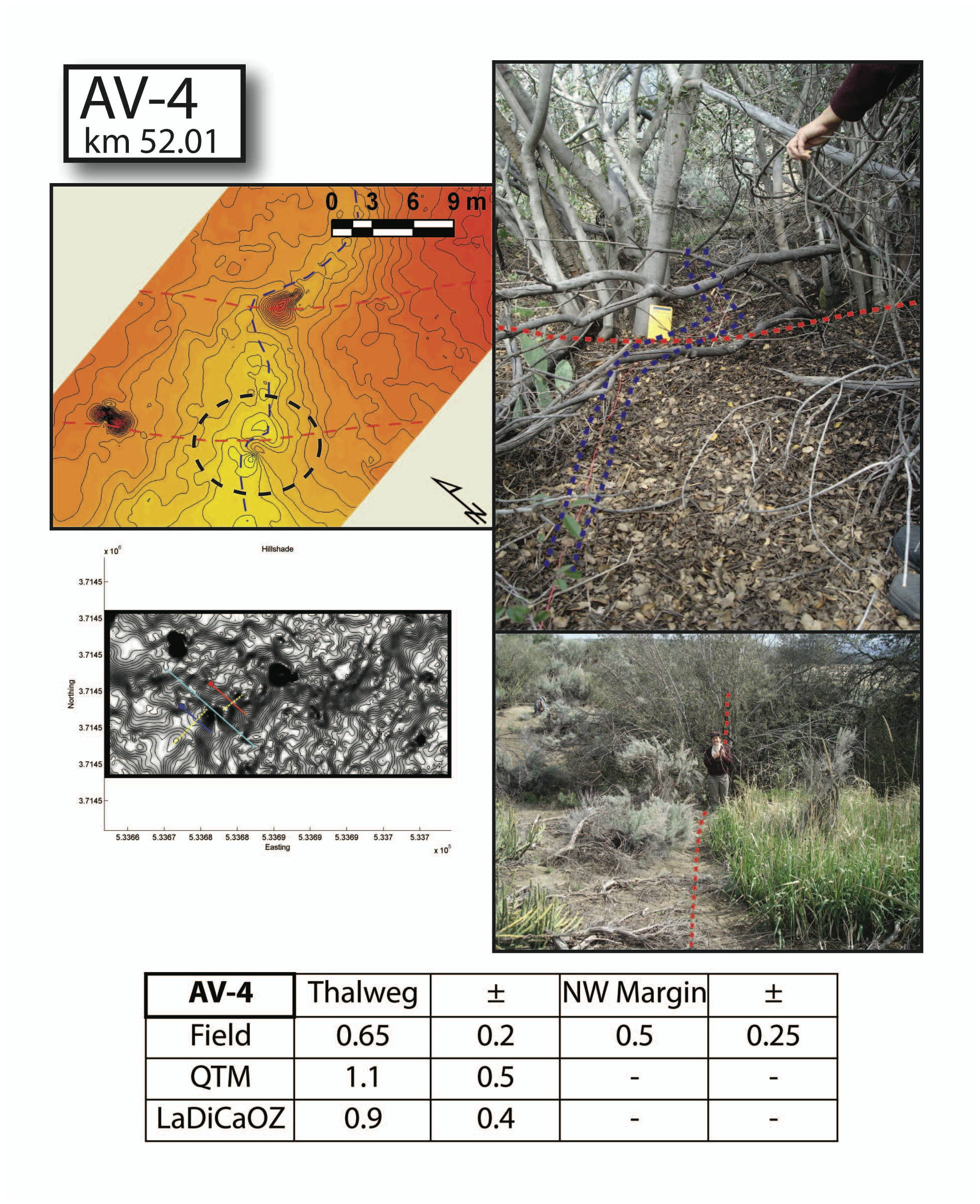

Figure S18. Annotated 0.25 m QTM topographic contour map, field photographs, and LaDiCaoz hillshade of AV-4 (UTM zone 11, 533677 E, 3714492 N) in Anza Valley. In the QTM image and field photographs, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. In the LaDiCaoz contour hillshade, the channel thalweg segments are dashed yellow lines, the cross- sectional channel profiles are defined by solid blue and red lines, and the fault trace is the solid teal line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and NW margin. The second field photograph shows prominent vegetation lineament along strike into the offset channel. Two fault strands were identified at this location. AV-3 and AV-4 measurements are combined and presented as a minimum for slip distribution considerations.

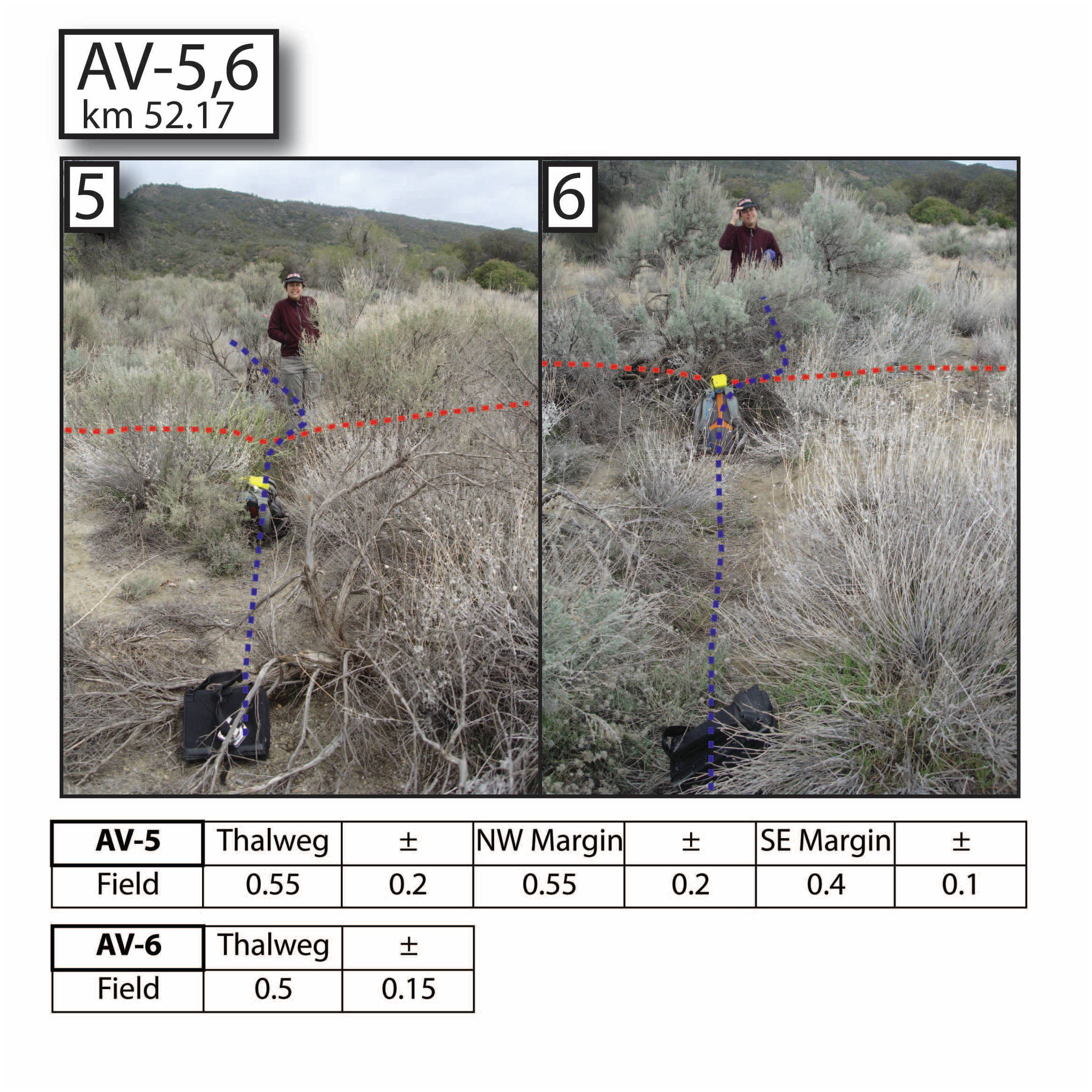

Figure S19. Annotated field photographs of AV-5 (UTM zone 11, 533561 E, 3714599 N) and AV- 6 (UTM zone 11, 533551 E, 3714592 N) in Anza Valley. In the field photographs, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. The tables show measured estimates of field and LiDAR displacements for the channel thalweg and channel margins. Two fault strands were identified at this location. AV-5 and AV-6 measurements are combined and presented as a minimum for slip distribution considerations.

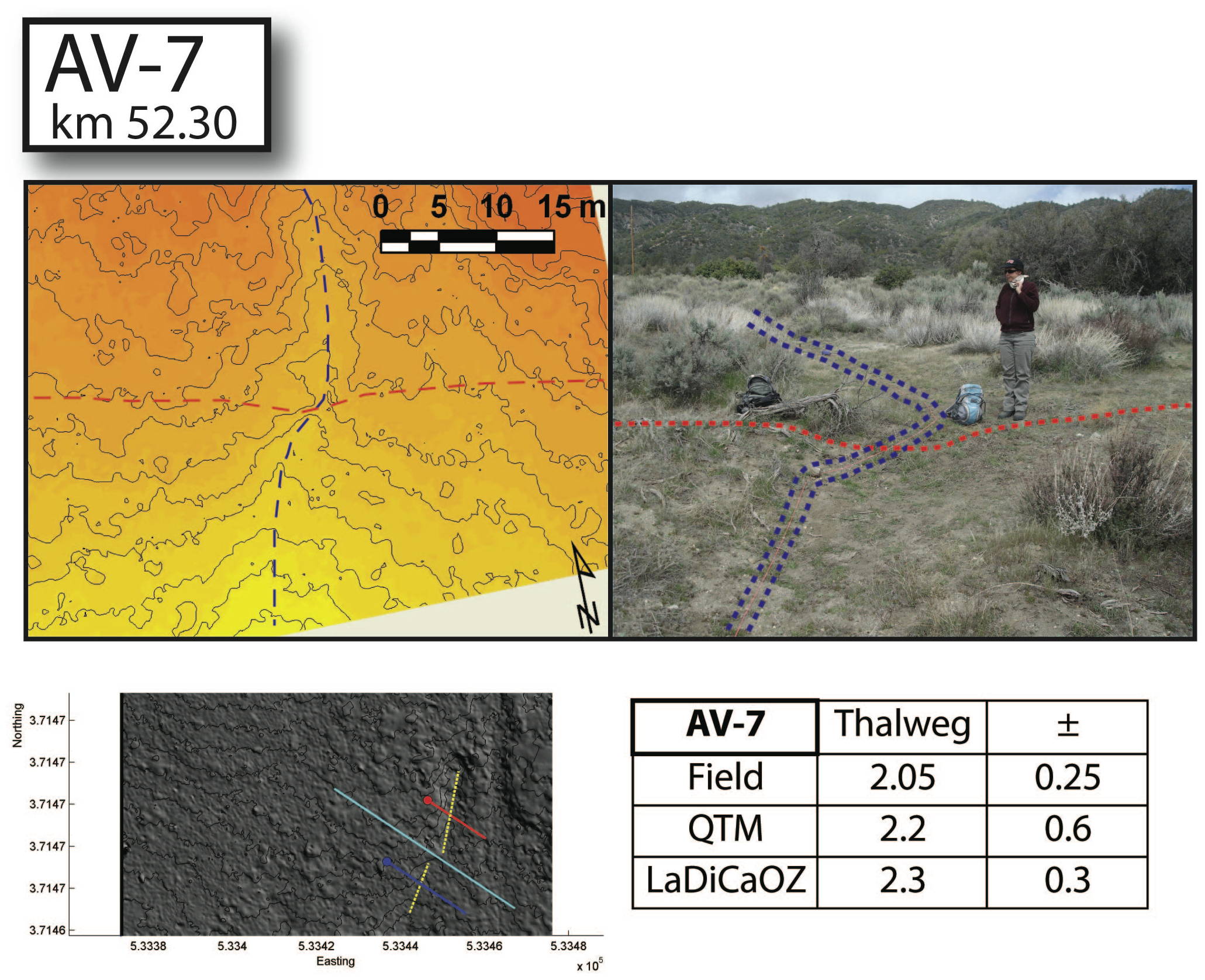

Figure S20. Annotated 0.25 m QTM topographic contour map, field photograph, and LaDiCaoz hillshade of AV-7 (UTM zone 11, 533450 E, 3714665 N) in Anza Valley. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. In the LaDiCaoz contour hillshade, the channel thalweg segments are dashed yellow lines, the cross- sectional channel profiles are defined by solid blue and red lines, and the fault trace is the solid teal line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg. This offset is in an area with multiple fault strands, so measurements are presented as minimums for slip distribution considerations.

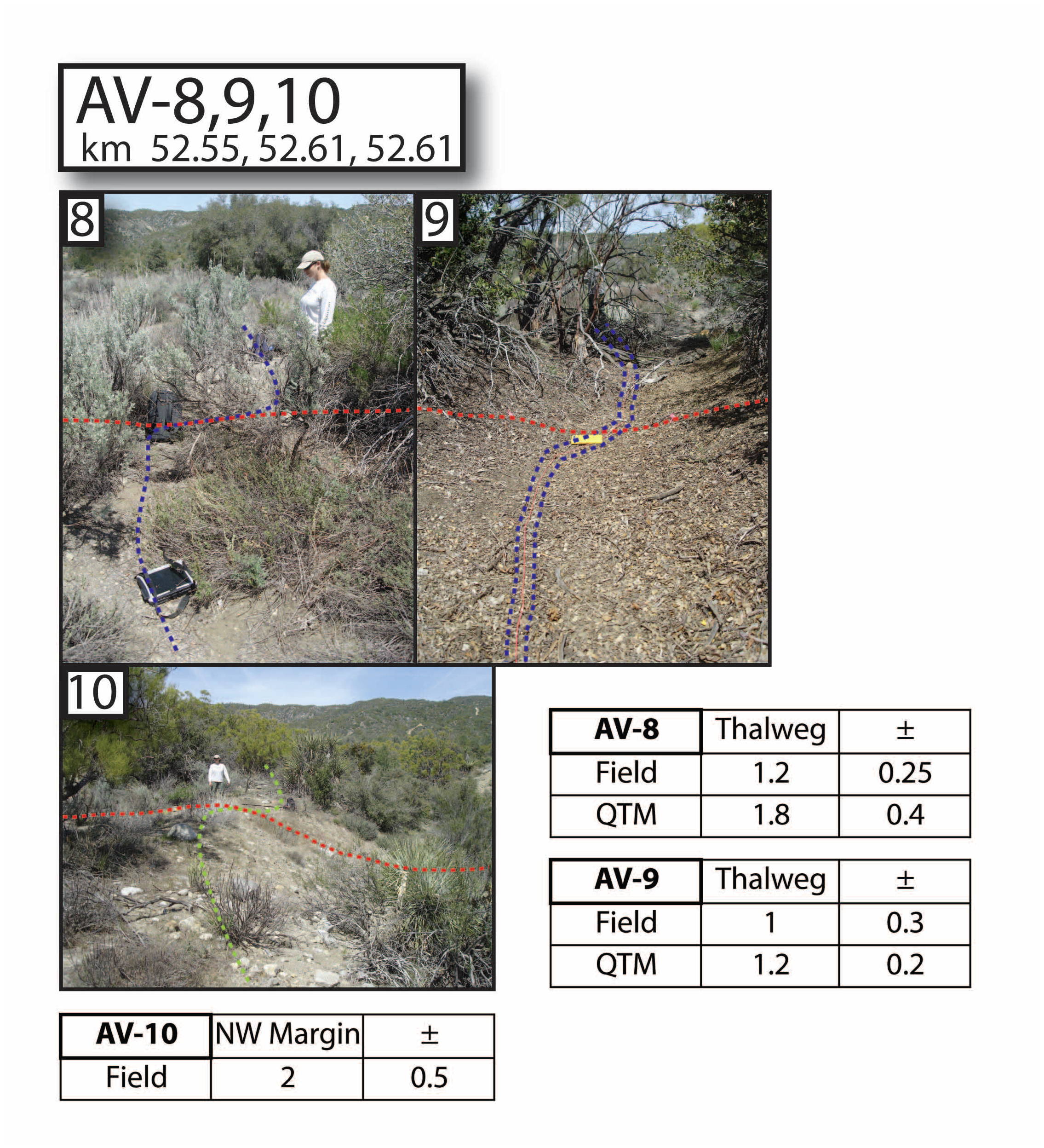

Figure S21. Annotated field photographs of AV-8 (UTM zone 11, 533276 E, 3714852 N), AV-9 (UTM zone 11, 533229 E, 3714884 N), and AV-10 (UTM zone 11, 533216 E, 3714861 N) in Anza Valley. In the field photographs, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the dashed red lines. The tables show measured estimates of field and LiDAR displacements for the channel thalwegs. These offsets are in an area with multiple fault strands, so these measurements are presented as minimums for slip distribution considerations.

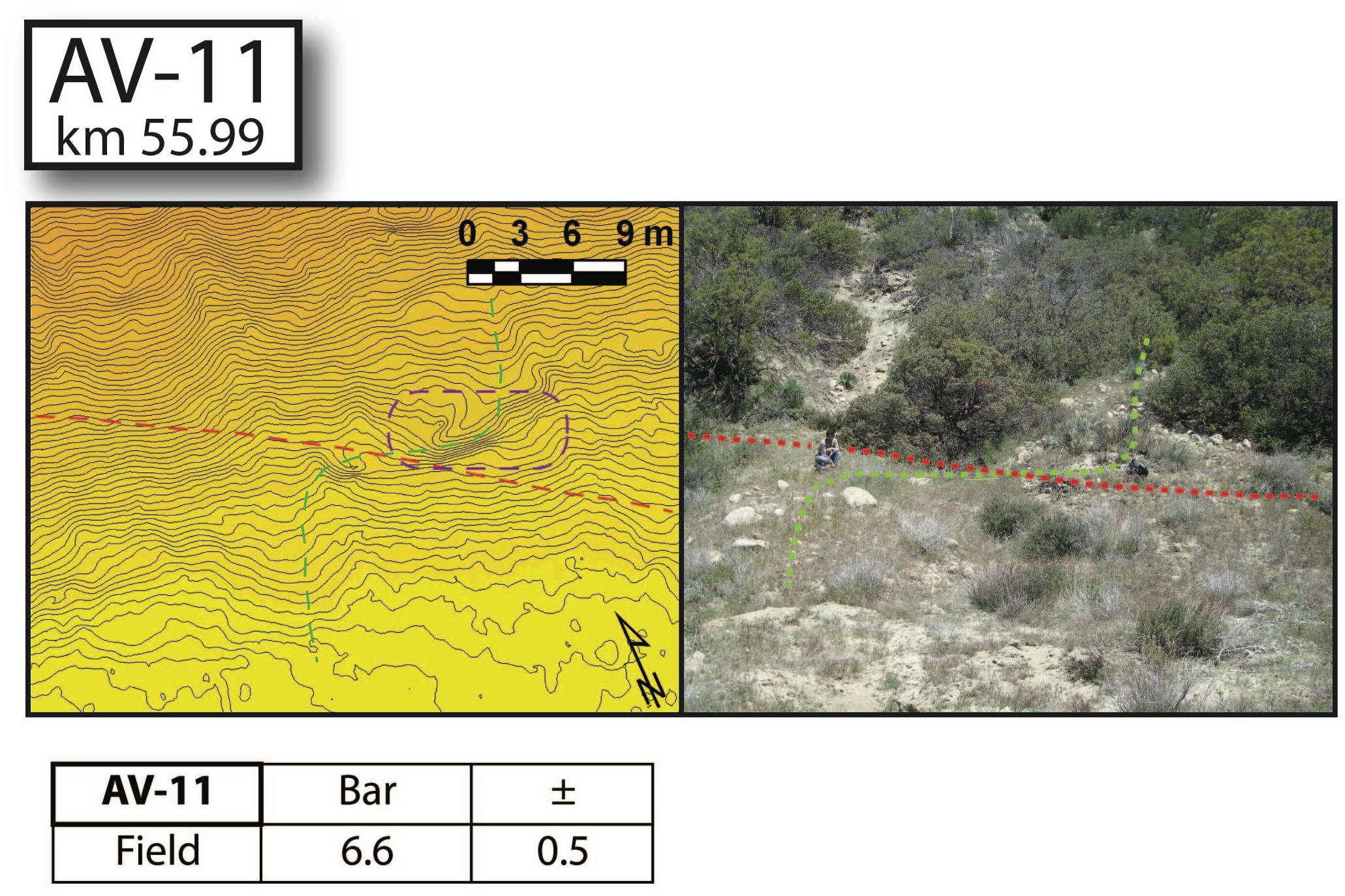

Figure S22. Annotated 0.25 m QTM topographic contour map and field photograph of AV-11 (UTM zone 11, 530474 E, 3716834 N) in Anza Valley. In the QTM image and field photograph, the present-day bar crests are dashed green lines and the fault traces are the dashed red lines. The table shows a measured estimate of field displacement for the colluvial bar. The purple ellipse highlights a LiDAR filtering artifact that prevents an accurate LiDAR measurement.

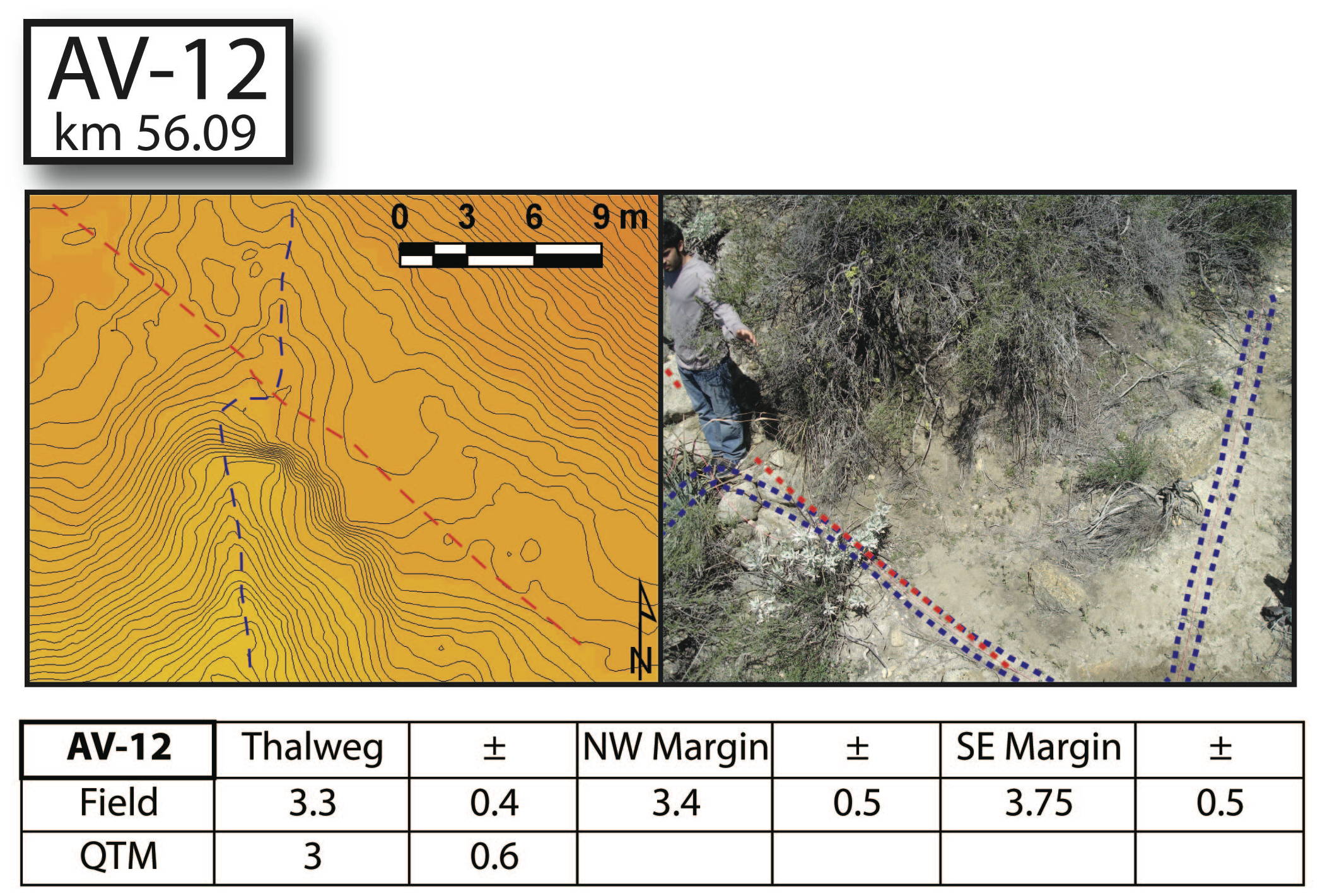

Figure S23. Annotated 0.25 m QTM topographic contour map and field photograph of AV-12 (UTM zone 11, 530389 E, 3716886 N) in Anza Valley. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margins.

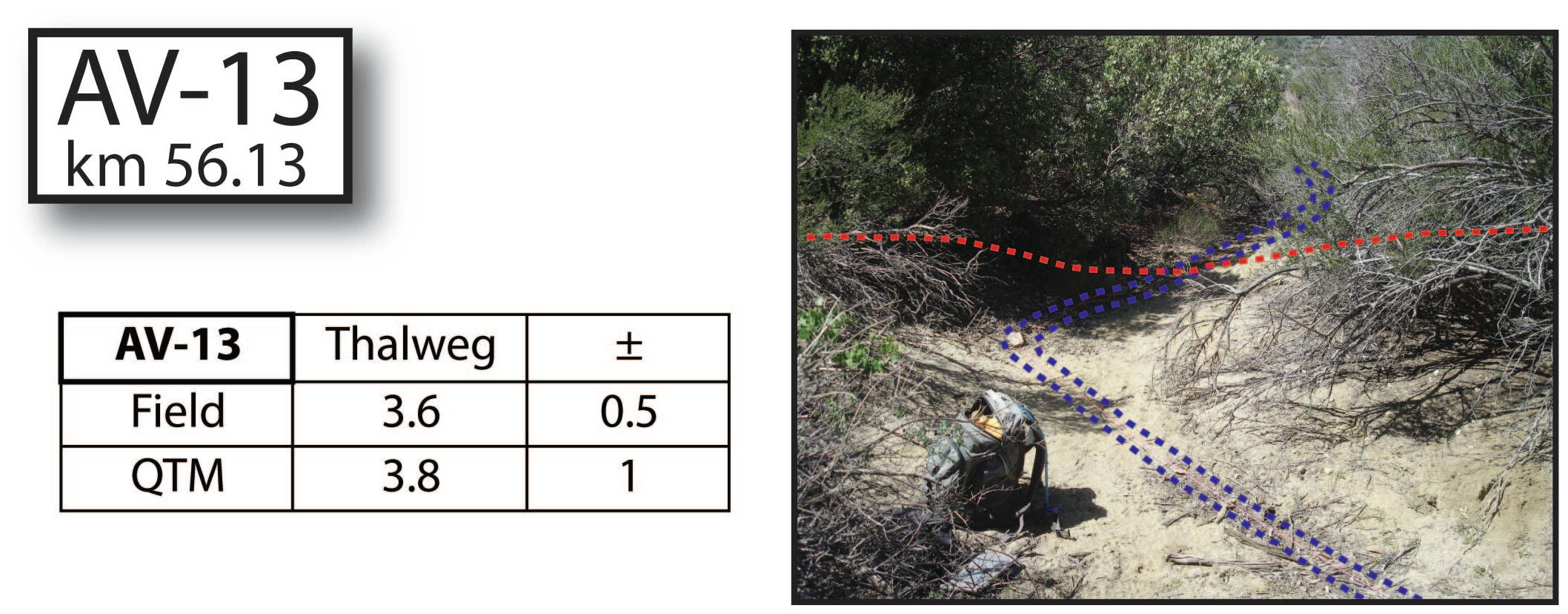

Figure S24. Annotated field photograph of AV-13 (UTM zone 11, 530357 E, 3716908 N) in Anza Valley. In the field photograph the present-day channel thalweg is shown as dashed blue lines and the fault trace is the dashed red line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg.

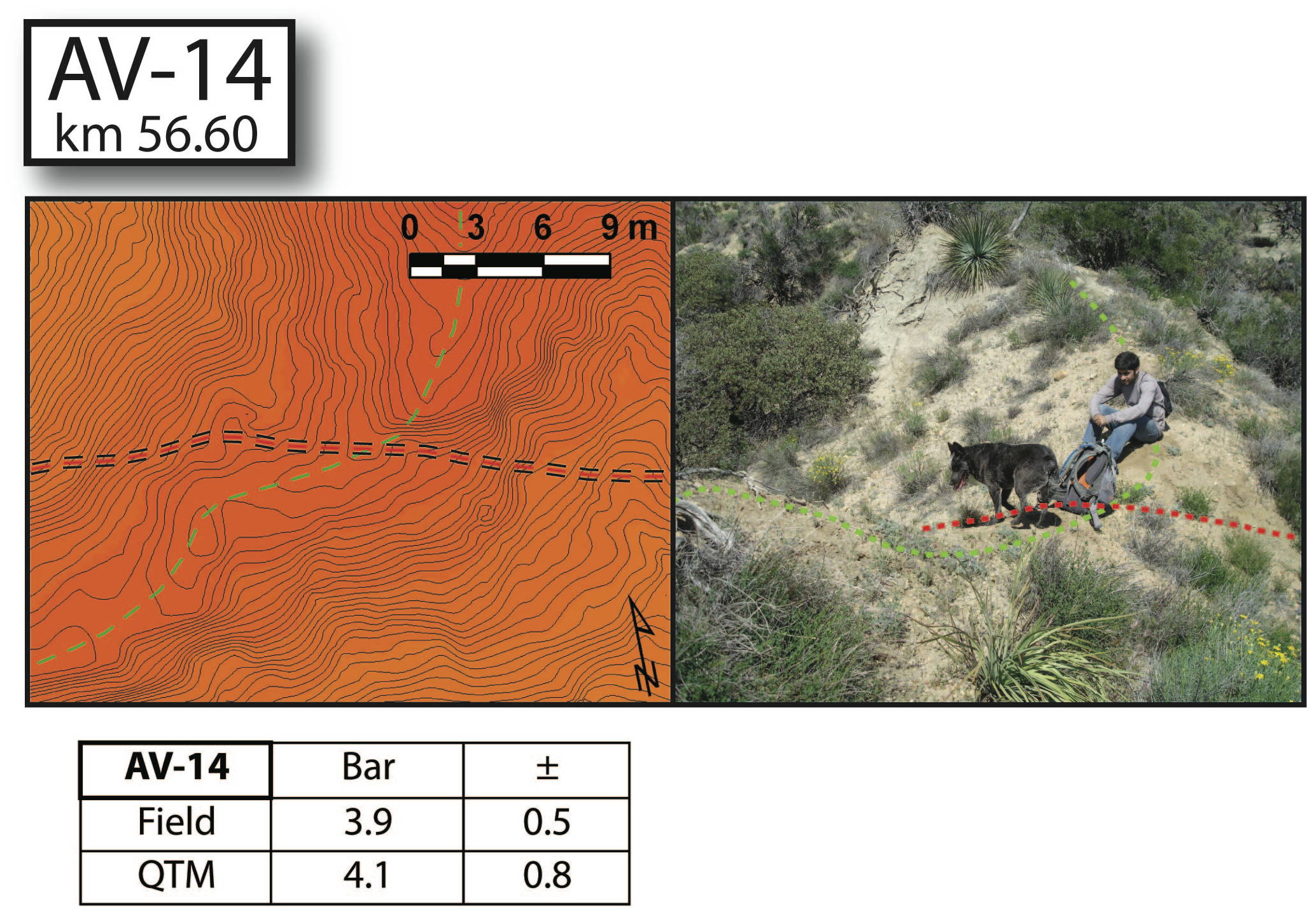

Figure S25. Annotated 0.25 m QTM topographic contour map and field photograph of AV-14 (UTM zone 11, 529970 E, 3717166 N) in Anza Valley. In the QTM image and field photograph, the present-day bar crests are shown as dashed green lines and the fault traces are the dashed red lines (outlined in blue). The table shows measured estimates of field and LiDAR displacements for the residual bar.

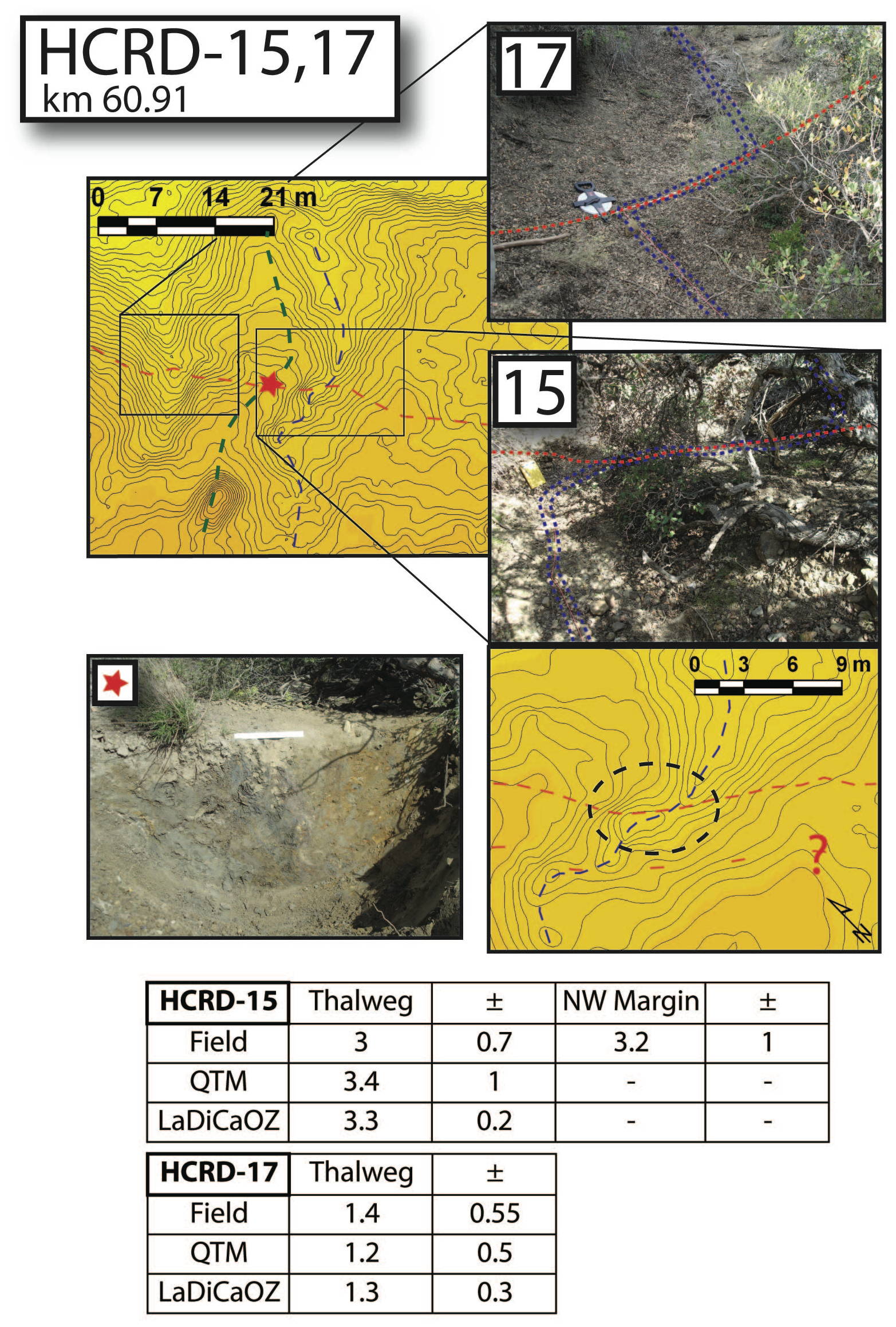

Figure S26. Annotated 0.25 m QTM topographic contour maps and field photographs of HCRD- 15 (UTM zone 11, 526634 E, 3719879 N) and HCRD-17 (UTM zone 11, 526633 E, 3719894 N) in the Horse Creek Ridge Drainage. In the QTM images and field photographs, the present-day channel thalwegs are shown as dashed blue lines, bar crests are dashed green lines, and the fault traces are the dashed red lines. The tables show measured field and LiDAR displacements for the channel thalweg and NW margin. These offsets are potentially in an area with multiple strands, so measurements are presented as minimums. The red star indicates a cleaned natural exposure of 5 cm gouge zone.

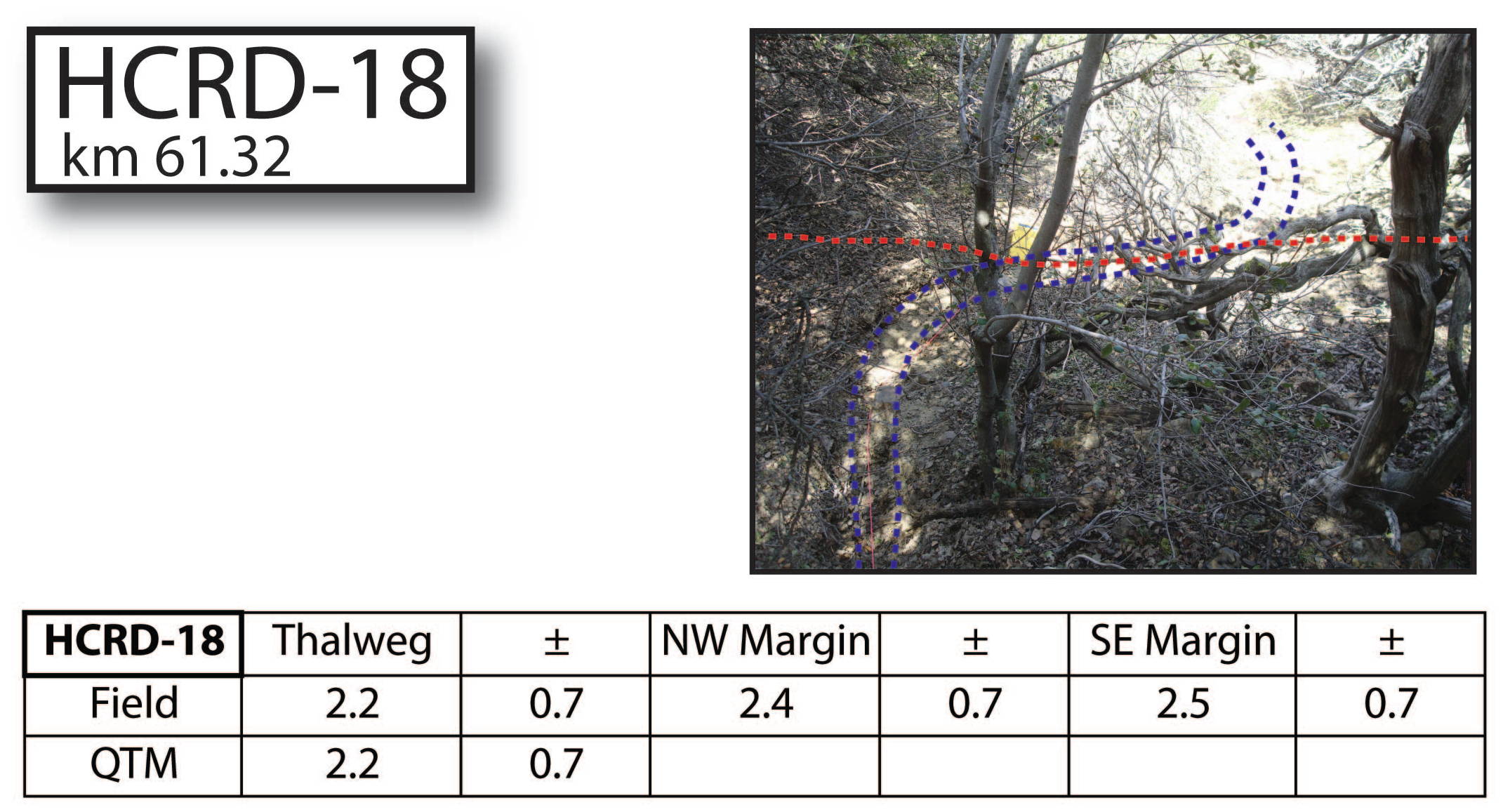

Figure S27. Annotated field photograph of HCRD-18 (UTM zone 11, 526316 E, 3720141 N) in the Horse Creek Ridge Drainage. In the field photograph the present-day channel thalweg is shown as dashed blue lines and the fault trace is the dashed red line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margins. This offset is in an area with multiple strands, so measurements are presented as minimums.

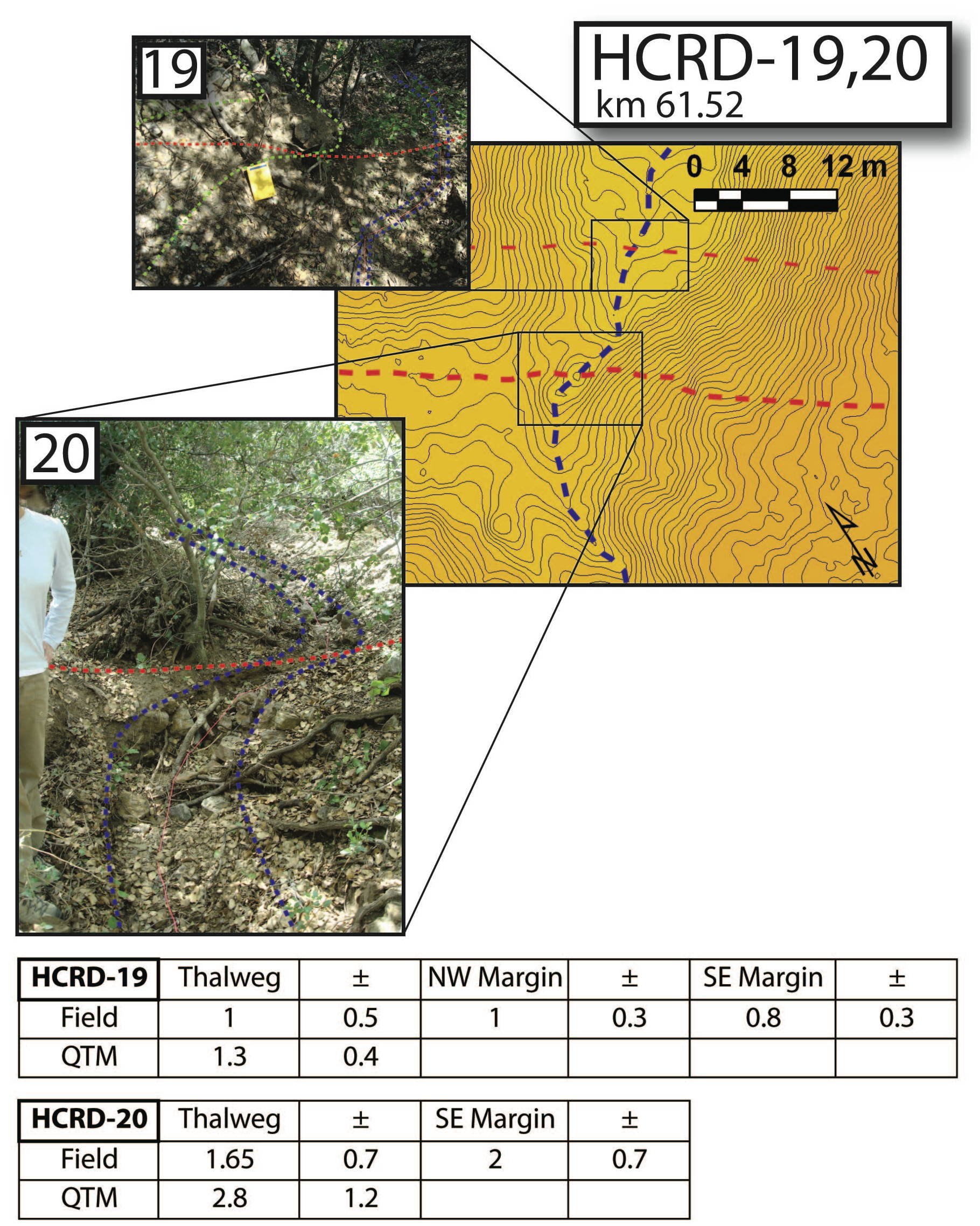

Figure S28. Annotated 0.25 m QTM topographic contour map and field photographs of HCRD- 19 (UTM zone 11, 526153 E, 3720264 N) and HCRD-20 (UTM zone 11, 526147 E, 3720264 N) in Horse Creek Ridge Drainage. In the QTM image and field photographs, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the dashed red lines. The tables show measured estimates of field and LiDAR displacements for the channel thalweg and margins. Measurements are combined for slip distribution considerations.

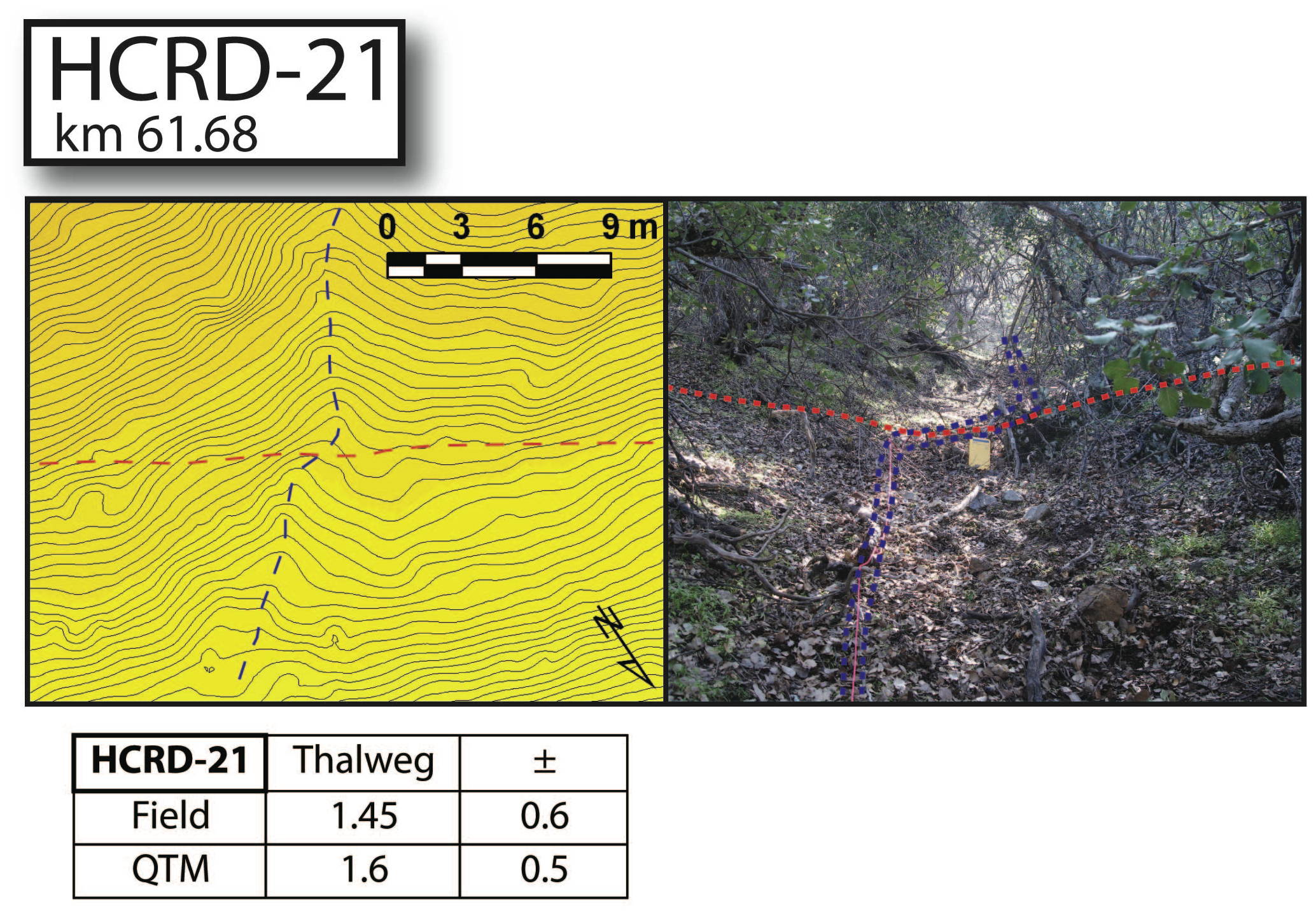

Figure S29. Annotated 0.25 m QTM topographic contour map and field photograph of HCRD-21 (UTM zone 11, 526027 E, 3720363 N) in Horse Creek Ridge Drainage. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. The tables show measured estimates of field and LiDAR displacements for the channel thalweg. This offset is in an area with multiple strands, so measurements are presented as minimums.

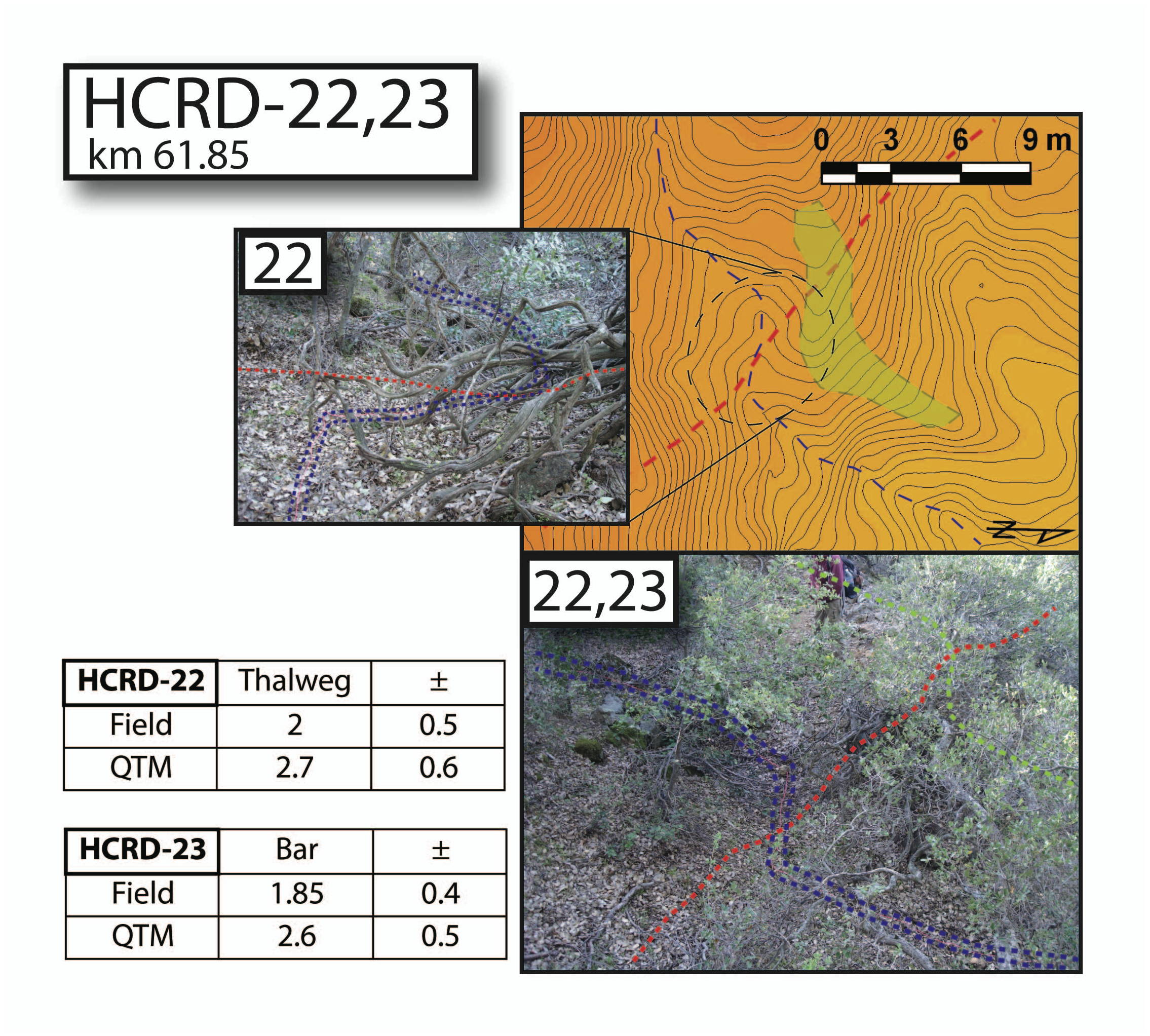

Figure S30. Annotated 0.25 m QTM topographic contour map and field photographs of HCRD- 22 (UTM zone 11, 525894 E, 3720465 N) and HCRD-23 (UTM zone 11, 525890 E, 3720468 N) in Horse Creek Ridge Drainage. In the QTM image and field photographs, the present-day channel thalwegs are shown as dashed blue lines, the bar crest is the shaded green area, and the fault traces are the dashed red lines. The tables show measured estimates of field and LiDAR displacements for the channel thalweg and neighboring bar (shown in green).

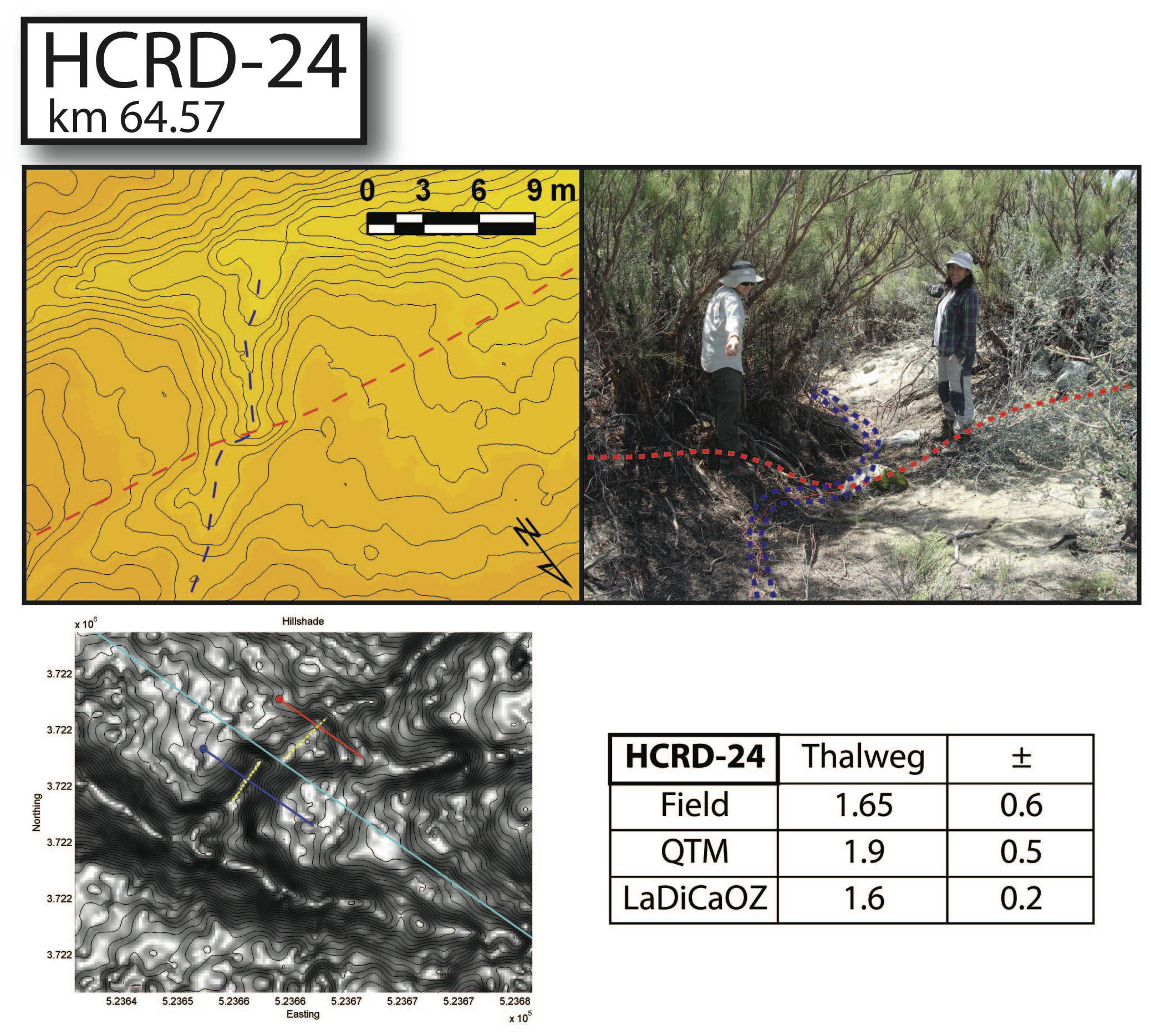

Figure S31. Annotated 0.25 m QTM topographic contour map, field photograph, and LaDiCaoz contour hillshade of HCRD-24 (UTM zone 11, 523658 E, 3721997 N) in Horse Creek Ridge Drainage. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. In the LaDiCaoz contour hillshade, the channel thalweg segments are dashed yellow lines, the cross- sectional channel profiles are defined by solid blue and red lines, and the fault trace is the solid teal line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg.

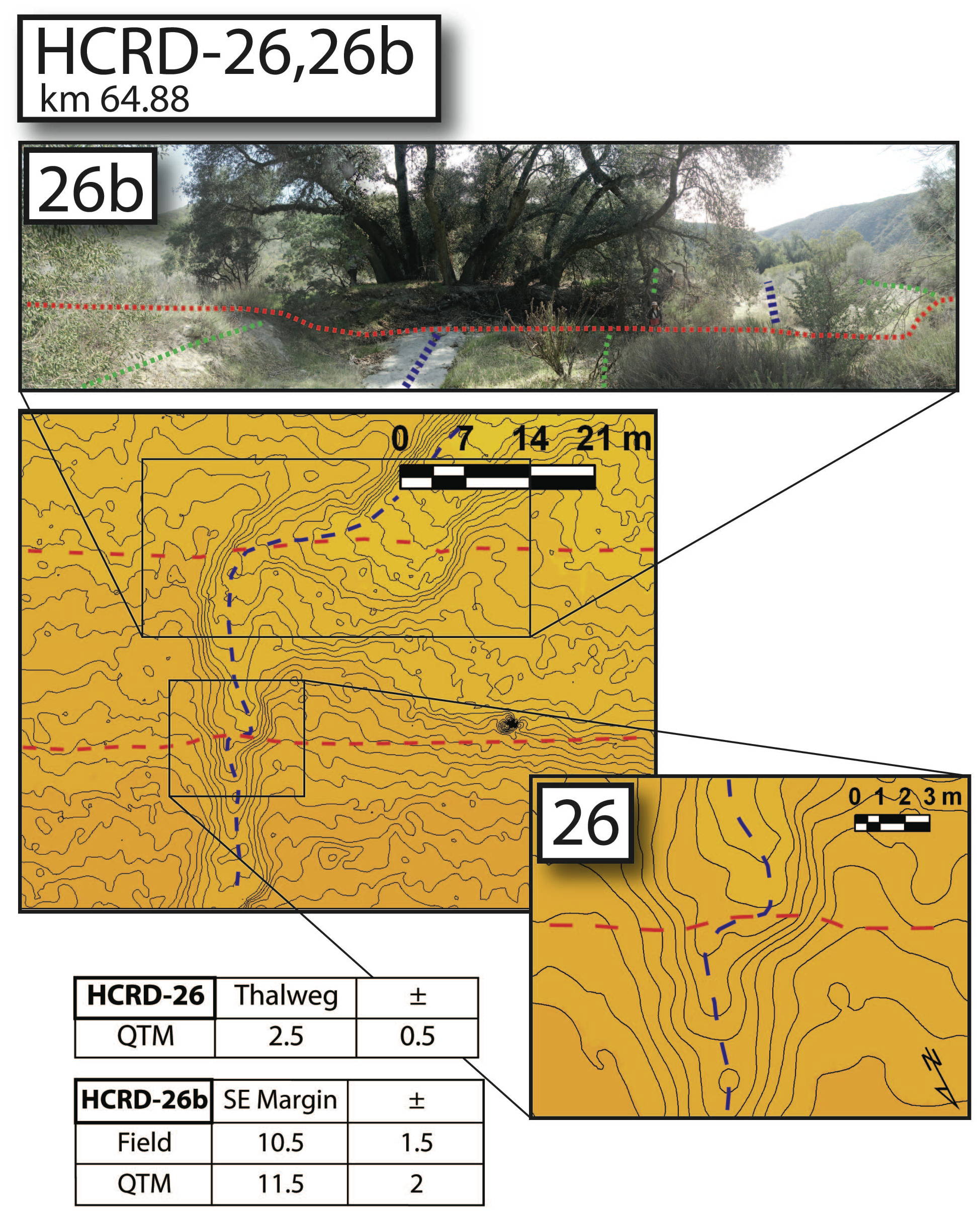

Figure S32. Annotated 0.25 m QTM topographic contour maps and field photograph of HCRD-26 (UTM zone 11, 523409 E, 3722197 N) and HCRD-26b (UTM zone 11, 523394 E, 3722181 N) in Horse Creek Ridge Drainage. In the QTM images and field photograph, the present-day channel thalwegs are shown as dashed blue lines, channel margins are dashed green lines, and the fault traces are the dashed red lines. The tables show measured estimates of field and LiDAR displacements for the channel thalweg in HCRD-26 and SE margin in HCRD-26b.

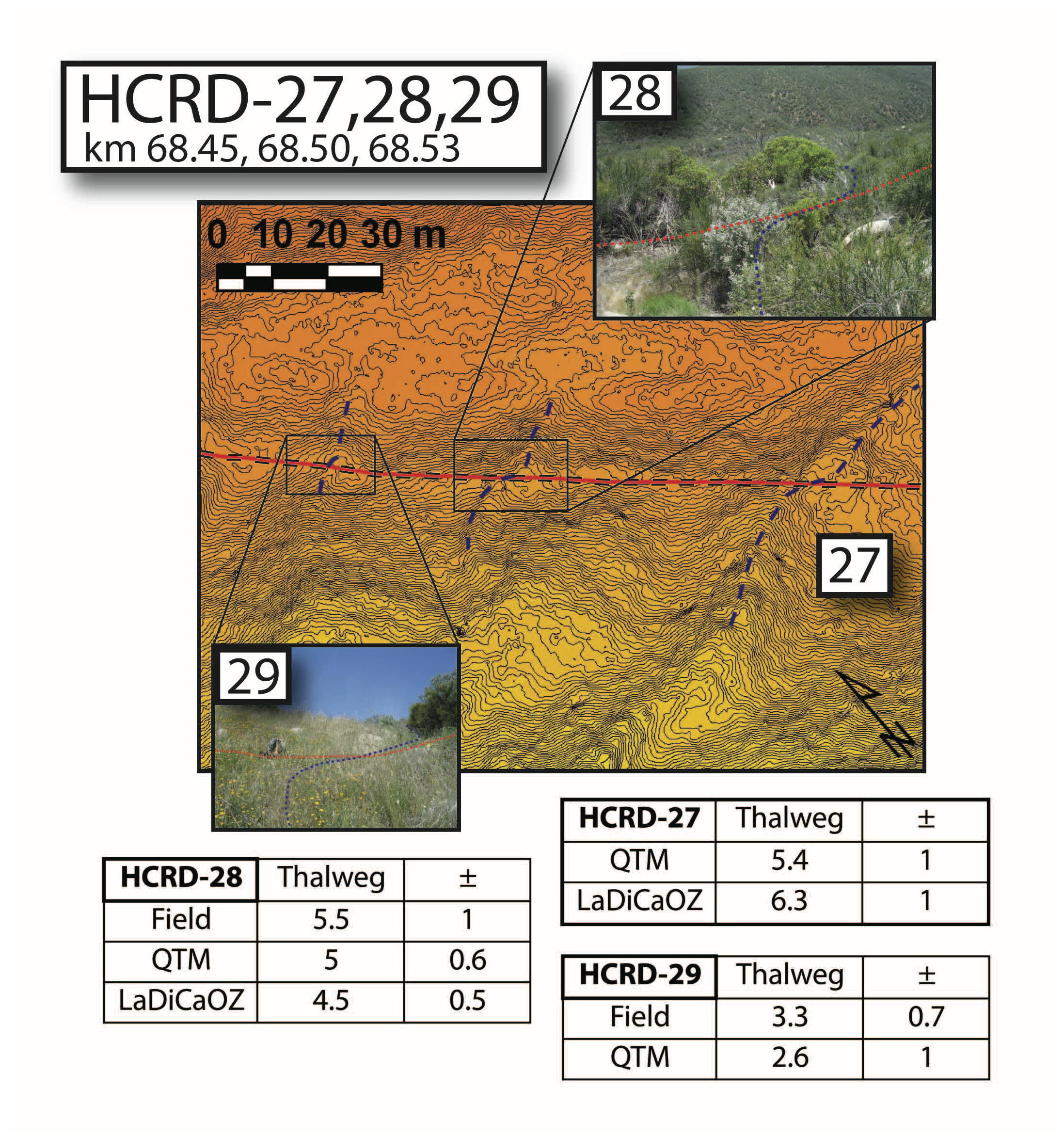

Figure S33. Annotated 0.25 m QTM topographic contour map and field photographs of HCRD- 27 (UTM zone 11, 520608 E, 3724372 N), HCRD-28 (UTM zone 11, 520566 E, 3724409 N), and HCRD-29 (UTM zone 11, 520541 E, 3724432 N) on Rouse Hill. In the QTM image and field photographs, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. The tables show measured estimates of field and LiDAR displacements for the channel thalwegs.

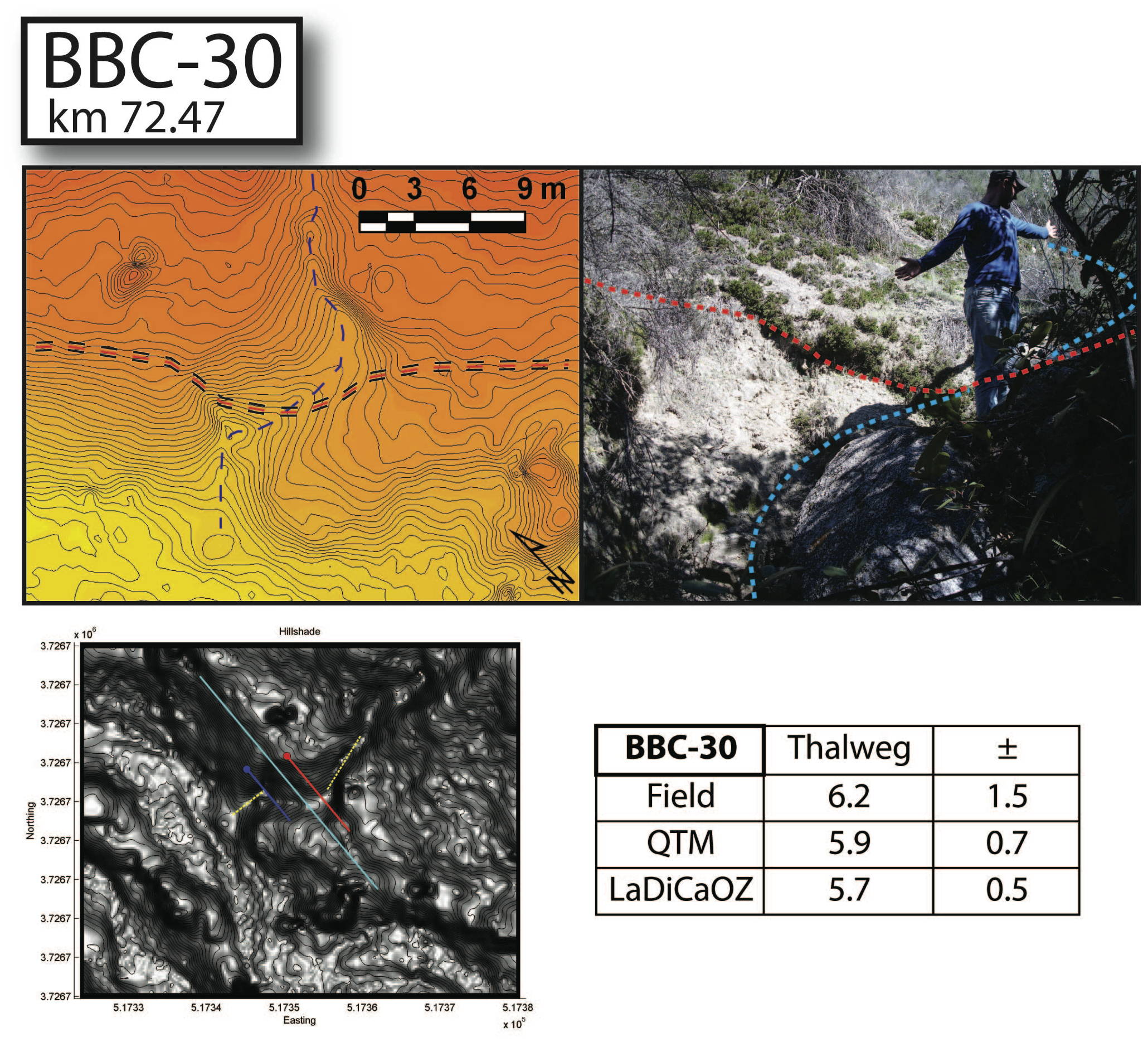

Figure S34. Annotated 0.25 m QTM topographic contour map, field photograph, and LaDiCaoz contour hillshade of BBC-30 (UTM zone 11, 517349 E, 3726701 N) in Blackburn Canyon. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. In the LaDiCaoz contour hillshade, the channel thalweg segments are dashed yellow lines, the cross- sectional channel profiles are defined by solid blue and red lines, and the fault trace is the solid teal line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg.

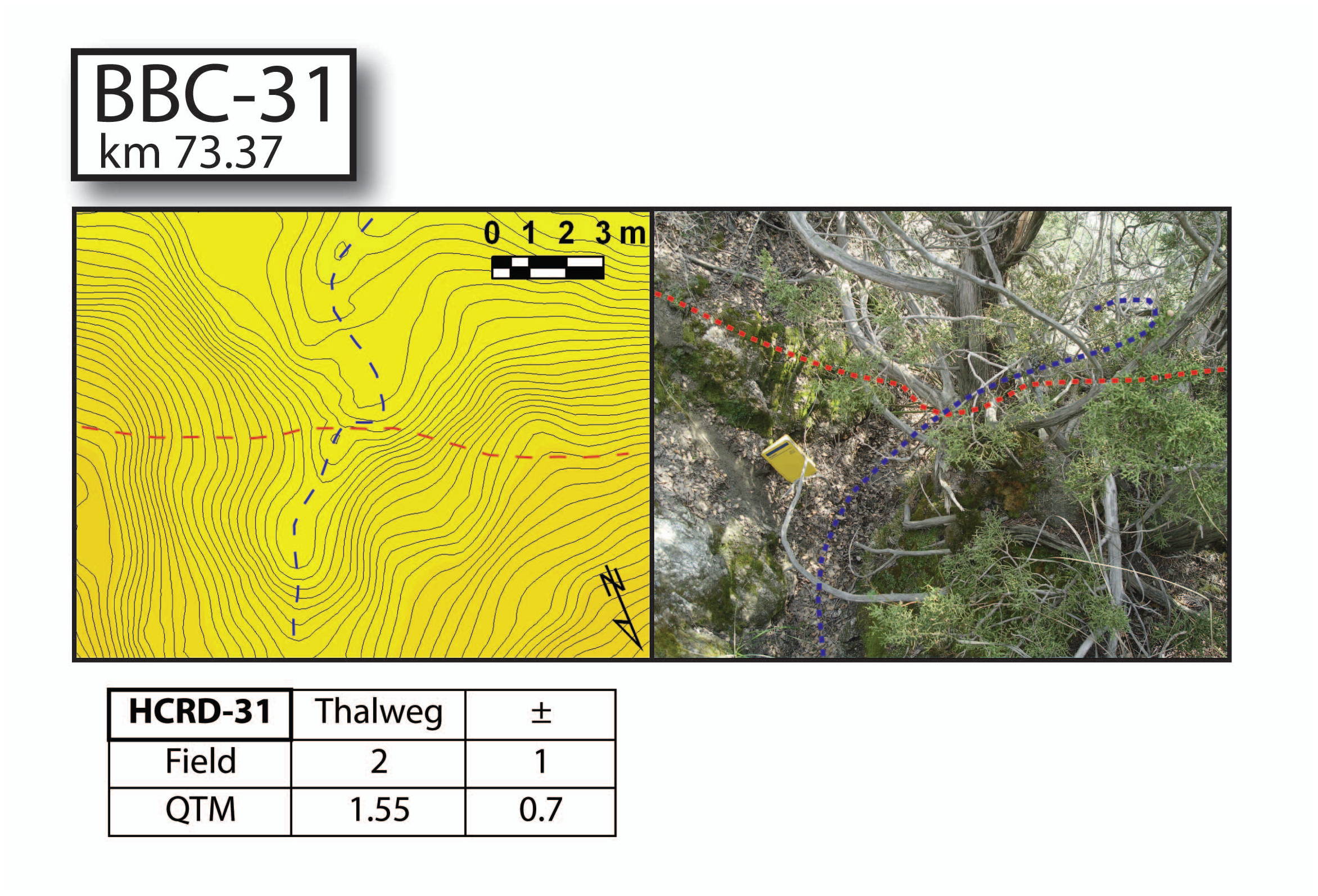

Figure S35. Annotated 0.25 m QTM topographic contour map and field photograph of BBC-31 (UTM zone 11, 516579 E, 3727162 N) in Blackburn Canyon. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. The table shows measured estimates of field and LiDAR displacements for the channel thalweg.

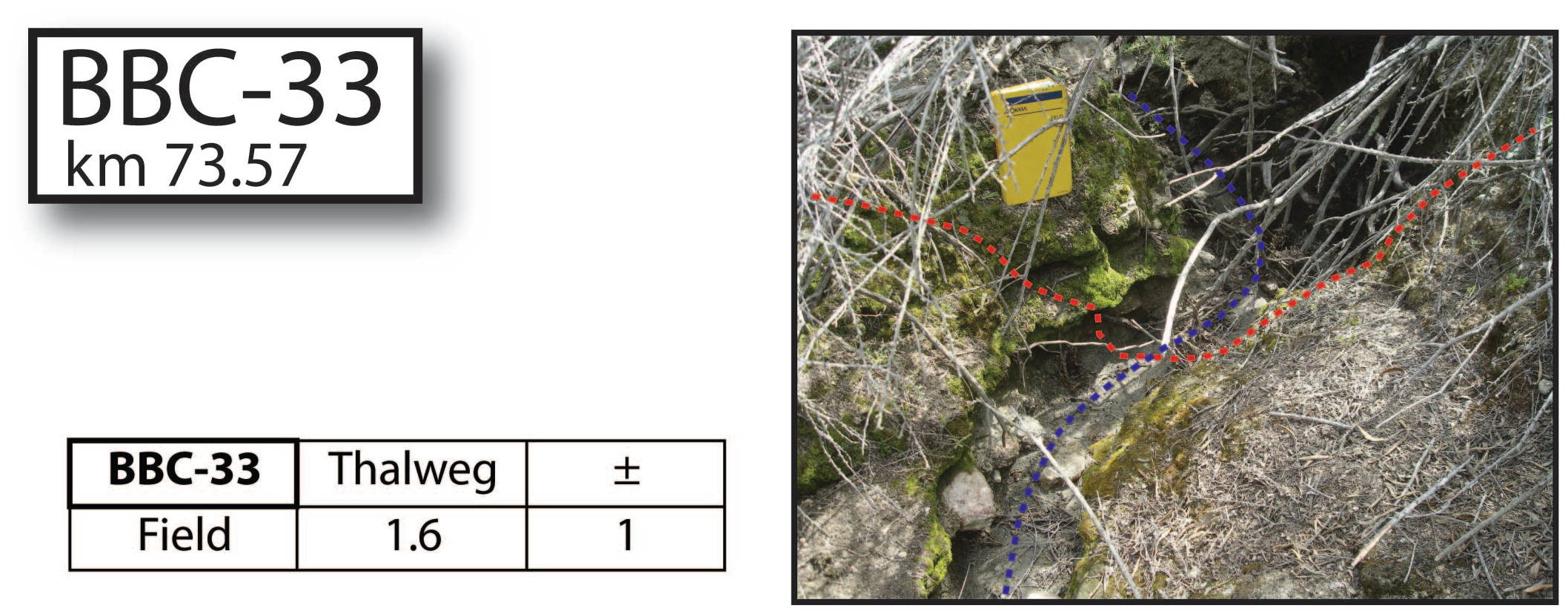

Figure S36. Annotated field photograph of BBC-33 (UTM zone 11, 516390 E, 3727228 N) in Blackburn Canyon. In the field photograph the present-day channel thalweg is shown as a dashed blue line and the fault trace is the dashed red line. The table shows a measured estimate of field displacement for the channel thalweg.

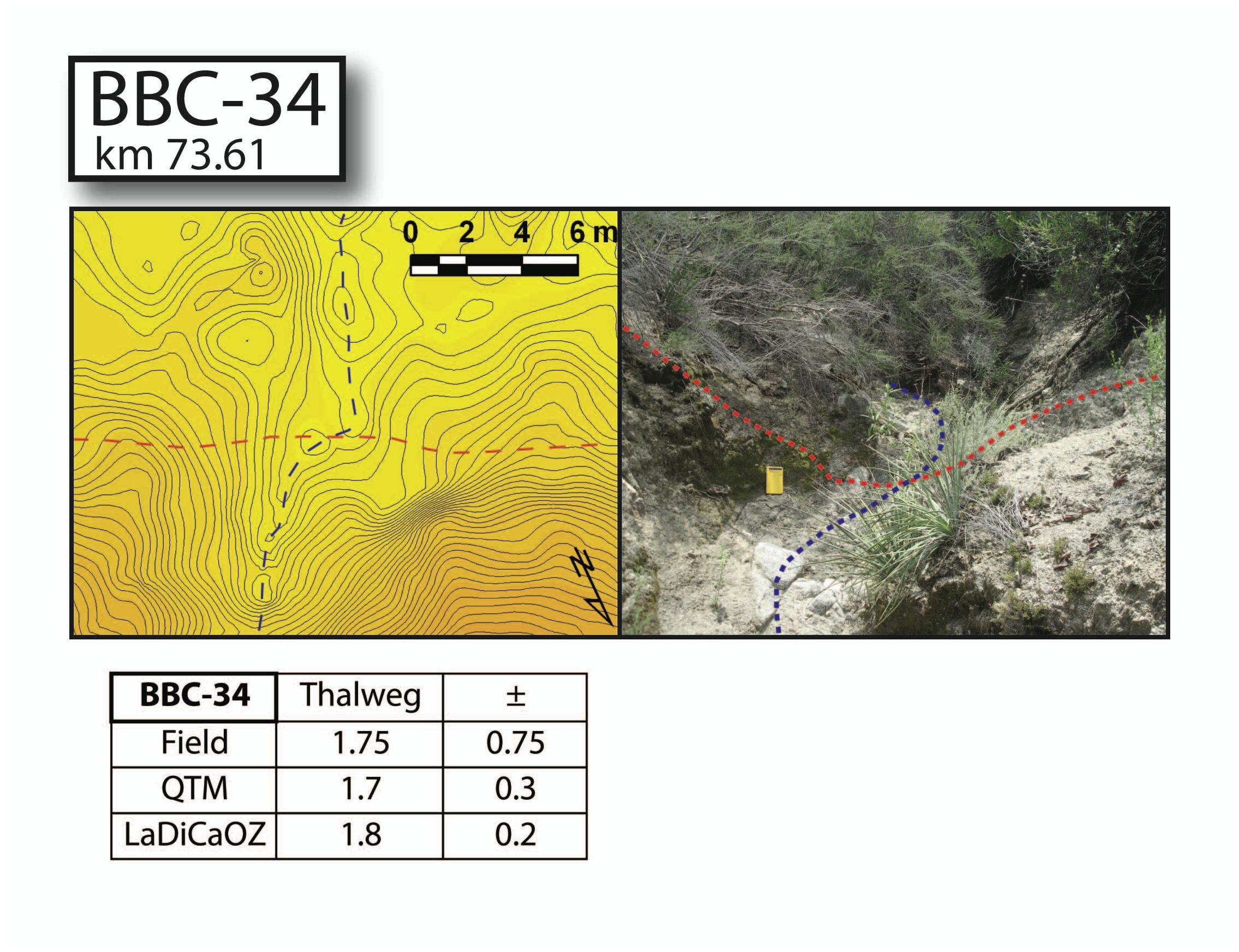

Figure S37. Annotated 0.25 m QTM topographic contour map and field photograph of BBC-34 (UTM zone 11, 516360 E, 3727246 N) in Blackburn Canyon. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. The table shows measured estimates of field and LiDAR displacements for the channel thalweg.

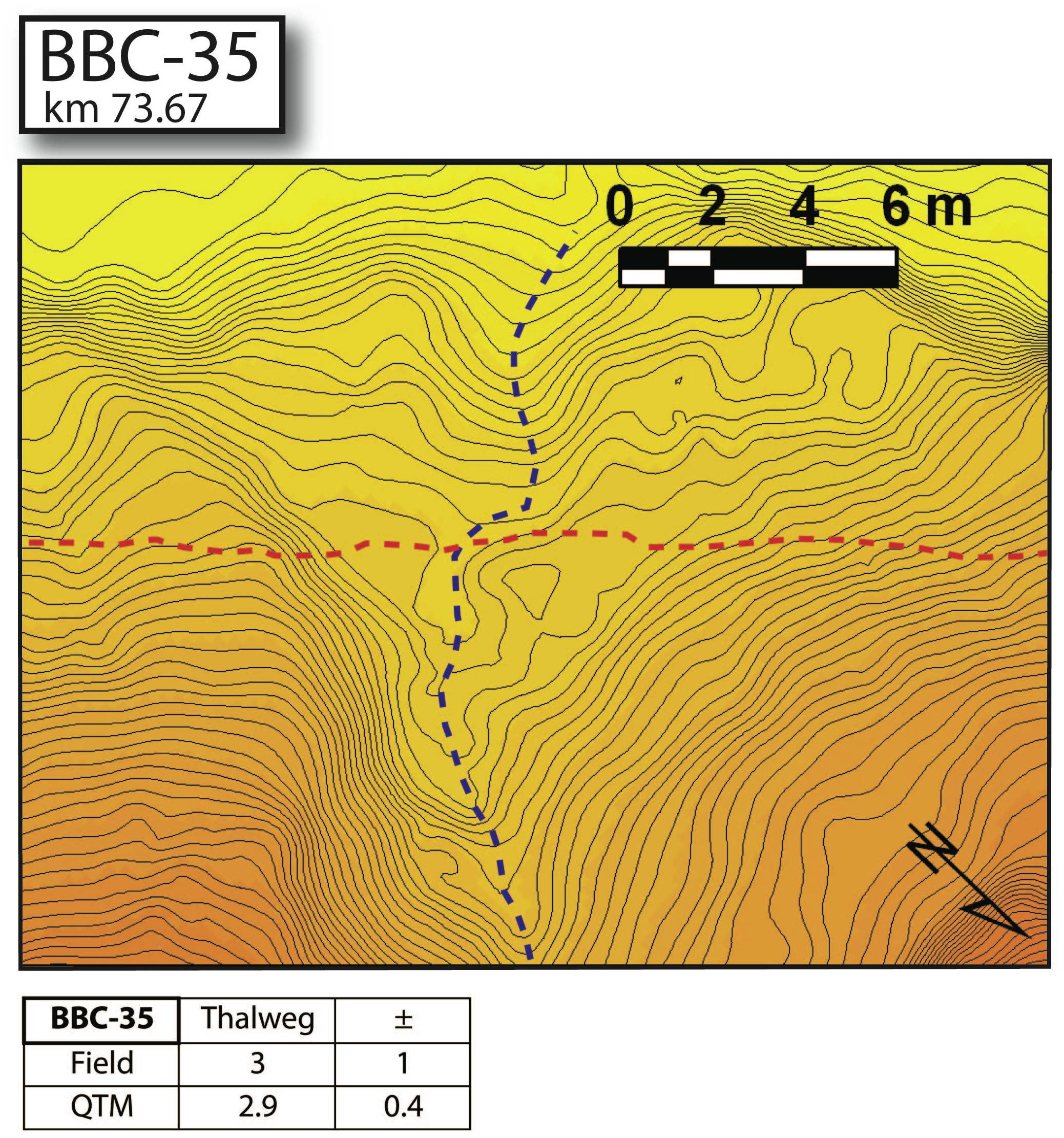

Figure S38. Annotated 0.25 m QTM topographic contour map of BBC-35 (UTM zone 11, 516310 E, 3727274 N) in Blackburn Canyon. In the QTM image the present-day channel thalweg is shown as a dashed blue line and the fault trace is the dashed red line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg.

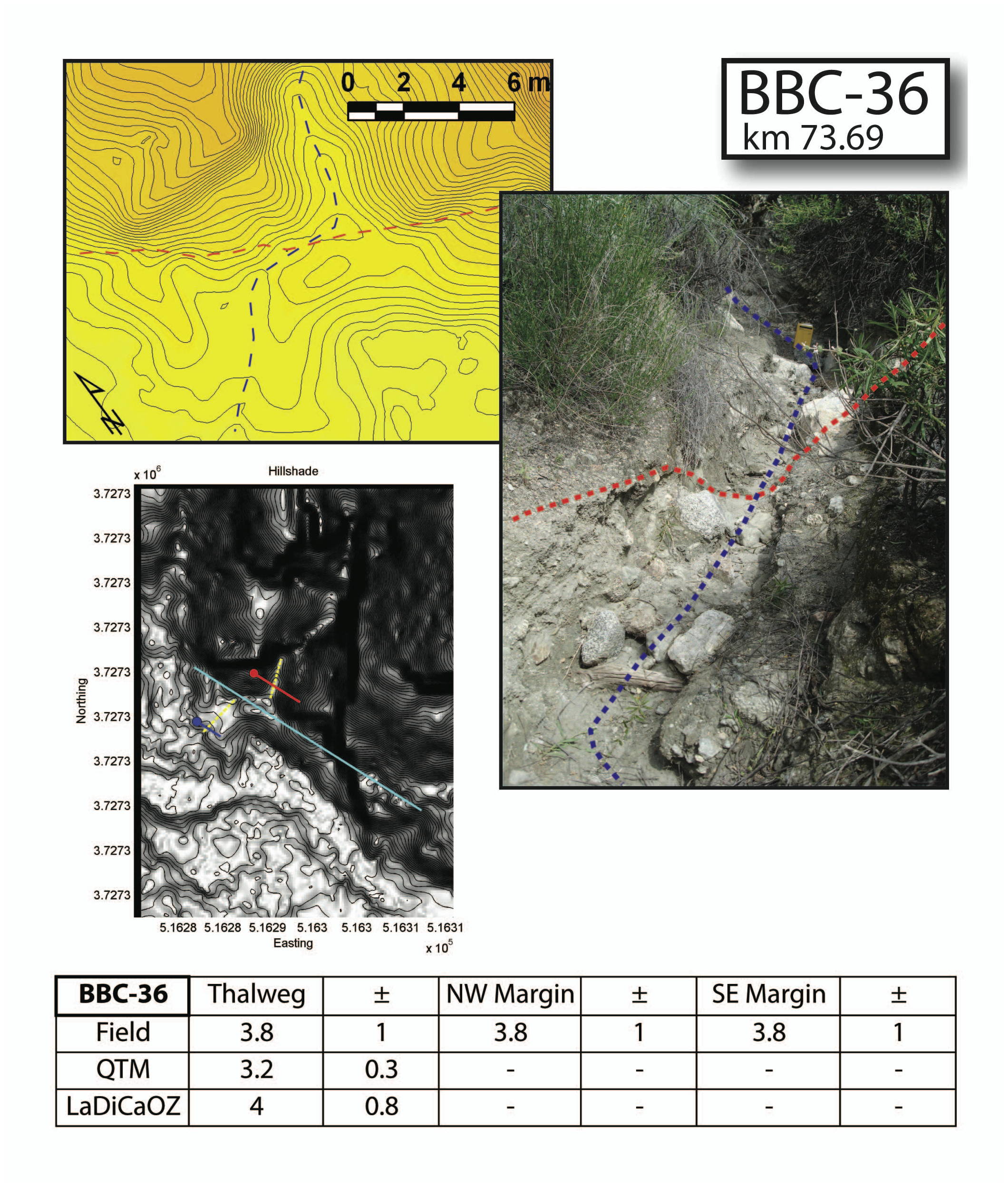

Figure S39. Annotated 0.25 m QTM topographic contour map, field photograph, and LaDiCaoz contour hillshade of BBC-36 (UTM zone 11, 516288 E, 3727287 N) in Blackburn Canyon. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. In the LaDiCaoz contour hillshade, the channel thalweg segments are dashed yellow lines, the cross- sectional channel profiles are defined by solid blue and red lines, and the fault trace is the solid teal line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margins.

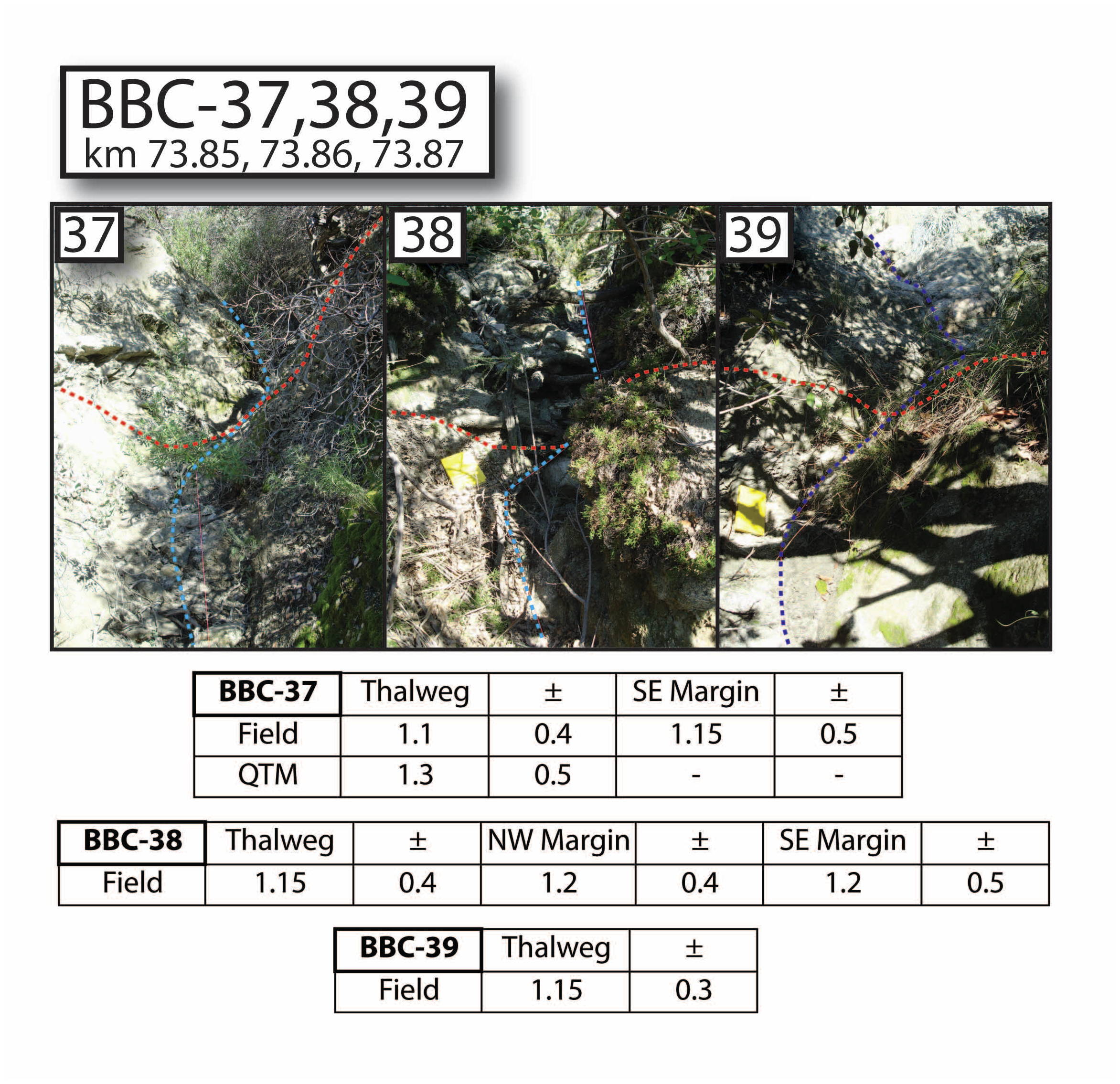

Figure S40. Annotated field photographs of BBC-37 (UTM zone 11, 516154 E, 3727384 N), BBC- 38 (UTM zone 11, 516149 E, 3727388 N), and BBC-39 (UTM zone 11, 516142 E, 3727393 N) in Blackburn Canyon. In the field photographs the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. The tables show measured estimates of field and LiDAR displacements for multiple features.

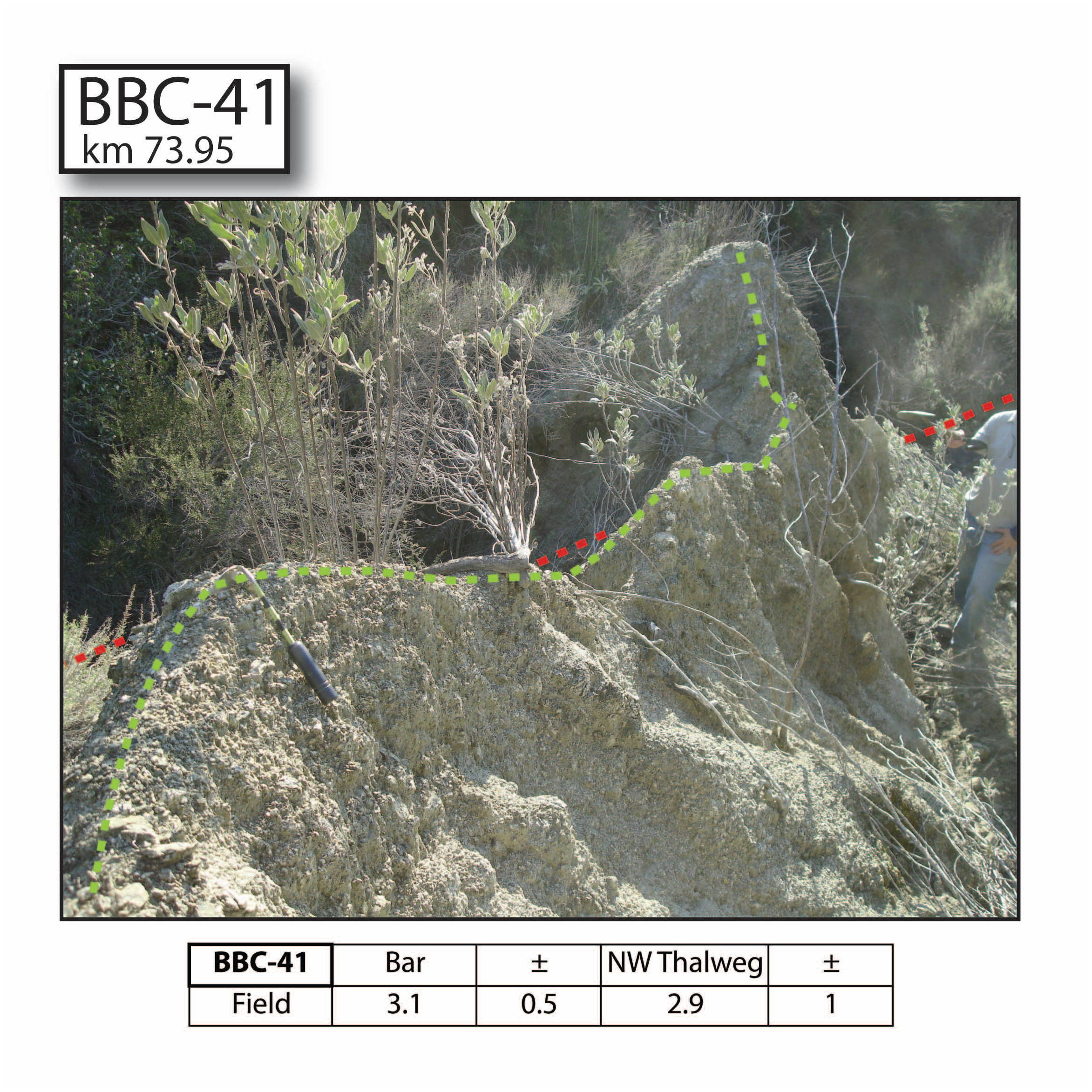

Figure S41. Annotated field photograph of BBC-41 (UTM zone 11, 516069 E, 3727433 N) in Blackburn Canyon. In the field photograph the present-day bar crest is a dashed green lines and the fault traces is the dashed red line. The table shows measured estimates of field displacement for the residual bar and neighboring channel thalweg.

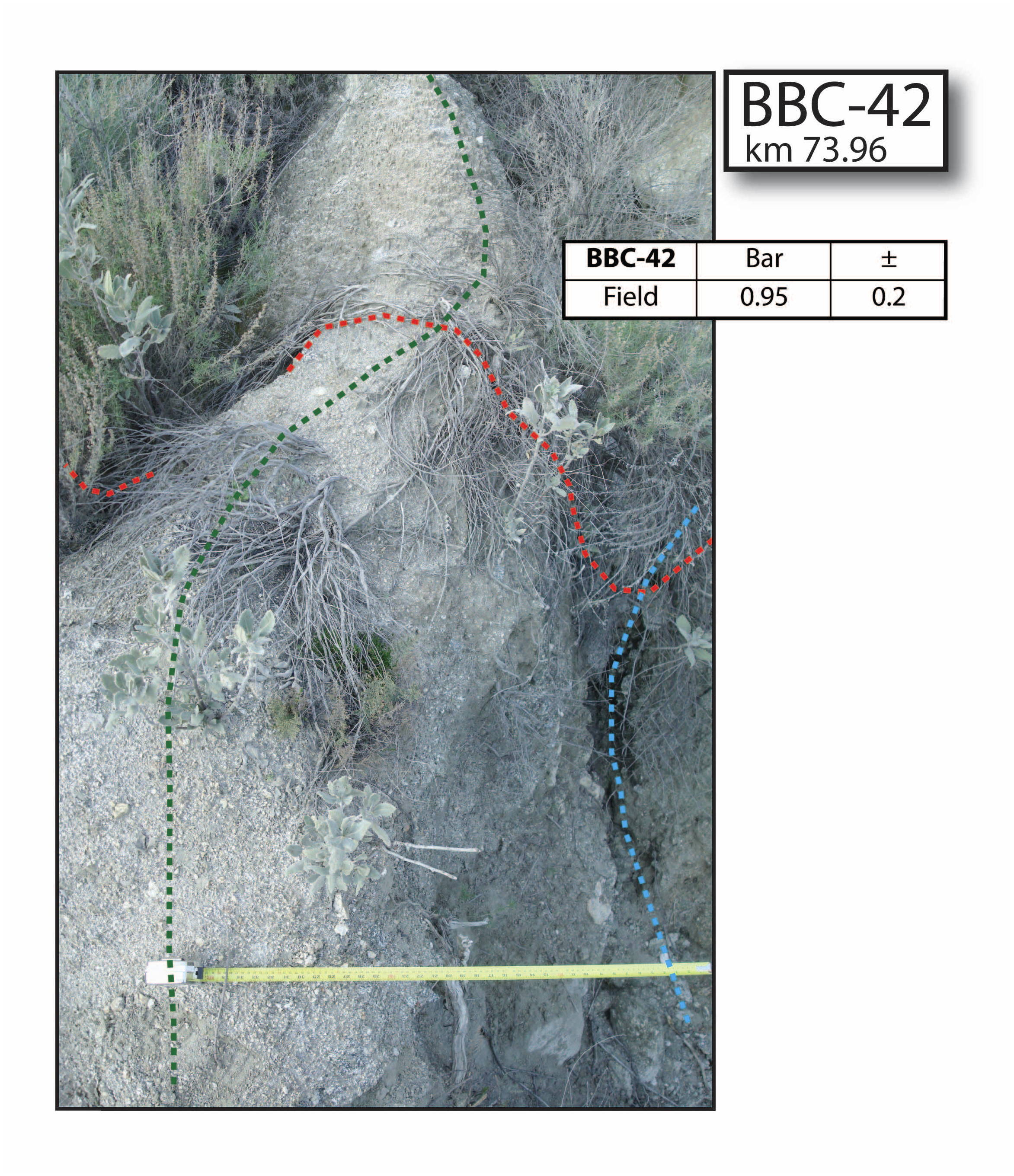

Figure S42. Annotated field photograph of BBC-42 (UTM zone 11, 516063 E, 3727436 N) in Blackburn Canyon. In the field photograph the present-day channel thalweg is shown as a dashed blue line, the bar crest is the dashed green line, and the fault trace is the dashed red line. The table shows measured estimate of field displacement for the residual bar. This feature is located ~10 m from a 3 m offset (BBC-41). Both features are basally located on the same lithologic contact that defines the active fault trace.

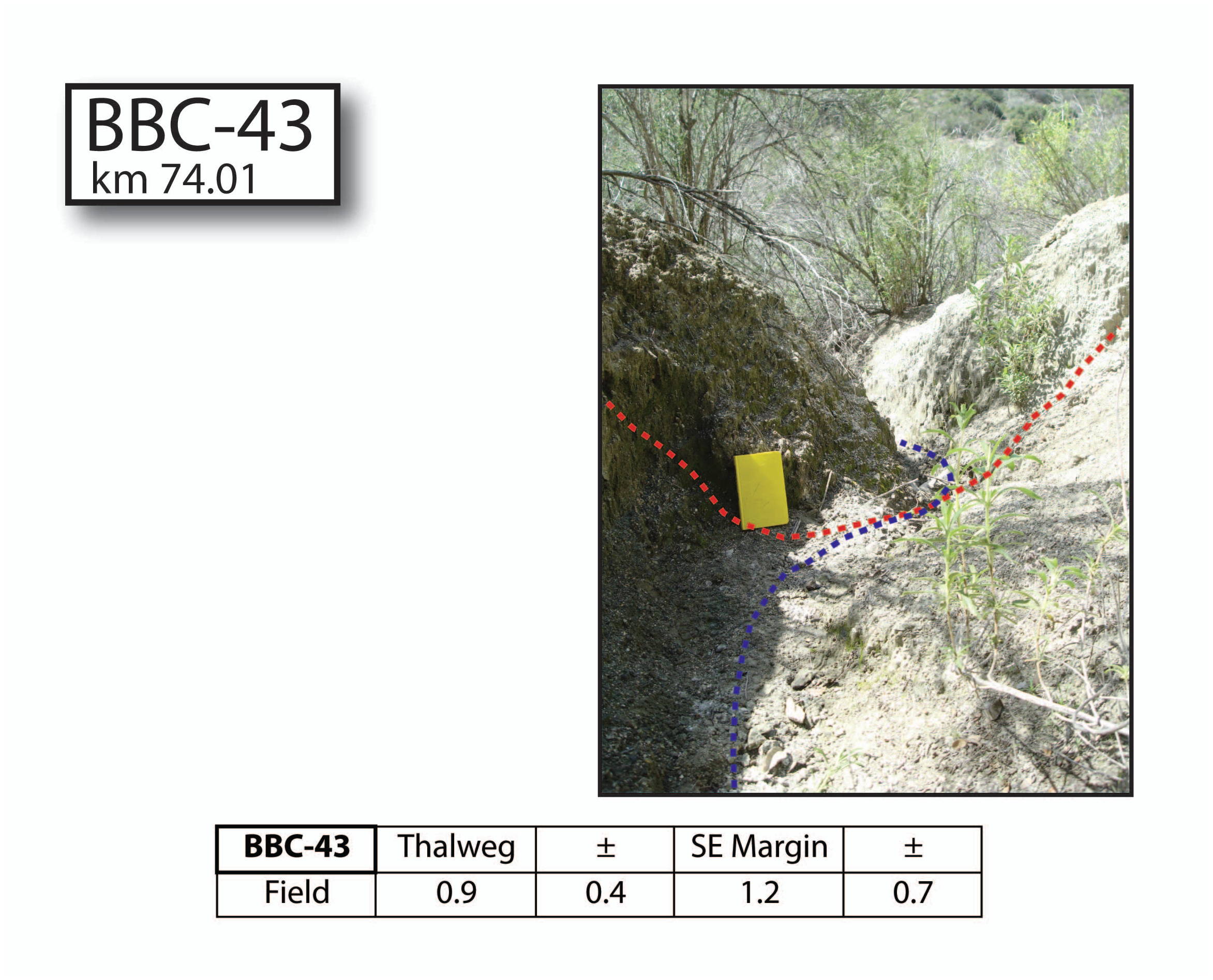

Figure S43. Annotated field photograph of BBC-43 (UTM zone 11, 516026 E, 3727462 N) in Blackburn Canyon. In the field photograph the present-day channel thalweg is shown as a dashed blue line and the fault trace is the dashed red line. The table shows measured estimates of field displacement for the channel thalweg and southeast margin.

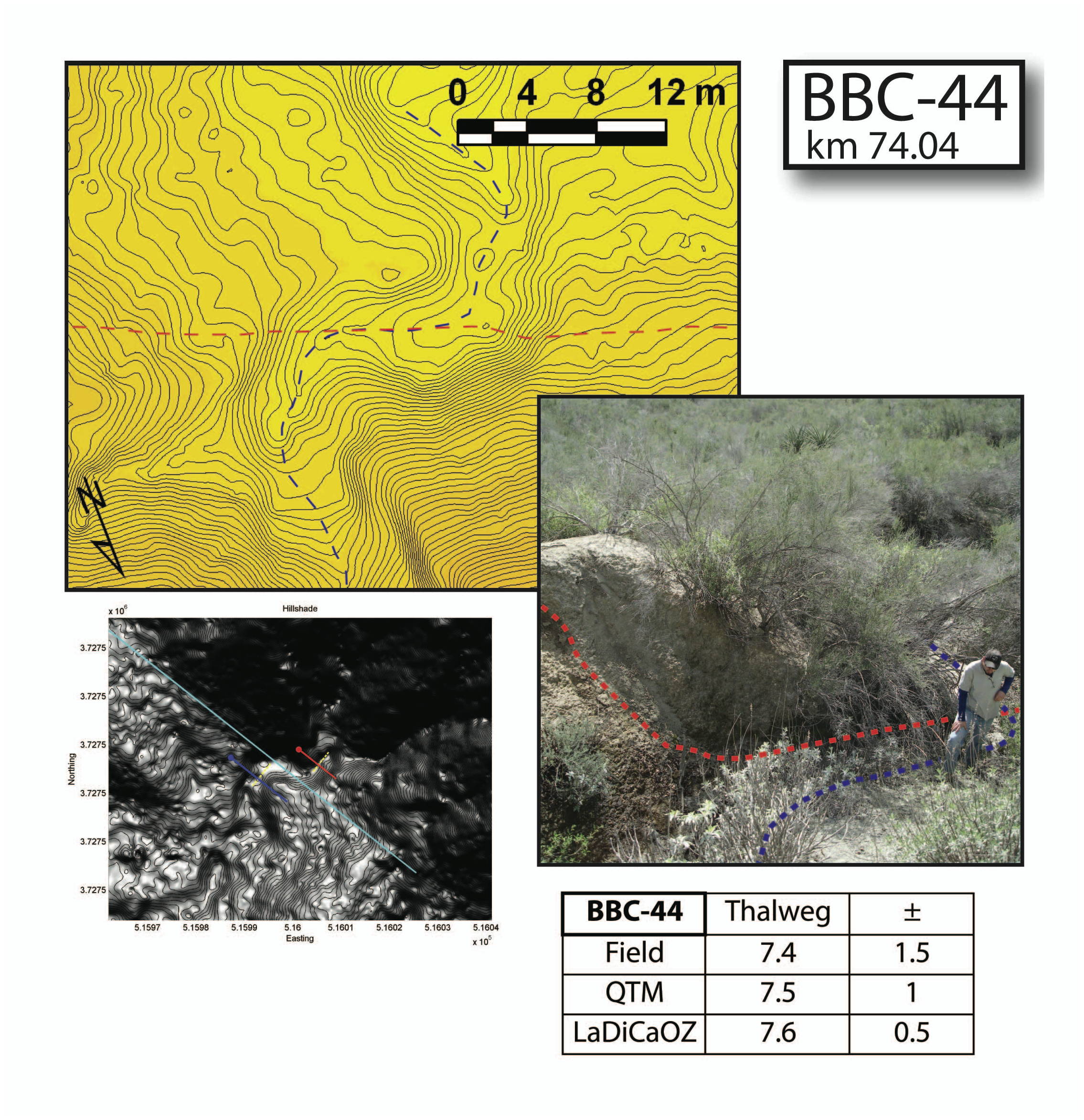

Figure S44. Annotated 0.25 m QTM topographic contour map, field photograph, and LaDiCaoz contour hillshade of BBC-44 (UTM zone 11, 516000 E, 3727477 N) in Blackburn Canyon. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. In the LaDiCaoz contour hillshade, the channel thalweg segments are dashed yellow lines, the cross- sectional channel profiles are defined by solid blue and red lines, and the fault trace is the solid teal line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg.

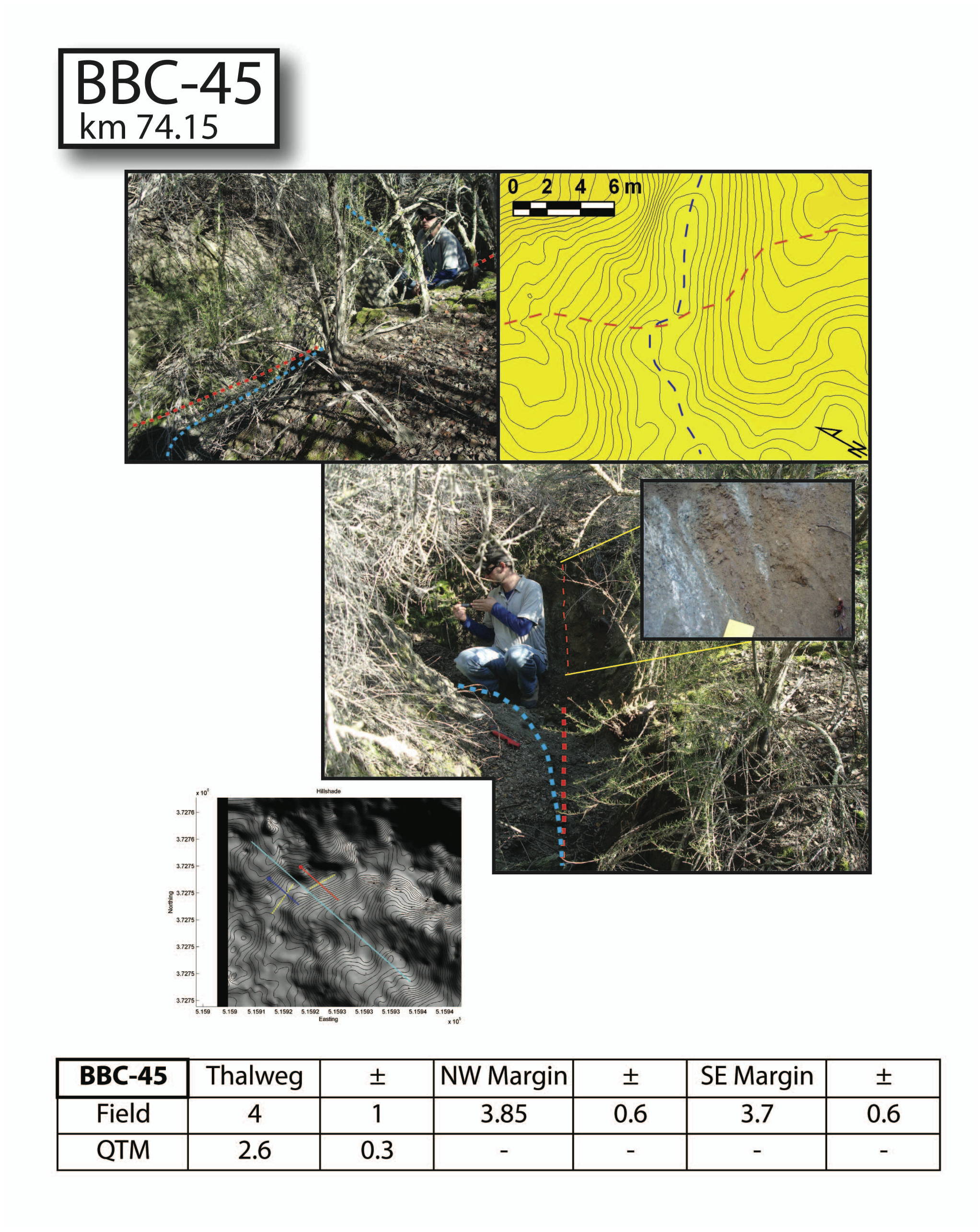

Figure S45. Annotated 0.25 m QTM topographic contour map, field photographs, and LaDiCaoz contour hillshade of BBC-45 (UTM zone 11, 515916 E, 3727548 N) in Blackburn Canyon. In the QTM image and field photographs, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. In the LaDiCaoz contour hillshade, the channel thalweg segments are dashed yellow lines, the cross- sectional channel profiles are defined by solid blue and red lines, and the fault trace is the solid teal line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and margins. Photographic insert shows juxtaposition of banded gneiss (pKm) and mudstone.

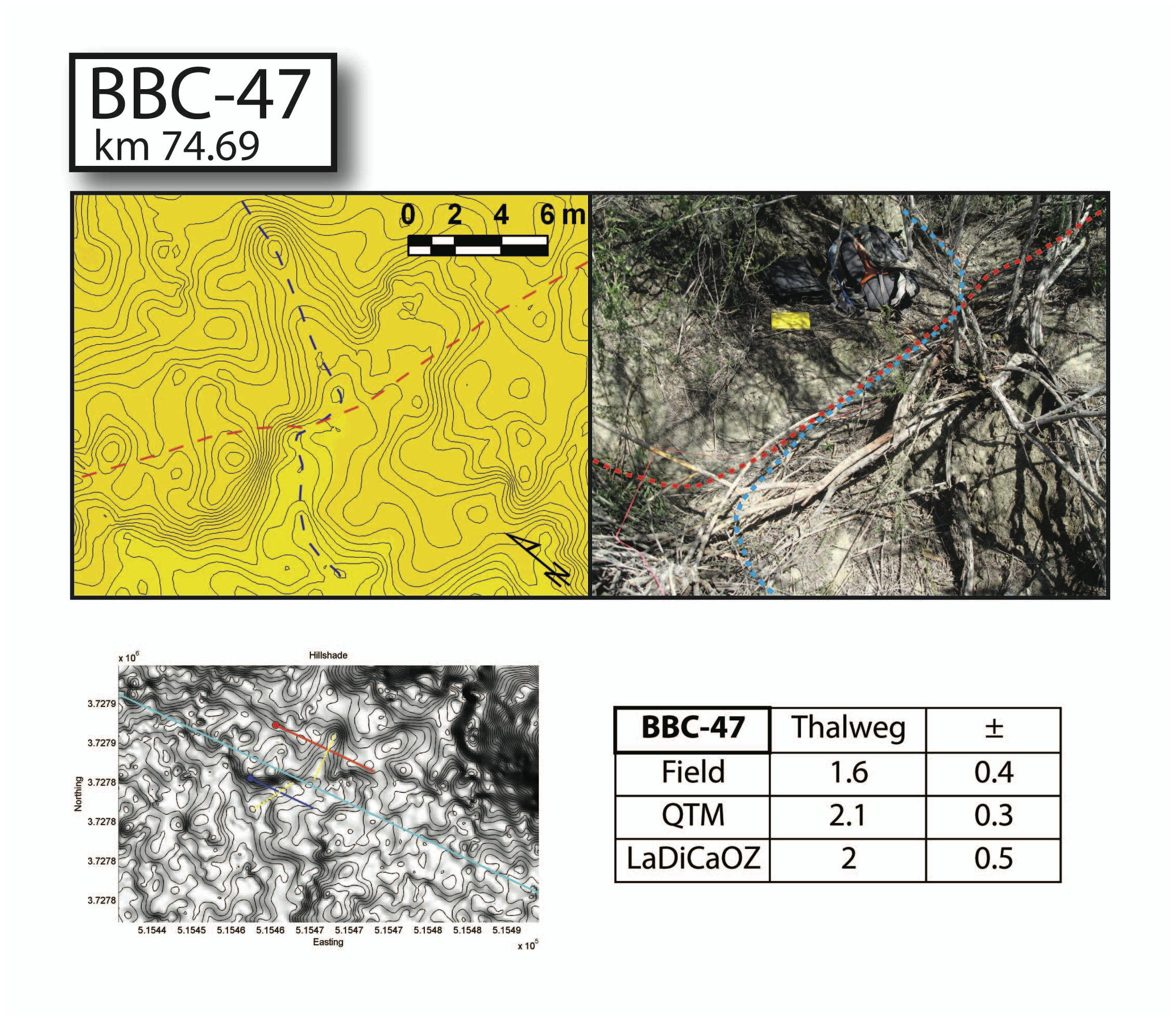

Figure S46. Annotated 0.1 m QTM topographic contour map, field photograph, and LaDiCaoz contour hillshade of BBC-47 (UTM zone 11, 515463 E, 3727844 N) in Blackburn Canyon. In the QTM image and field photograph, the present-day channel thalwegs are shown as dashed blue lines and the fault traces are the dashed red lines. In the LaDiCaoz contour hillshade, the channel thalweg segments are dashed yellow lines, the cross- sectional channel profiles are defined by solid blue and red lines, and the fault trace is the solid teal line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg.

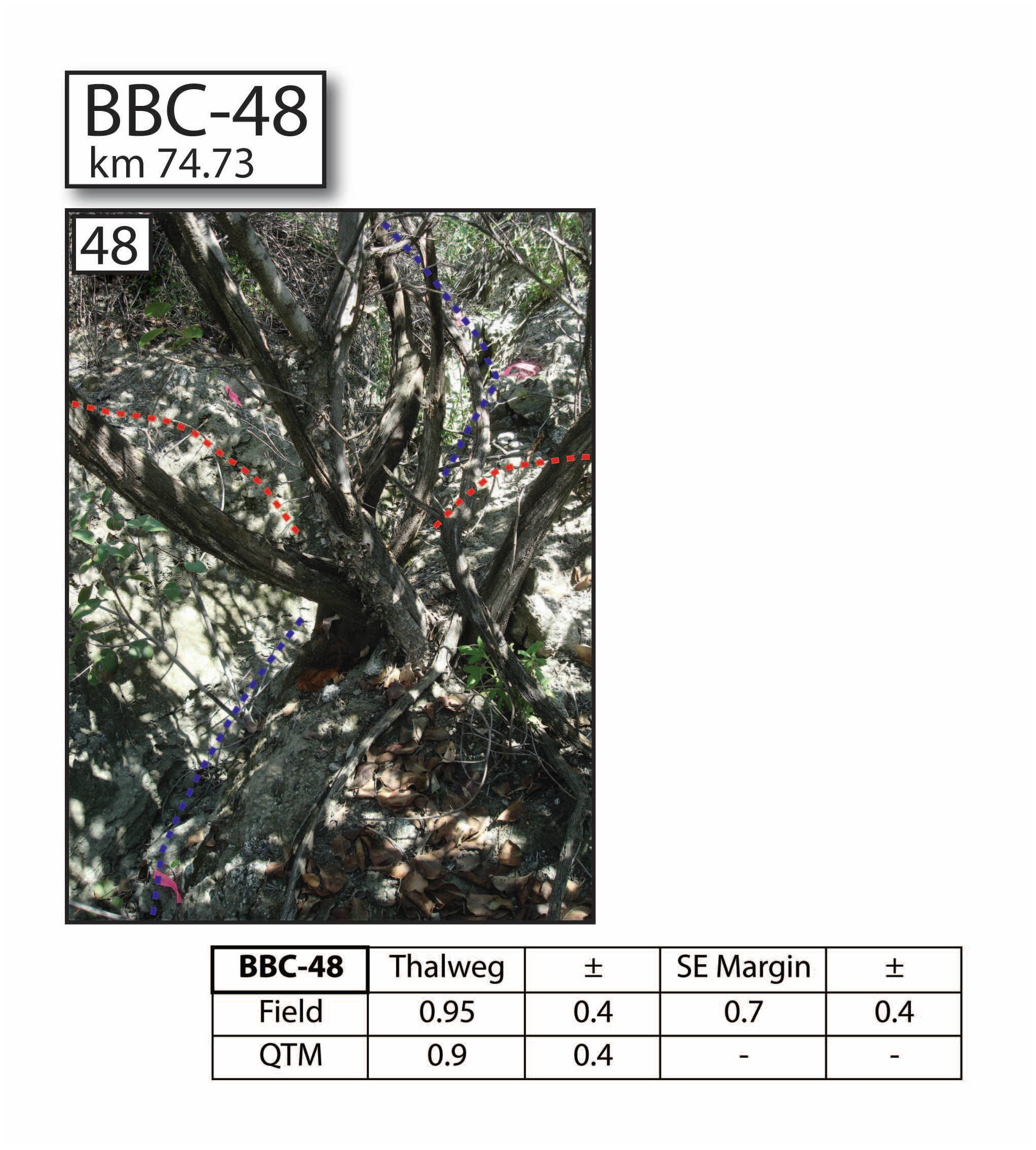

Figure S47. Annotated field photograph of BBC-48 (UTM zone 11, 515433 E, 3727868 N) in Blackburn Canyon. In the field photograph the present-day channel thalweg is shown as a dashed blue line and the fault trace is the dashed red line. The table shows measured estimates of field and LiDAR displacements for the channel thalweg and southeast margin.

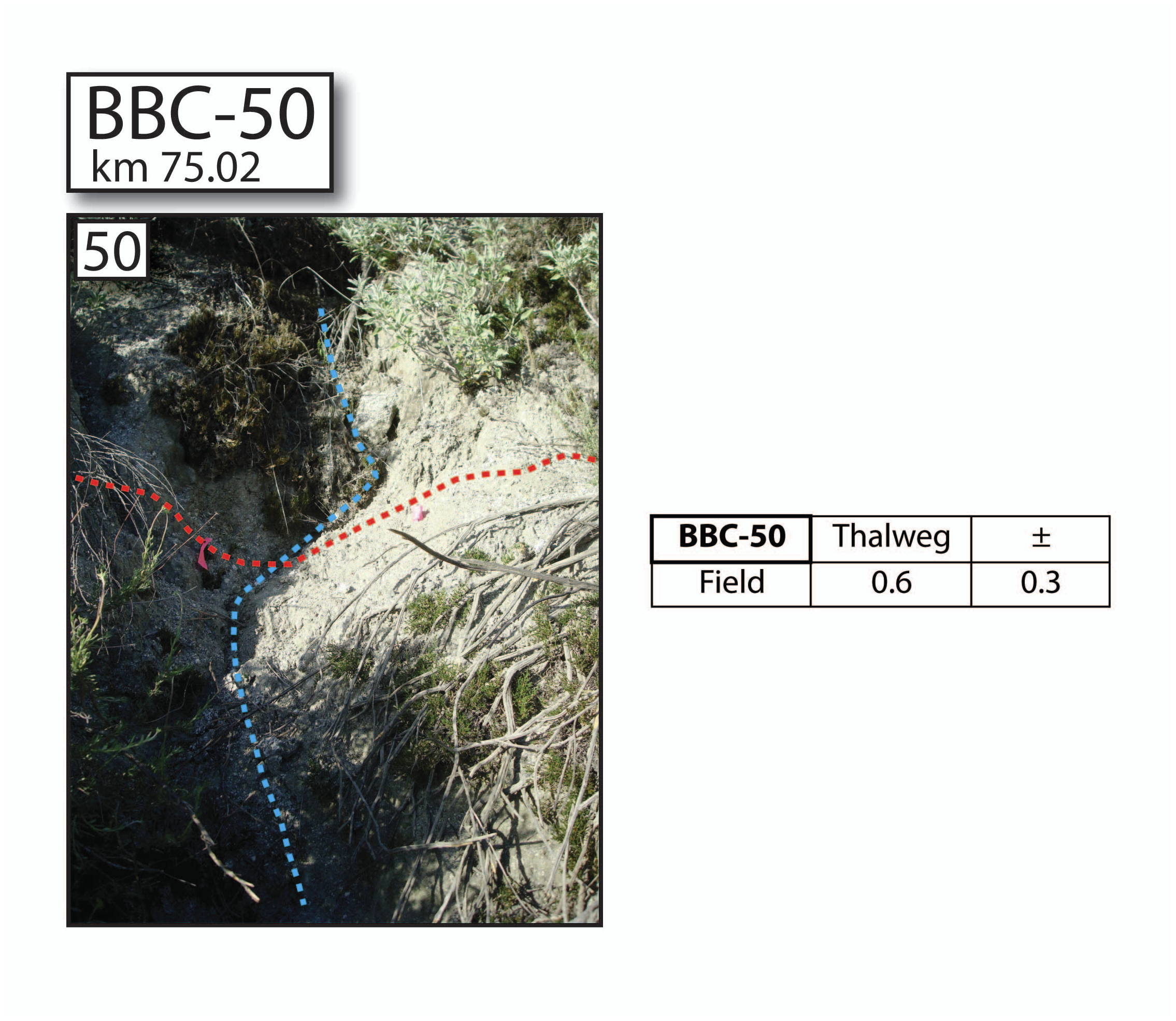

Figure S48. Annotated field photograph of BBC-50 (UTM zone 11, 515169 E, 3728005 N) in Blackburn Canyon. In the field photograph the present-day channel thalweg is shown as a dashed blue line and the fault trace is the dashed red line. The table shows a measured estimate of field displacement for the channel thalweg.

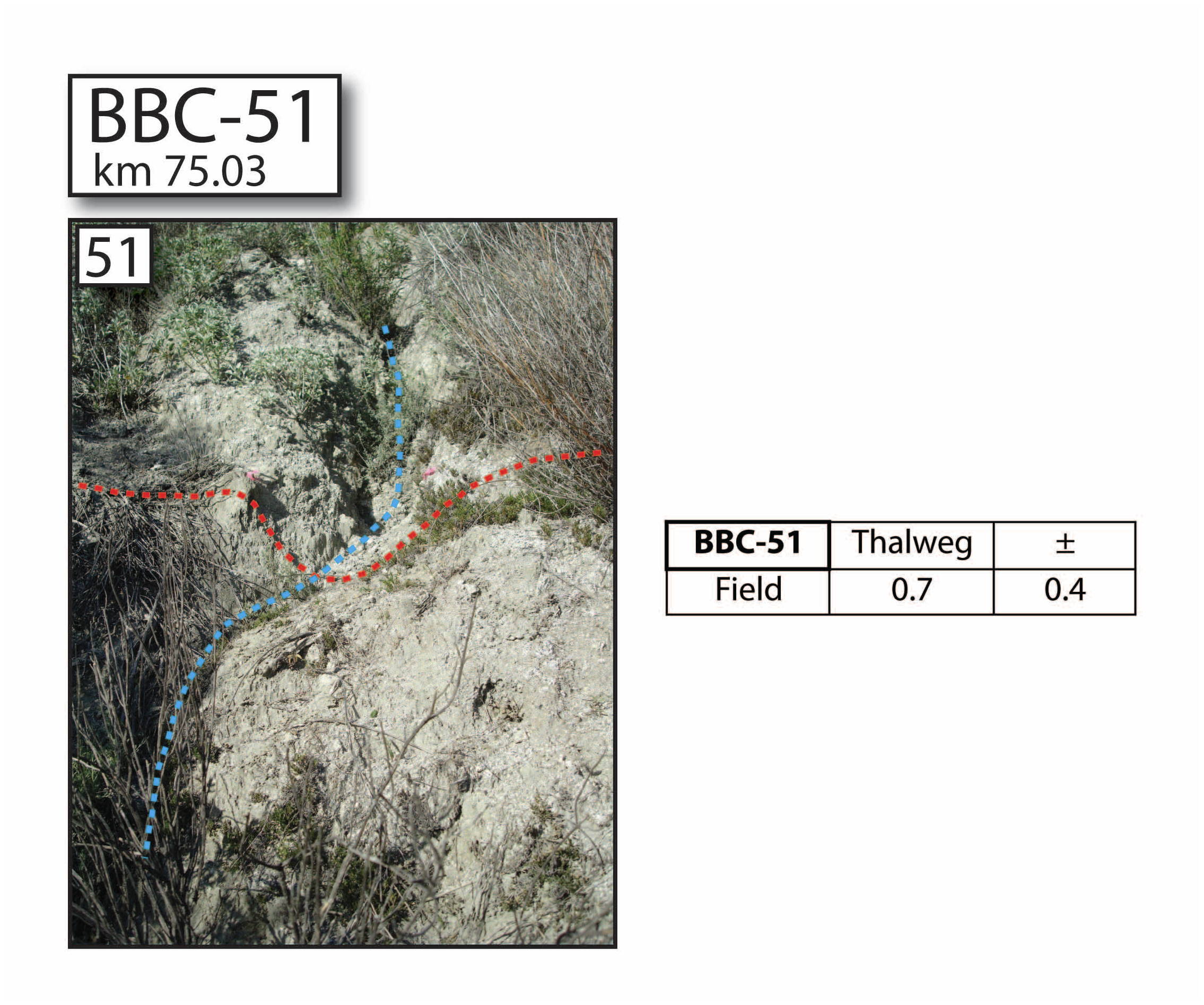

Figure S49. Annotated field photograph of BBC-51 (UTM zone 11, 515167 E, 3728006 N) in Blackburn Canyon. In the field photograph the present-day channel thalweg is shown as a dashed blue line and the fault trace is the dashed red line. The table shows a measured estimate of field displacement for the channel thalweg.

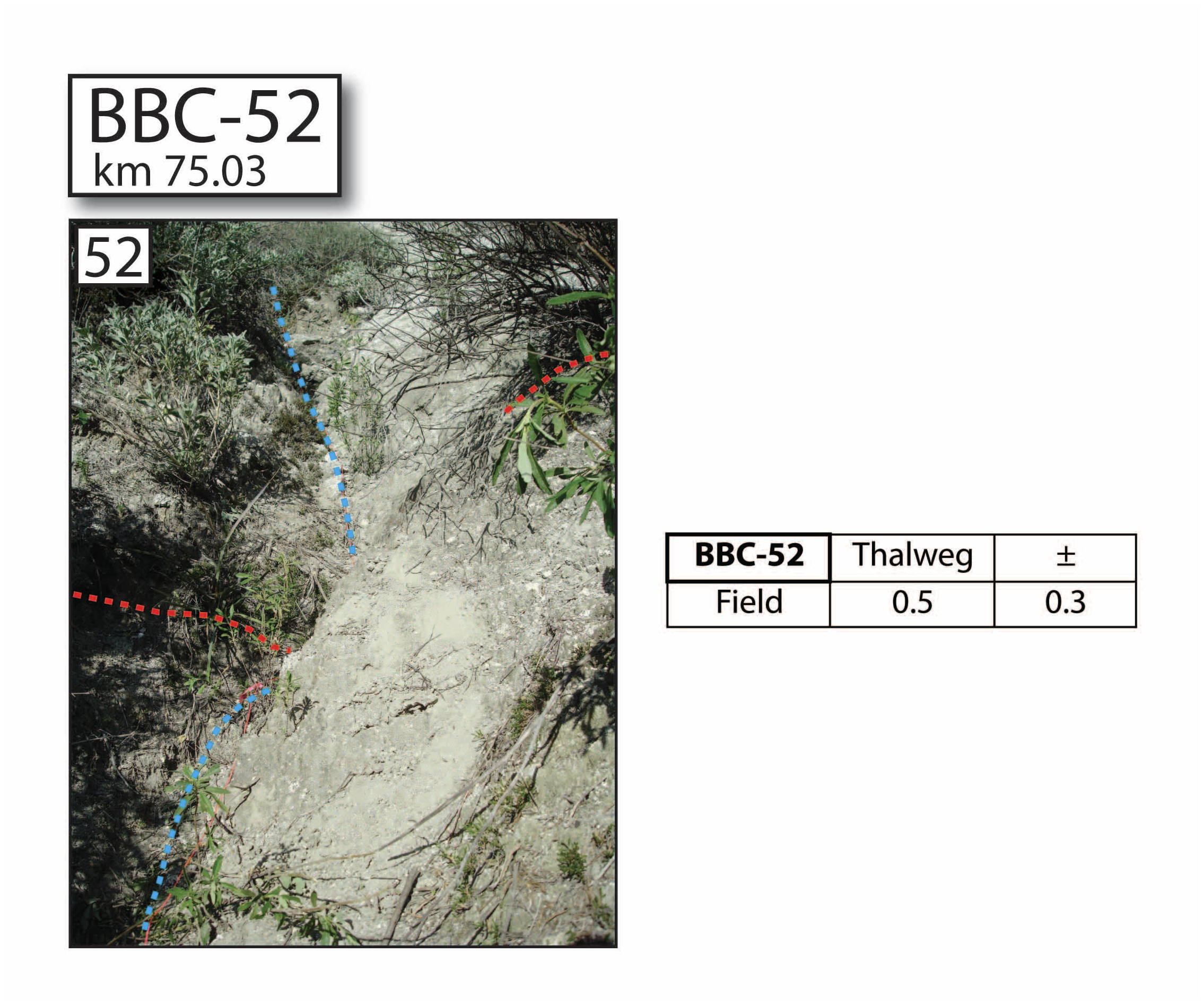

Figure S50. Annotated field photograph of BBC-52 (UTM zone 11, 515162 E, 3728008 N) in Blackburn Canyon. In the field photograph the present-day channel thalweg is shown as a dashed blue line and the fault trace is the dashed red line. The table shows a measured estimate of field displacement for the channel thalweg.

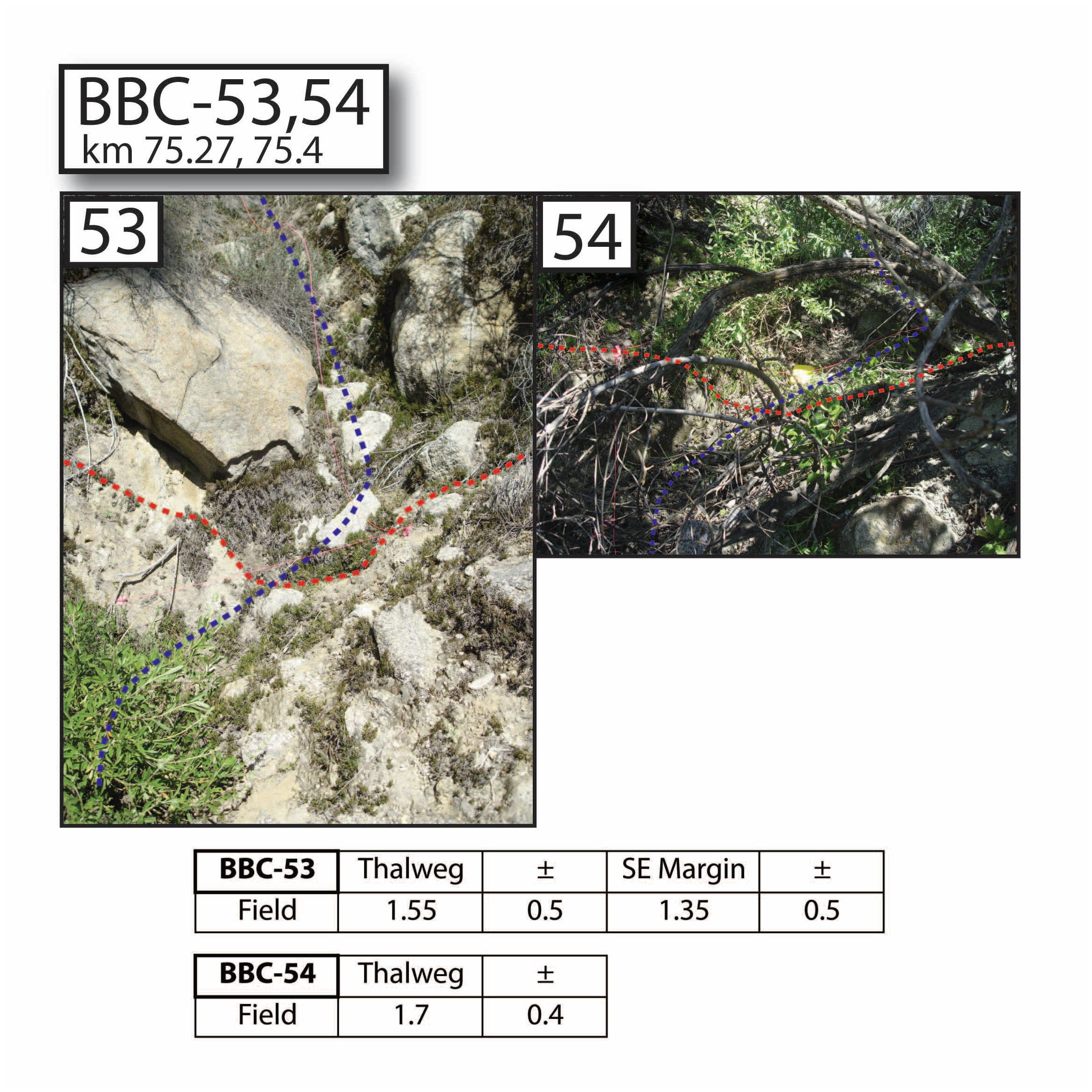

Figure S51. Annotated field photographs BBC-53 (UTM zone 11, 514923 E, 3728074 N), and BBC-54 (UTM zone 11, 514817 E, 3728150 N) in Blackburn Canyon. In the field photographs the present-day channel thalwegs are shown as a dashed blue lines and the fault traces are the dashed red lines. The tables show measured estimates of field displacement for the channel thalwegs and southeast margin.

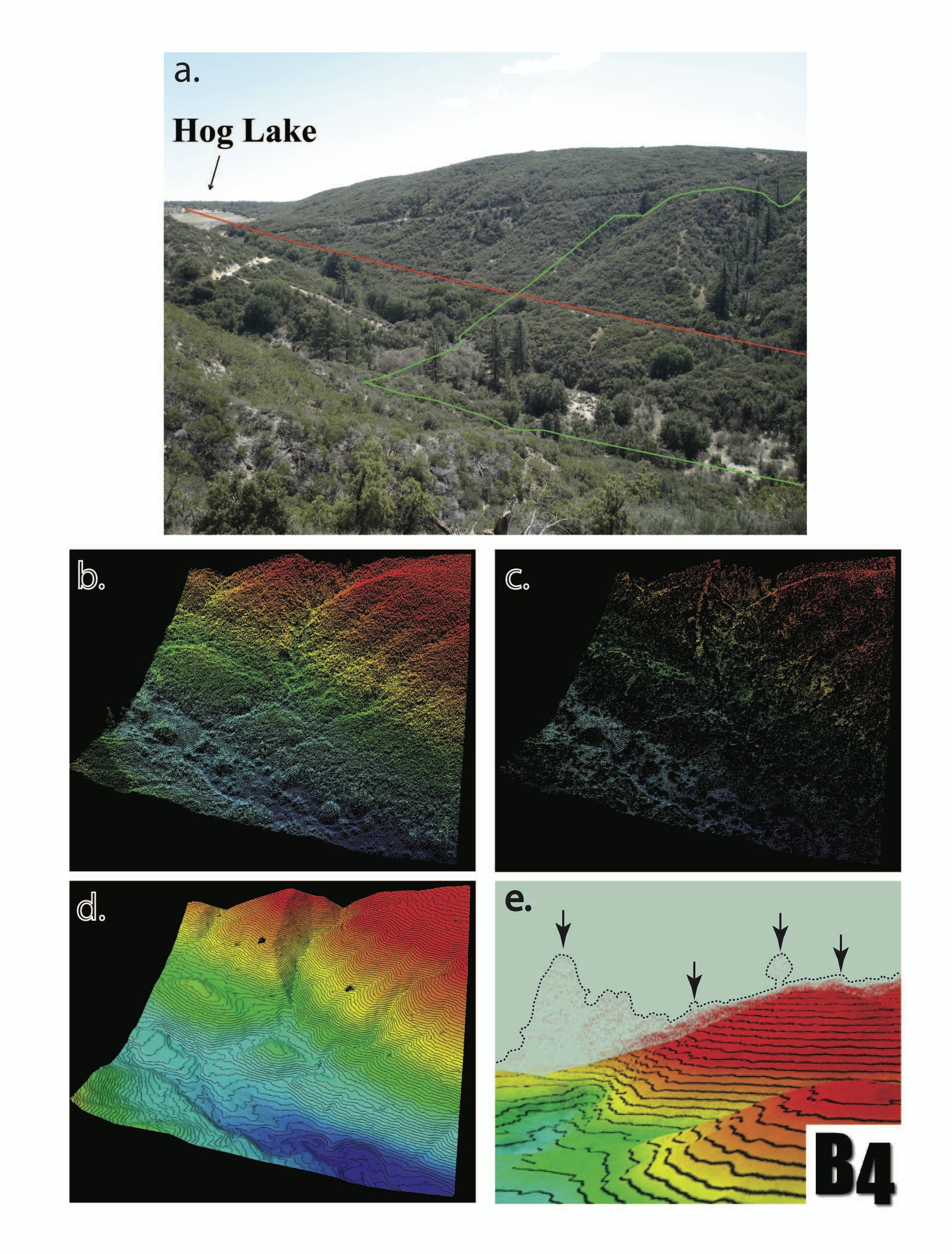

Figure S52. Filtering point clouds: a) View from Forest Route 6-S18 looking SE to Hog Lake, Green outline shows southeastern extent of raw point cloud, red line describes Clark fault trace, b) Raw point cloud viewed in QTM from roughly the same vantage as photograph, c) Filtered point cloud, d) Interpolated bare earth surface with 1 m contours, e) Close-up of bare earth surface with 1 m contours showing removed vegetation (visible between contours and dotted line).
