| Latitude | Longitude | Distance to reference | Best Offset (m) | Offset Range (m) | Quality Rating | Comment |
|---|---|---|---|---|---|---|
| 35.54166 | -120.09229 | 27.76 km | 9.3 | 8.5 - 10.5 | Moderate | Small offset gully. Offset distinct but upstream and downstream segments short. |

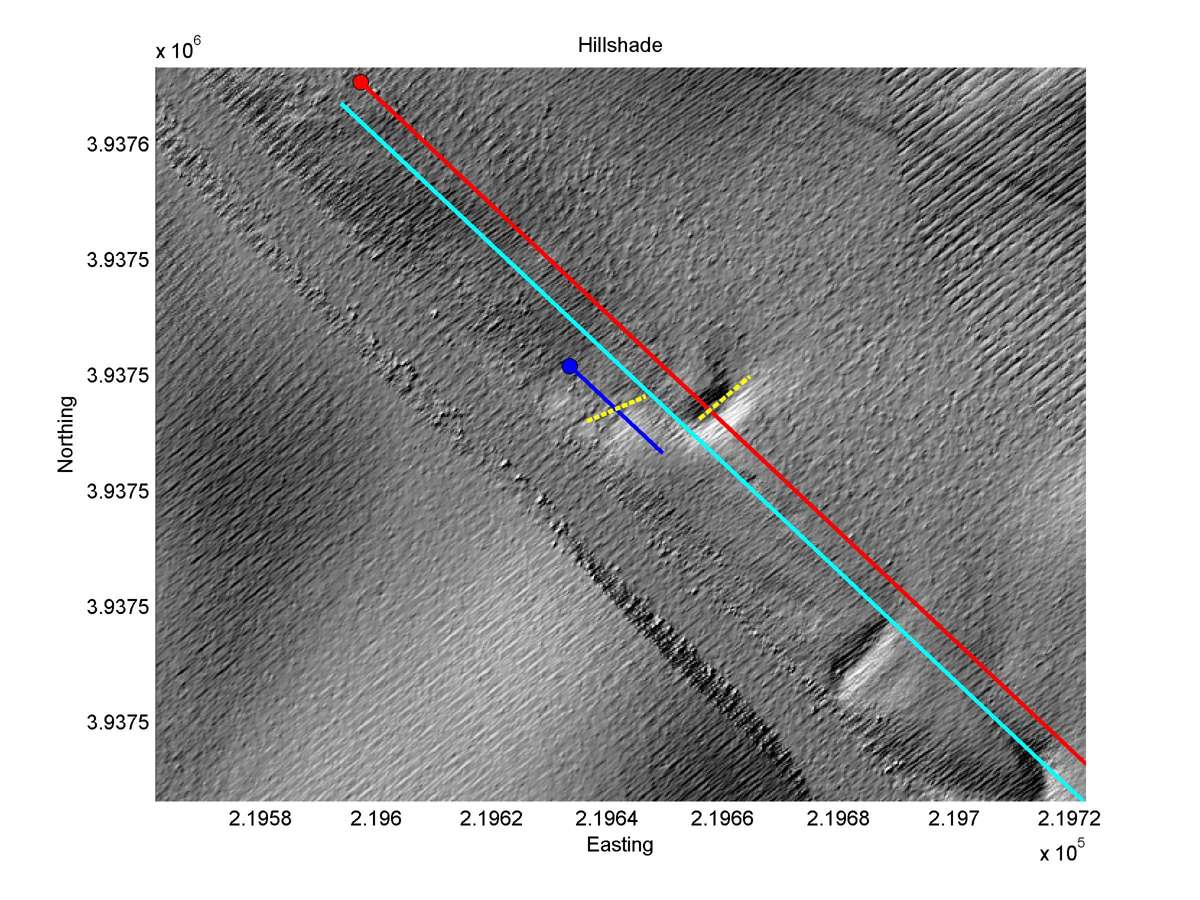

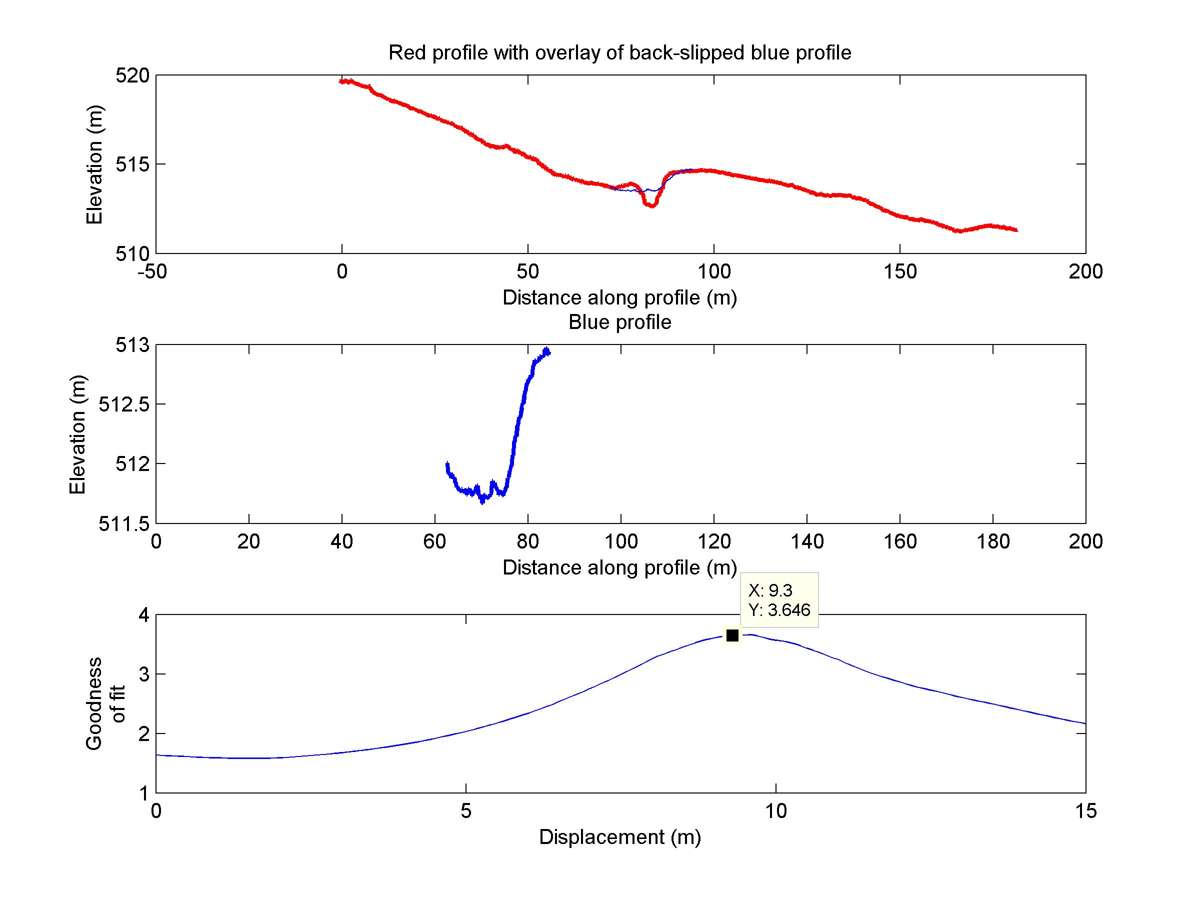

| Hillshade with profiles | Topographic profiles and GOF |
|
|

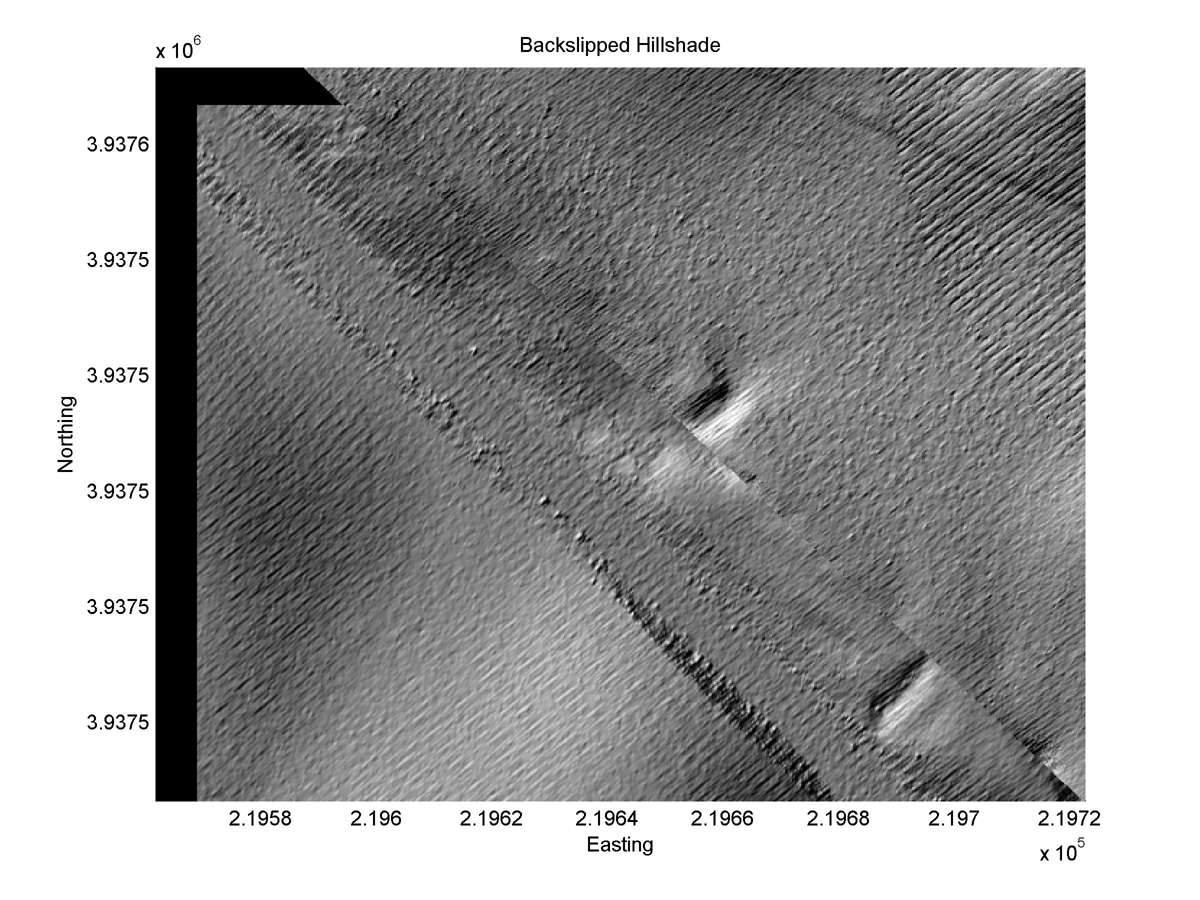

| Hillshade plot | Hillshade plot, Optimal back-slip |
|
|

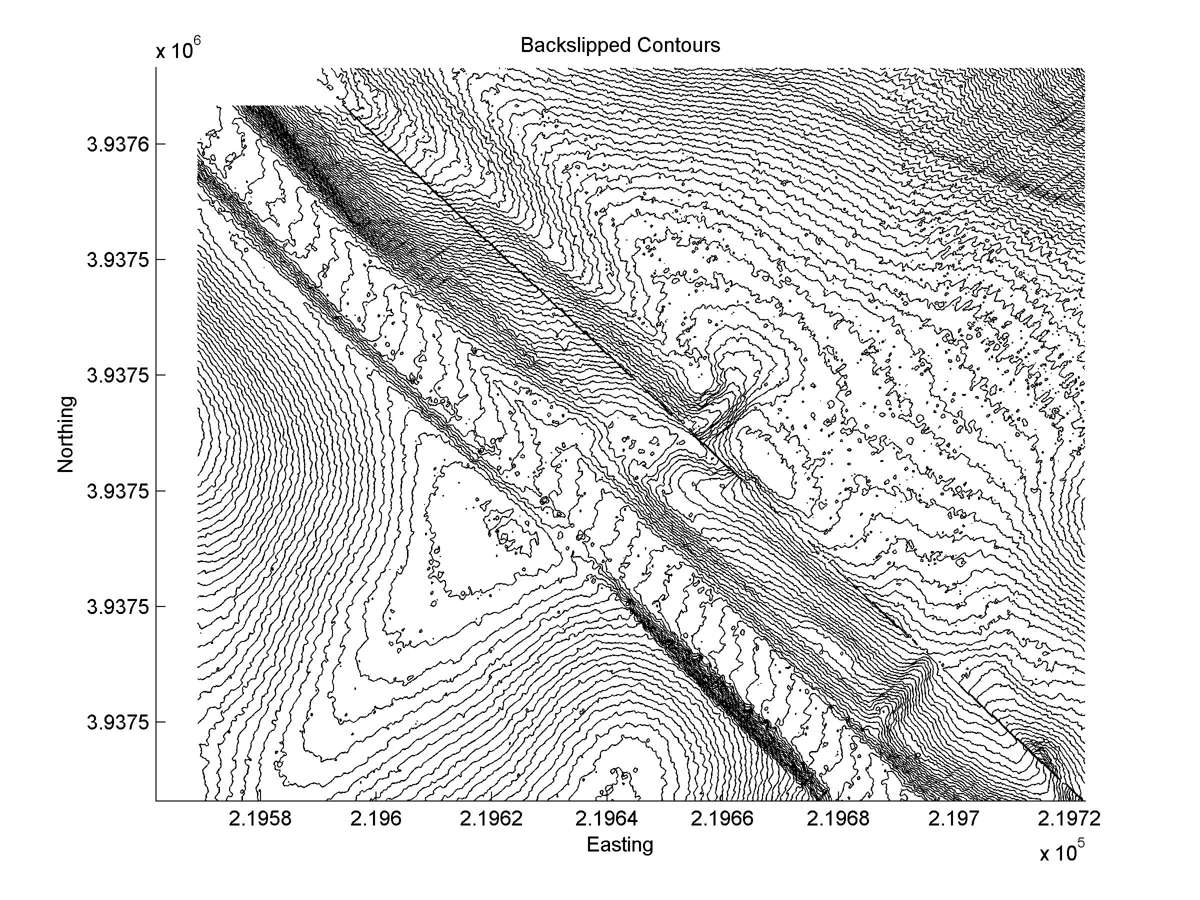

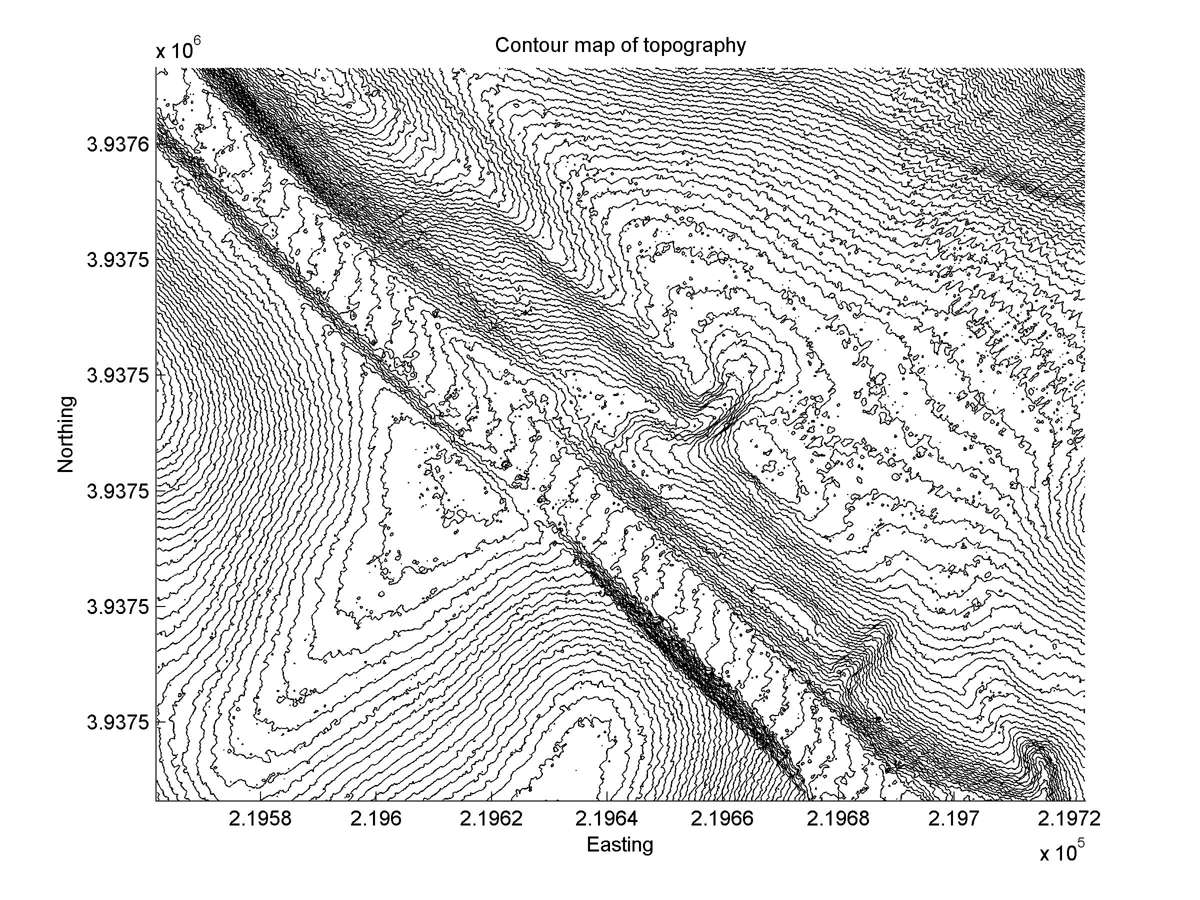

| Contour plot | Contour plot, Optimal back-slip |
|
|
| Dist. from Bitterwater road | Offset (m) | Error (m) | Quality Rating | Comments |
|---|---|---|---|---|
| -2.14km | 10 | 2 | medium | Apparent offset of 12 +/-0.5m corrected for disking effects. |
