| Latitude | Longitude | Distance to reference | Best Offset (m) | Offset Range (m) | Quality Rating | Comment |
|---|---|---|---|---|---|---|
| 34.62160 | -118.29728 | 228.32 km | 11.4 | 10.5 - 13.0 | Moderate-Low | Offset scarp face gully. Offset distinct, but distributed over two fault traces, makes measurement and assessment of pre-earthquake channel morphology difficult. |

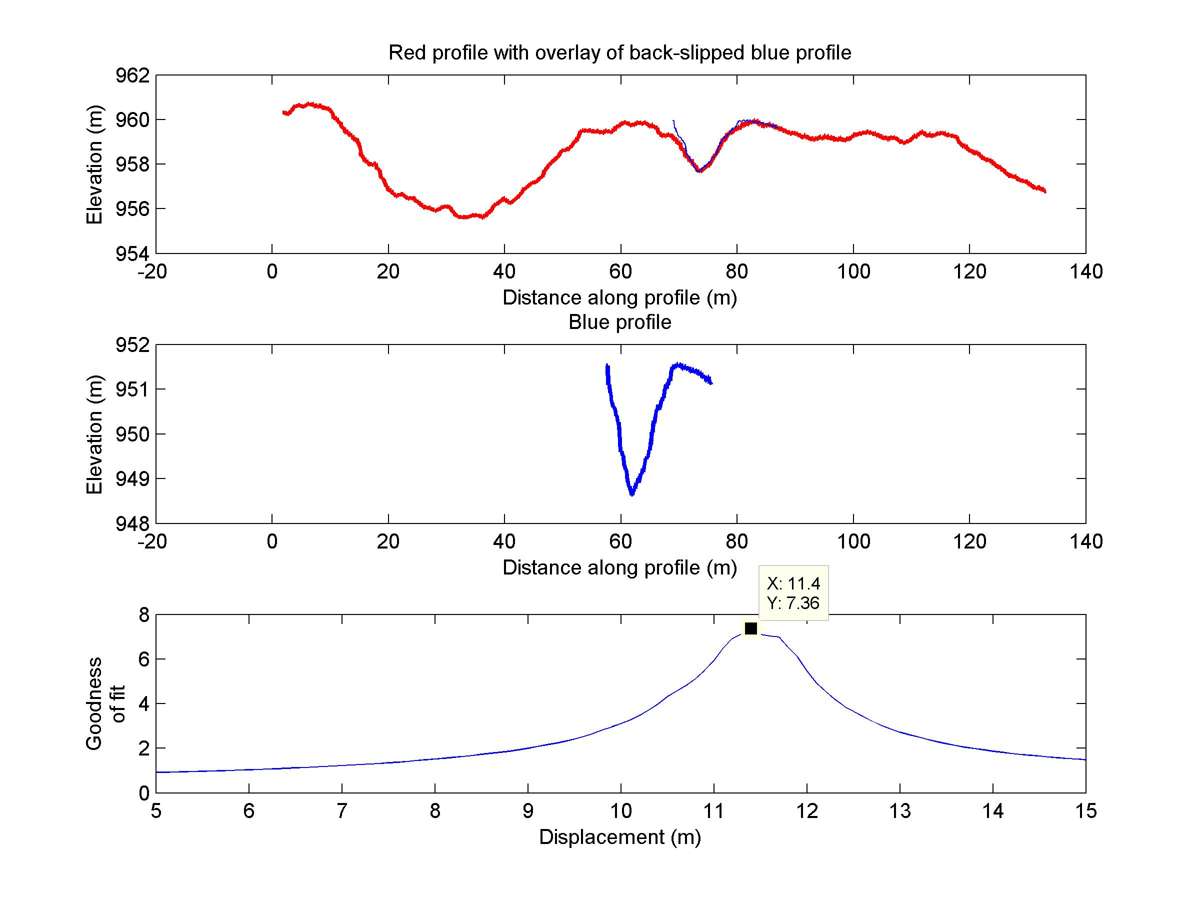

| Hillshade with profiles | Topographic profiles and GOF |
|
|

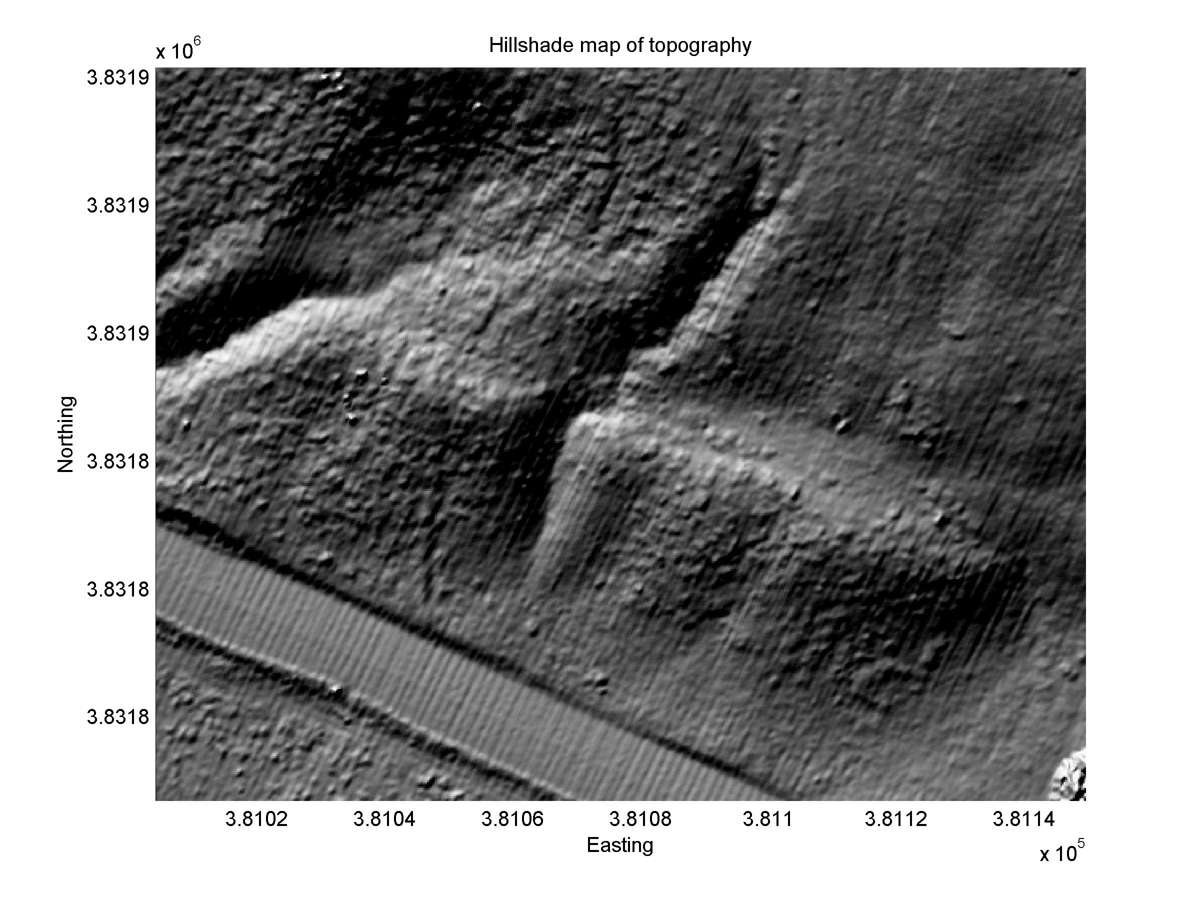

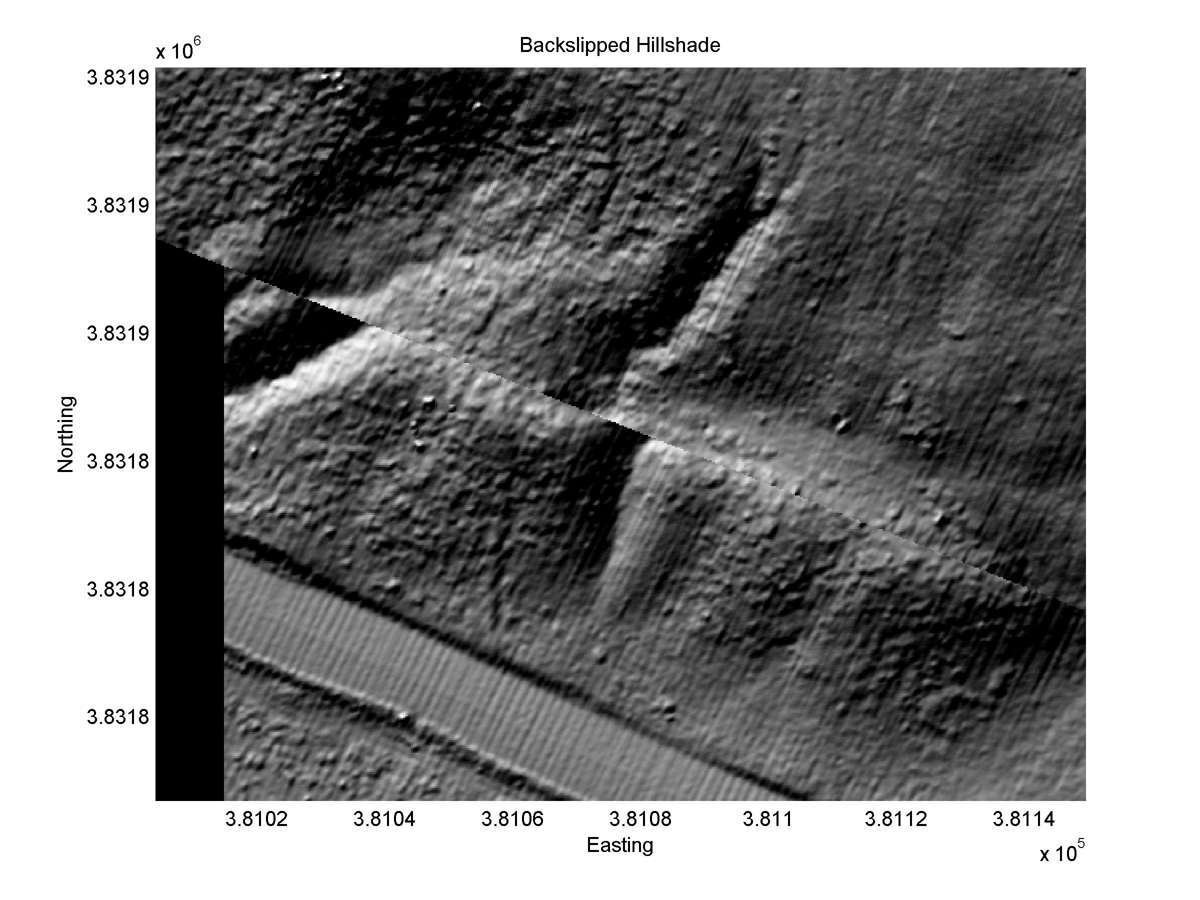

| Hillshade plot | Hillshade plot, Optimal back-slip |
|
|

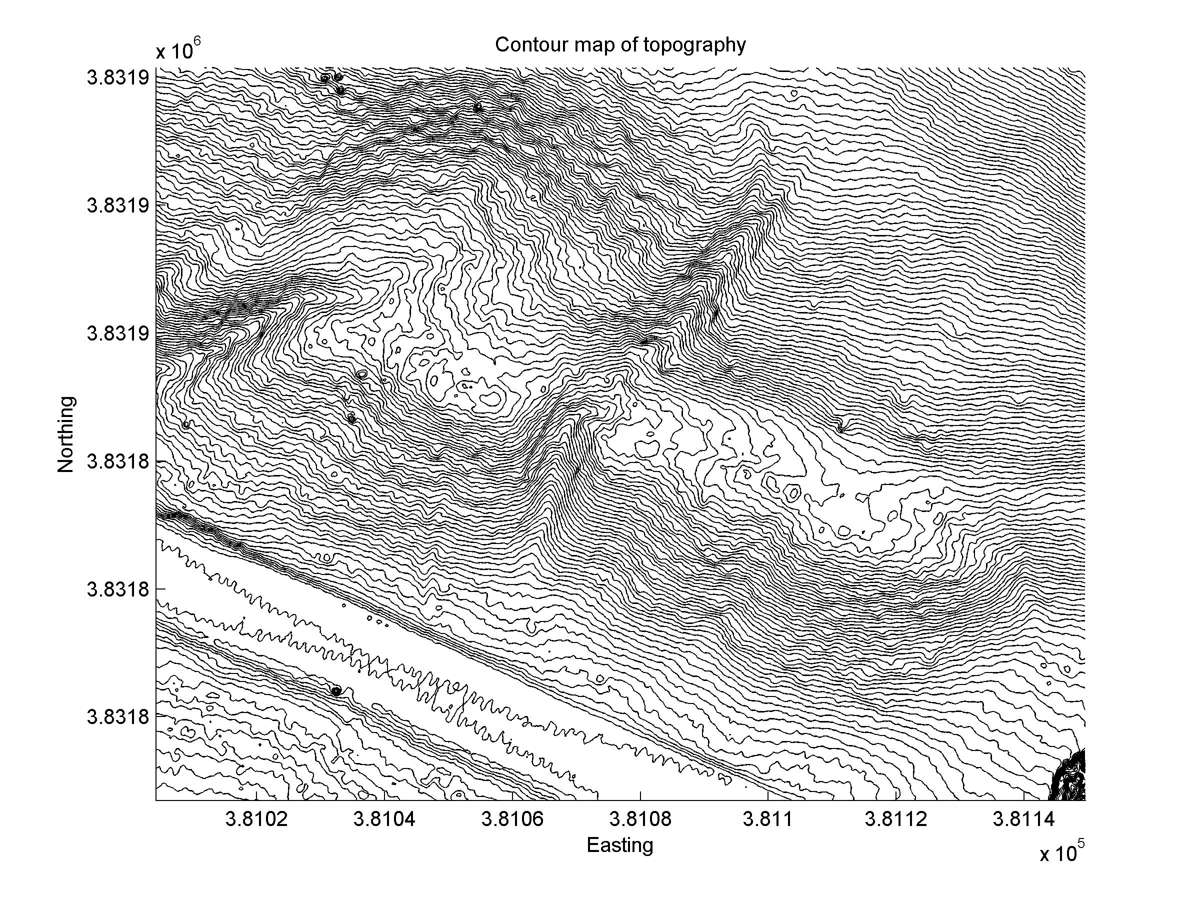

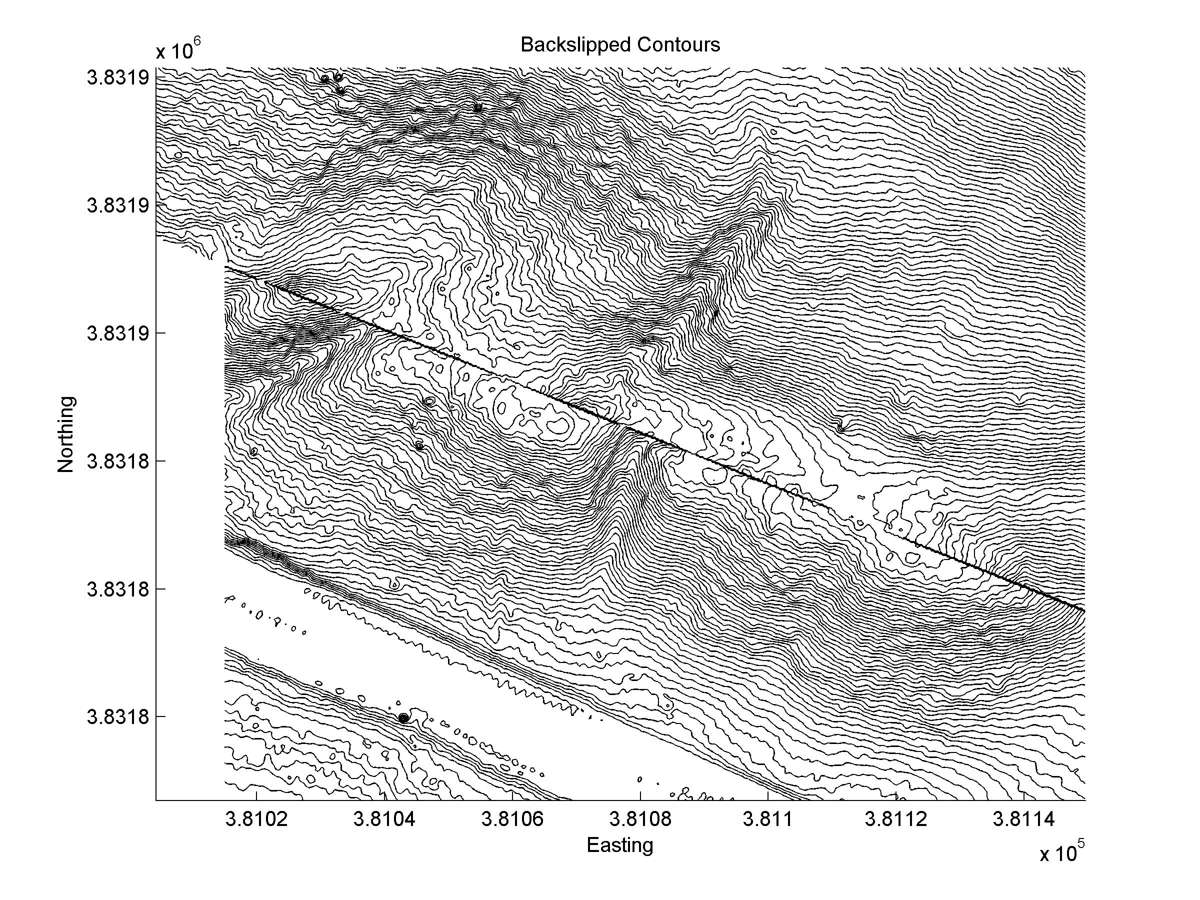

| Contour plot | Contour plot, Optimal back-slip |
|
|
| Offset (m) | Error (m) | Quality Rating | Comments |
|---|---|---|---|
| 10.1 | +/-0.8 | Good/Fair | Deeply-incised scarp-face gully. Offset across two faults. |
