BSSA 104:5, Electronic Supplement to Shahi & Baker - Pulse Details: 1995 Kobe, Japan, KJMA

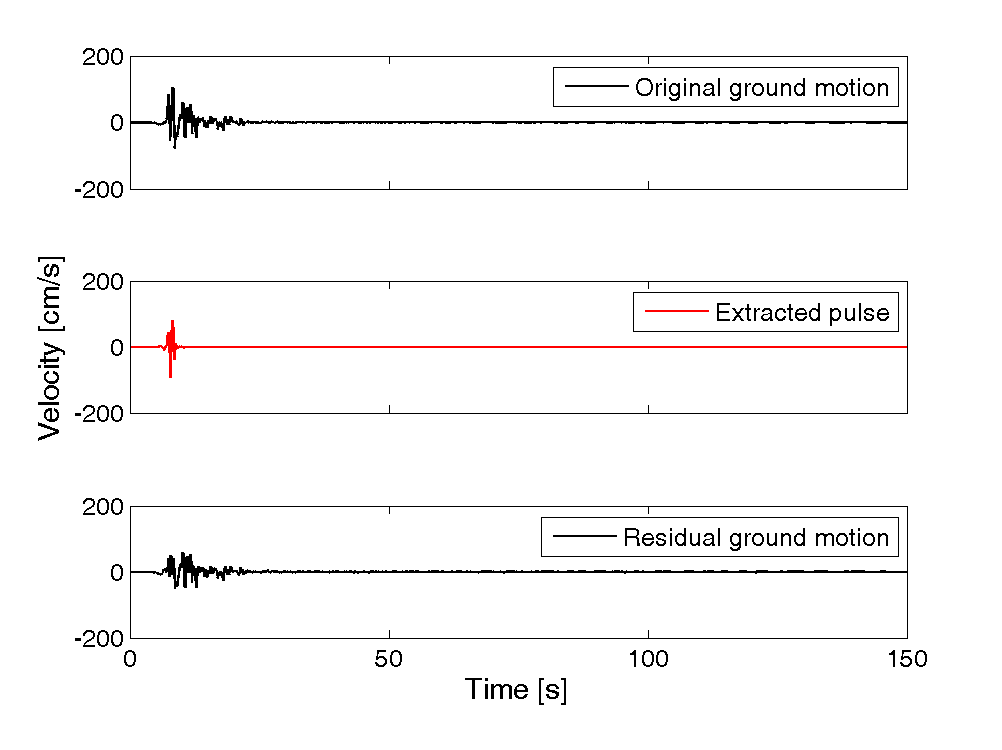

Plots of original ground motion, extracted pulse, and residual ground motion:

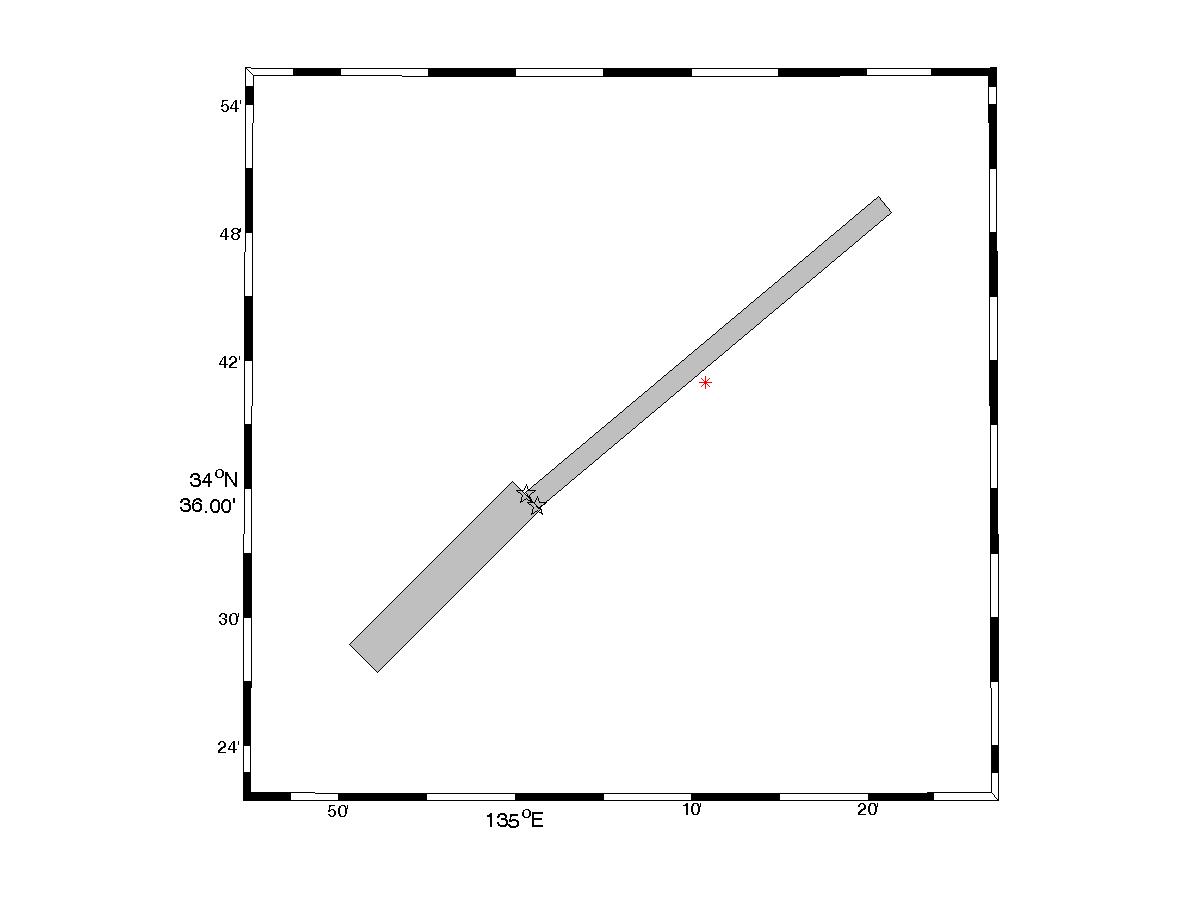

Map of epicenter, rupture extent and station location:

Ground motion information:

NGA Record Sequence Number 1106

Magnitude = 6.9
Closest Distance = 1 km
Hypocentral Distance = 25.58 km
Vs30 = 312 m/s
Mechanism = Strike slip

T_p = 1.09 s
PGV = 105.6 cm/s

Orientation of strongest pulse, relative to north = 318 degrees
Orientation of strongest pulse, relative to fault parallel = 88 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1

Comments:

no comment

Directivity parameters:

X = 0.3
s = 18.14 km
θ = 7.8

Y = 0.87
d = 17.77 km
φ = 13.2

IDP = 2.05
Rowshandel parameter = -0.25

Notes:

These results were computed November 1st, 2012
These results are based on the June 2012 version of the NGA West 2 database
If you have any observations, comments or requests regarding this data, please e-mail Jack Baker and Shrey Shahi
