1984 Morgan Hill, Gilroy Array #6

Ground motion information:

NGA Record Sequence Number 459

Magnitude = 6.2
Closest Distance = 9.9 km
Hypocentral Distance = 37.32 km
Vs30 = 663 m/s
Mechanism = Strike slip

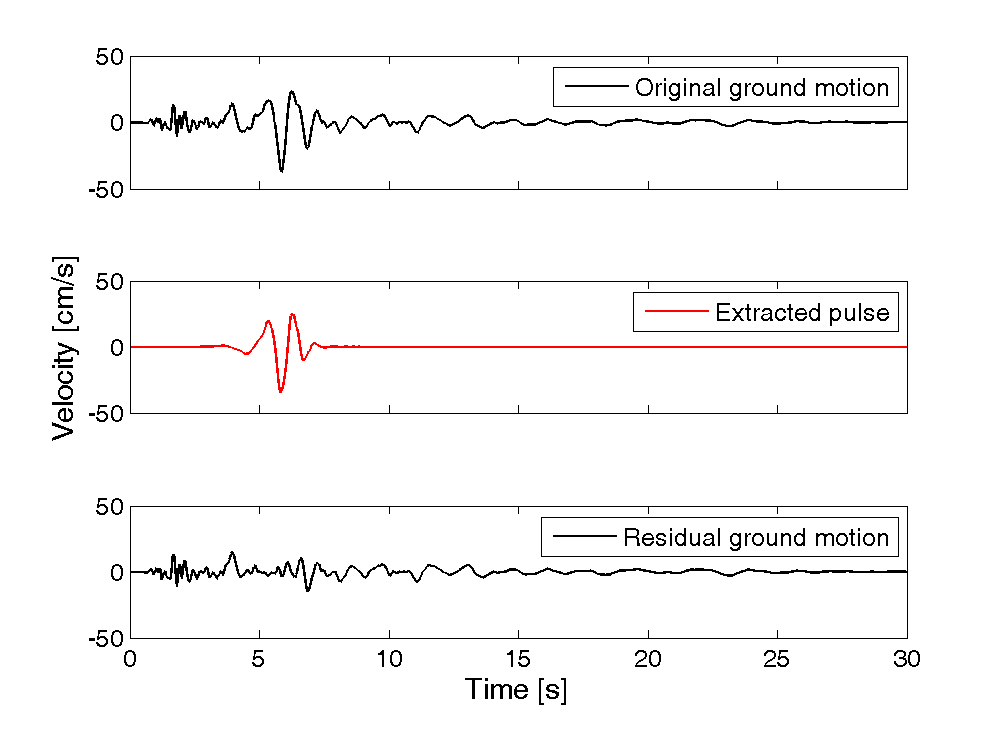

T_p = 1.23 s
PGV = 37.3 cm/s

Orientation of strongest pulse, relative to north = 78 degrees
Orientation of strongest pulse, relative to fault parallel = 70 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1

Comments:

no comment

Directivity parameters:

X = 0.98
s = 26.51 km
θ = 1

Y = 0.7
d = 8 km
φ = 4.1

IDP = 3.19
Rowshandel parameter = 0.88
