03-216b

Haeussler et al., 2004, Bulletin of the Seismological Society of America

Field photo: 03-216b_5ARW.jpg

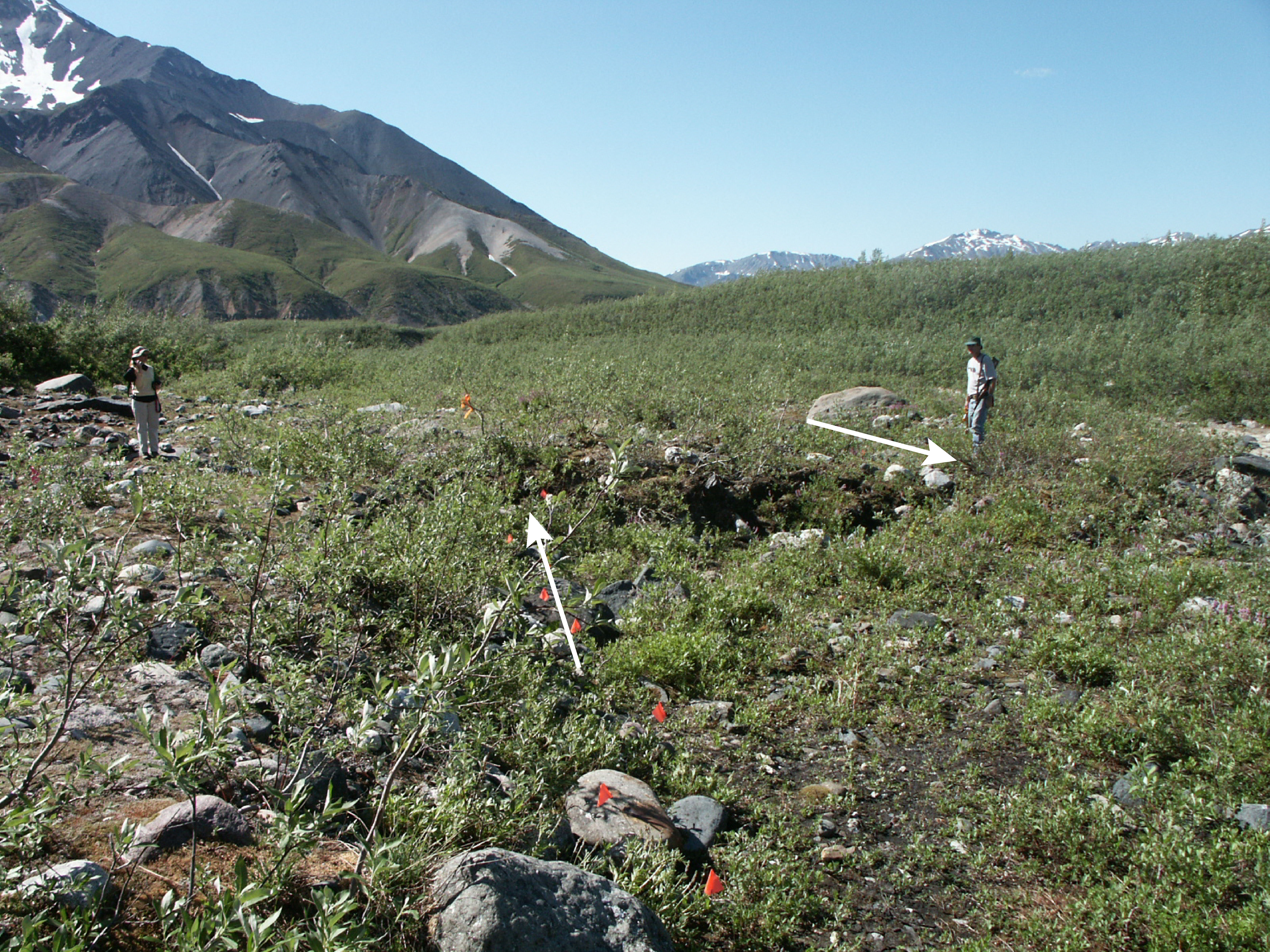

View to the south of a small terrace riser (arrows) of the Middle Fork Chistochina River right-laterally offset 5.5 +/- 0.7m by the Denali fault. The 6-m-wide rupture zone trends from left to right across the center of the photo and offsets the southern part of the riser to the right, just left of J. Lienkaemper (figure on right). Most of the slip occurs across a 2.5-m-wide zone. H. Stenner stands on the left side of the photo. Sites DS03, 03-216b, and k94, km 157.72. Photo by T. Dawson.
