DS-2

Haeussler et al., 2004, Bulletin of the Seismological Society of America

Field photo: DS-2 _1 tim.jpg

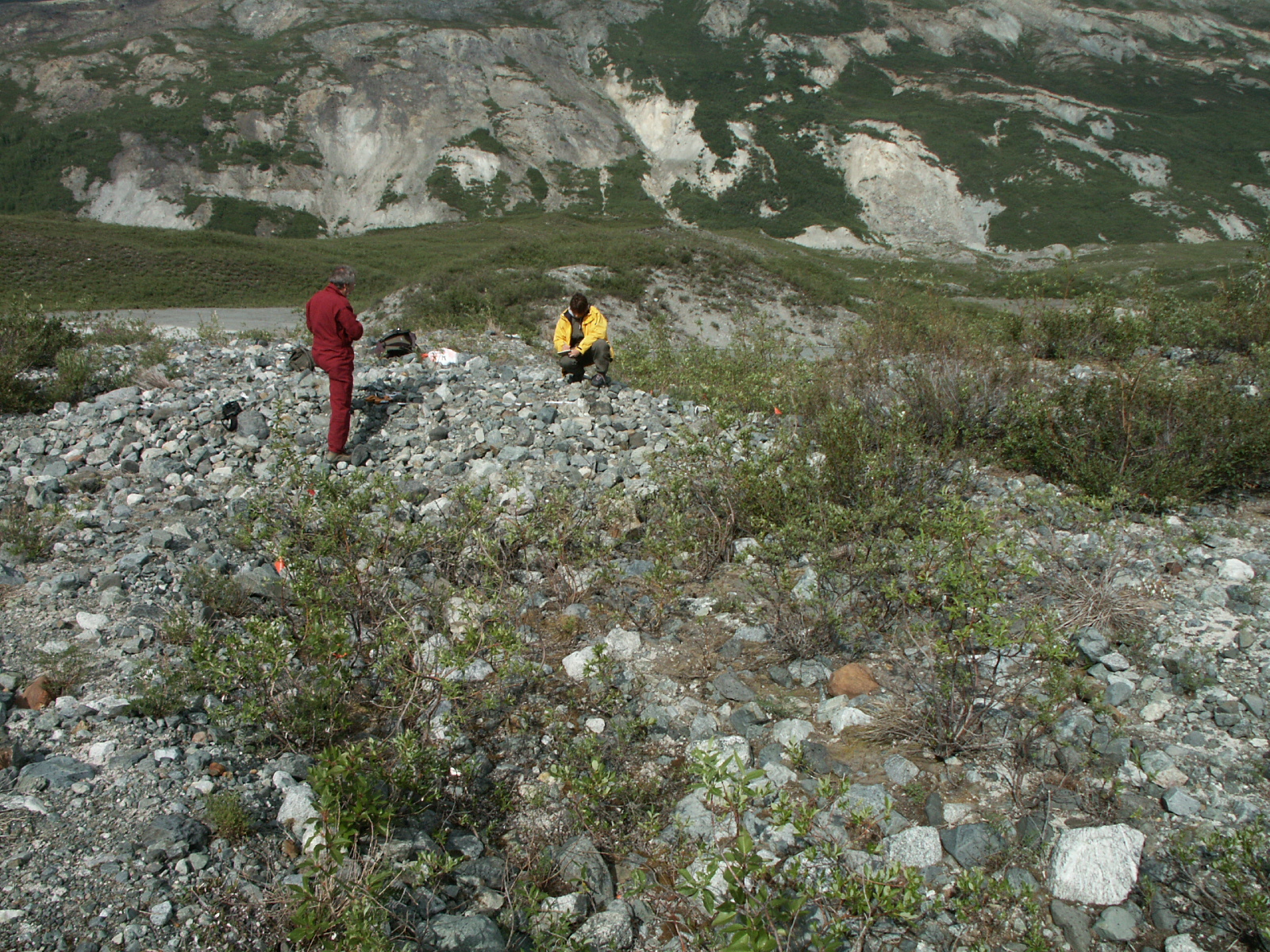

D. Schwartz (left) and P. Montone (right) stand on a terrace surface offset by the Denali fault. Offset at this location is 4.46 +0.29 -0.18m, right-lateral, and 1.0 +/- 0.1m, up to the north. Orange flags mark the right-hand edge of the offset terrace riser and channel. The fault trends from left to right across the lower center of the photo. Sites DS-2, k91; km 96.93. Photo by T. Dawson.
