Electronic Supplement to
Probabilistic Seismic Hazard Assessment of India

by S. K. Nath and K. K. S. Thingbaijam

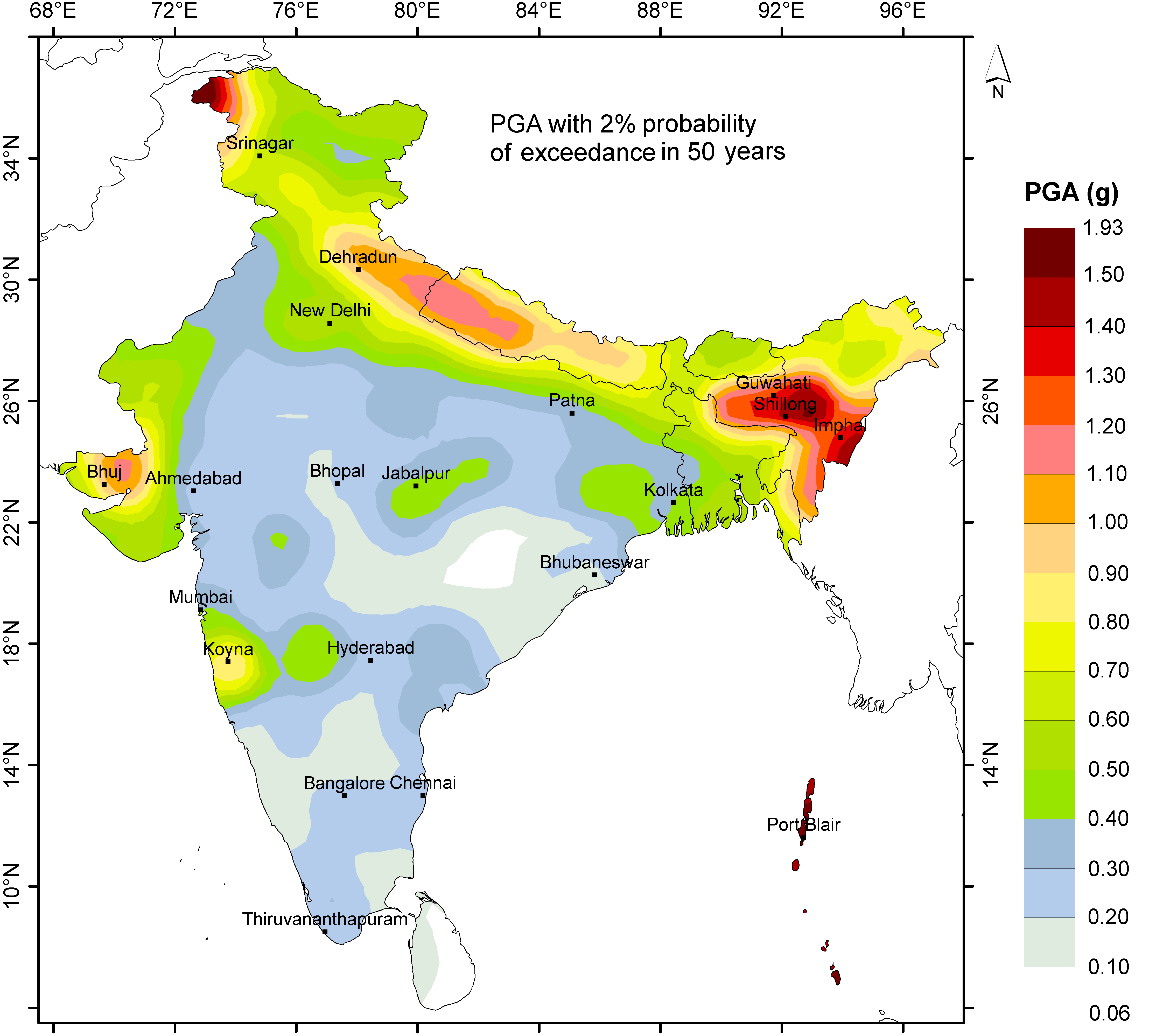

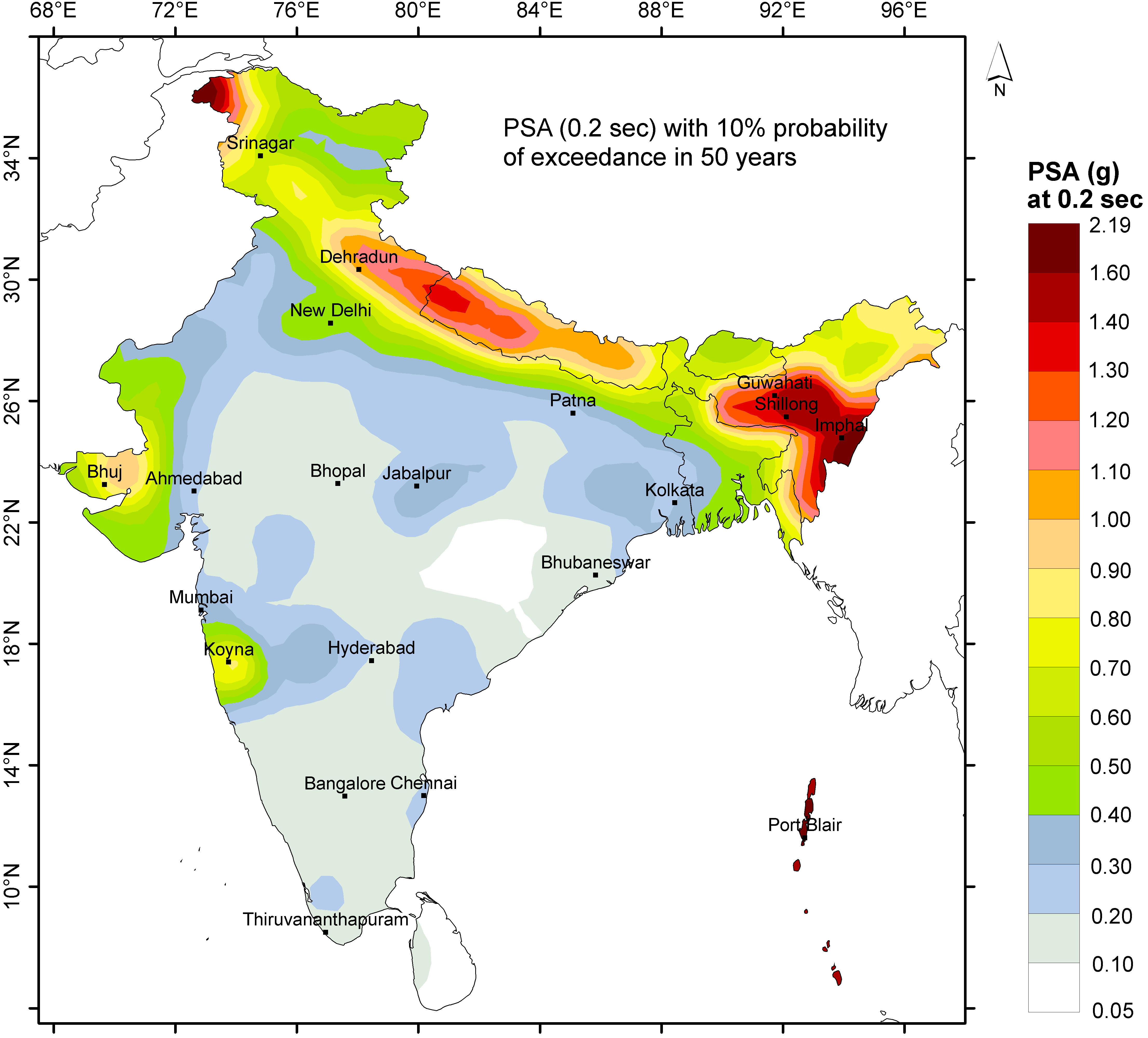

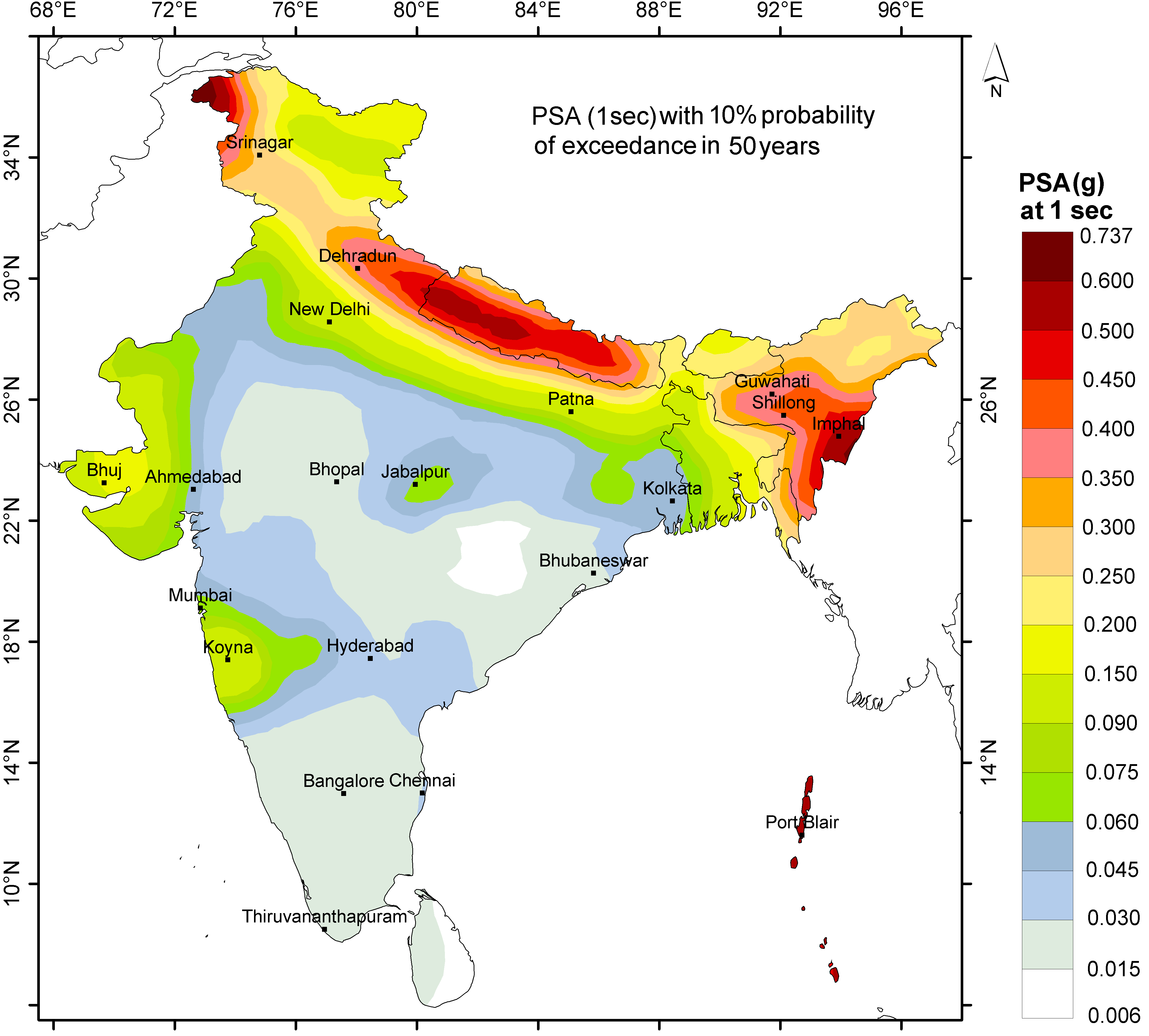

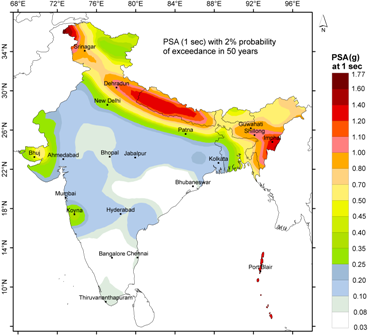

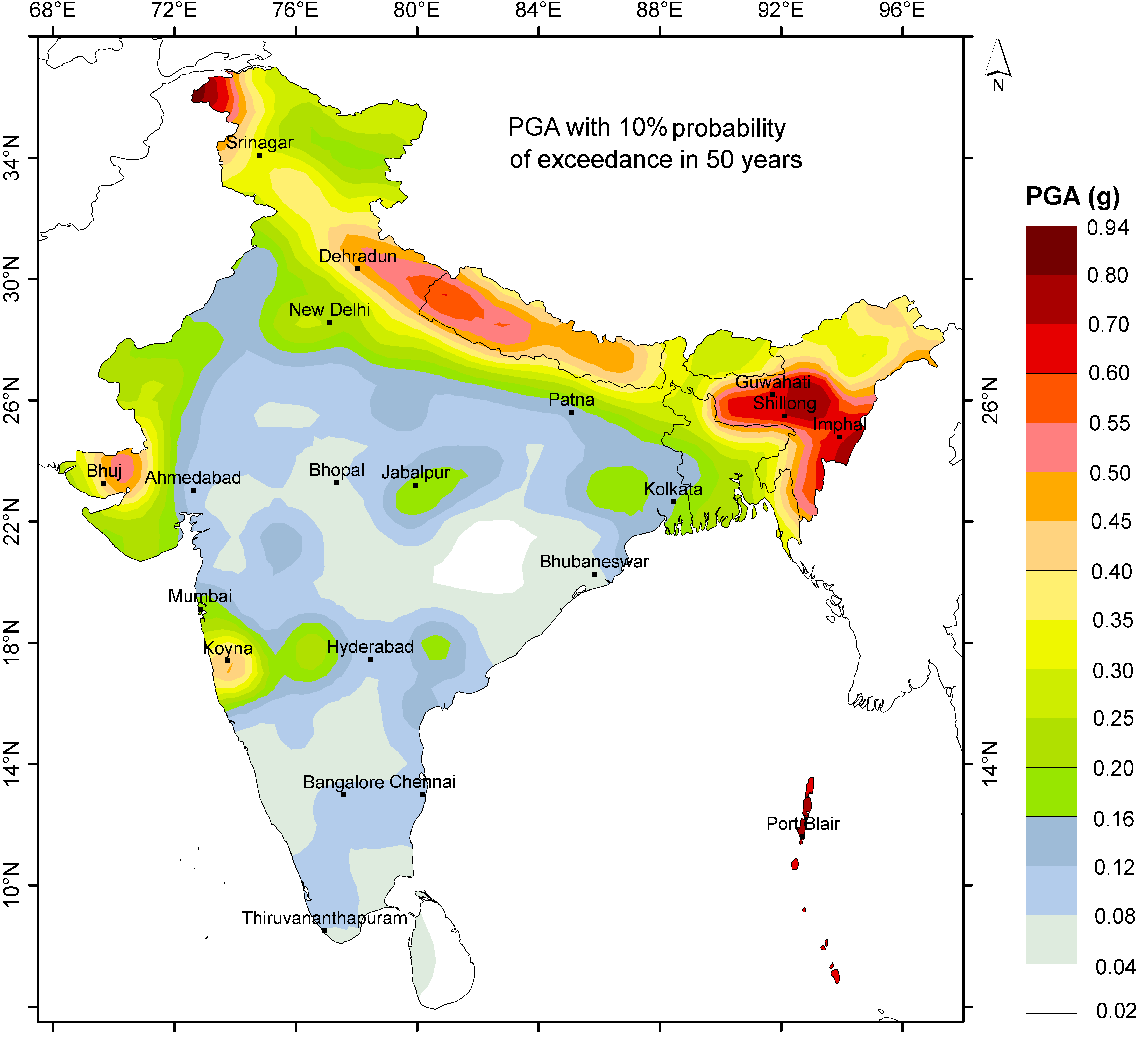

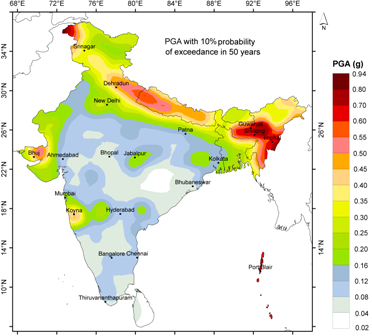

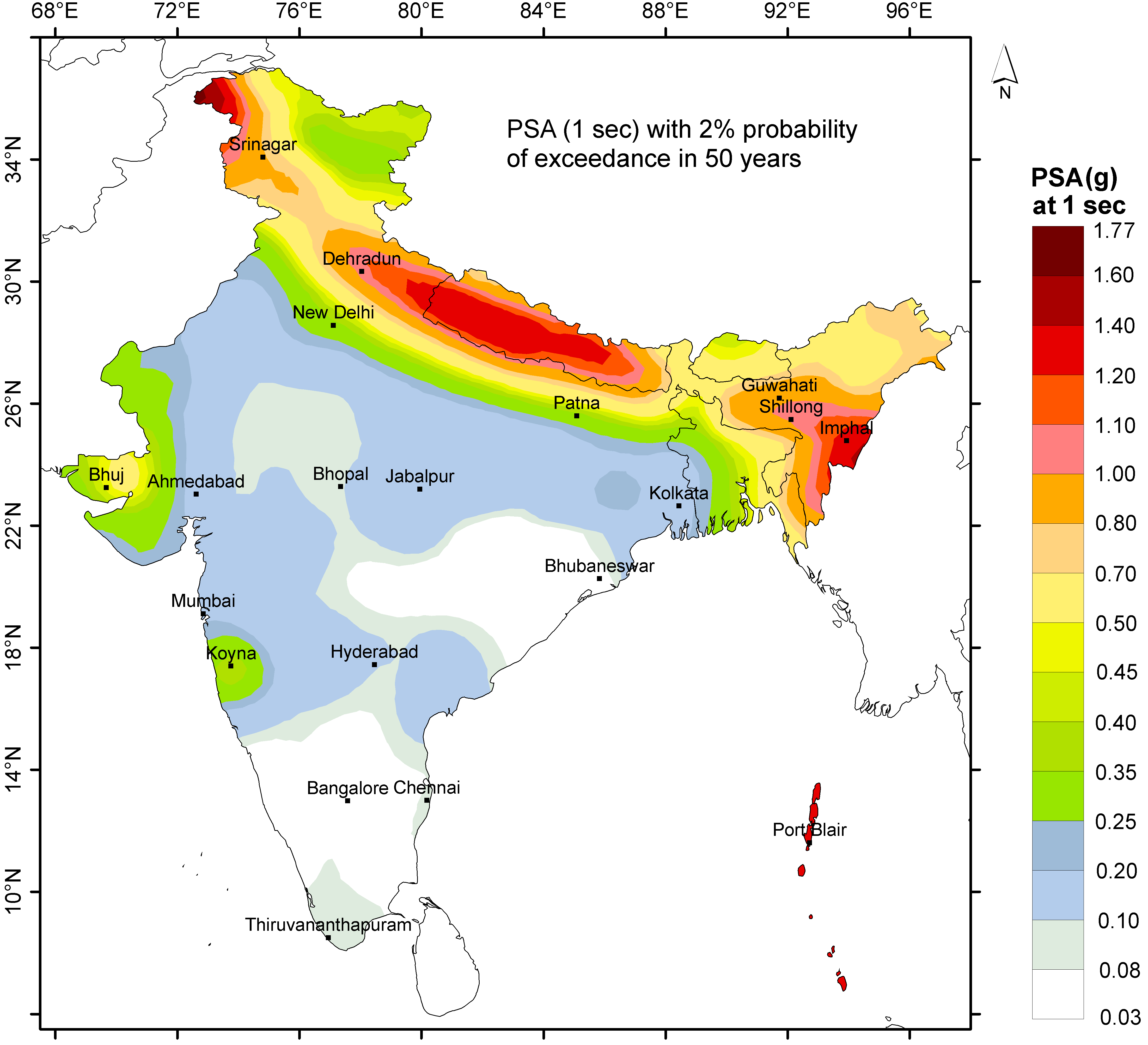

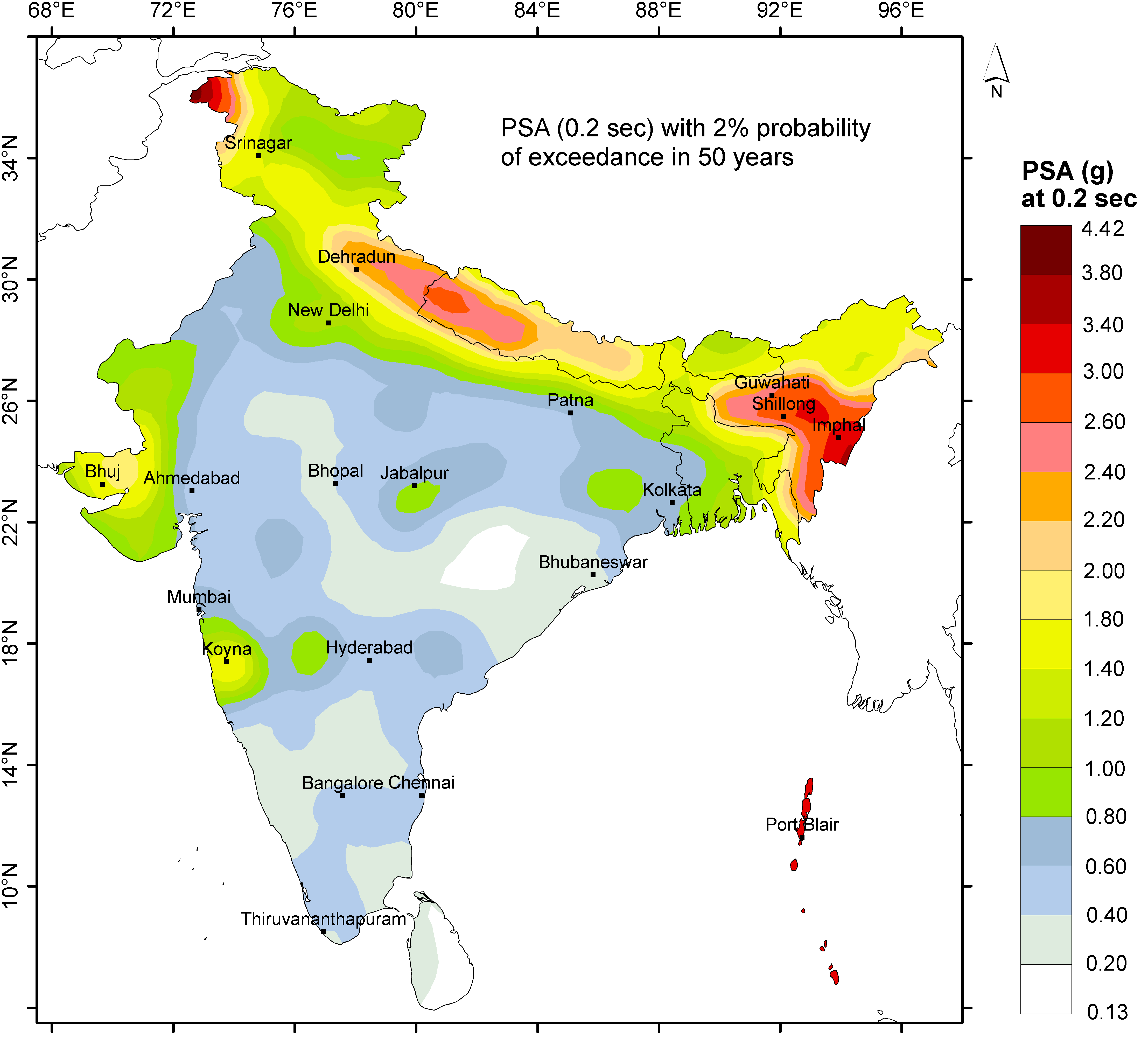

Figure S1. The seismic hazard maps are given as follows (click on each map to view larger version*).

Note- Clicked images will open in a size that will allow the whole image to fit in the browser window. To view at full size click the expand icon in the upper right corner.
