Electronic Supplement to
Ground Motion Modeling of the 1906 San Francisco Earthquake I: Validation Using the 1989 Loma Prieta Earthquake

by Brad T. Aagaard, Thomas M. Brocher, David Dolenc, Douglas Dreger, Robert W. Graves, Stephen Harmsen, Stephen Hartzell, Shawn Larsen, and Mary Lou Zoback

Comparisons of Synthetic Intensities

Comparison of synthetic intensities among the four ground motion modeling groups (Aagaard, Dolenc et al., Graves, and Harmsen et al.) for the Wald and Beroza source models.

Difference in MMI between Aagaard's (T > 2.0 s) simulations and Dolenc at al.'s (T > 1.25 s) simulations of the Loma Prieta earthquake for the Beroza and Wald source models.

Beroza Source Wald Source

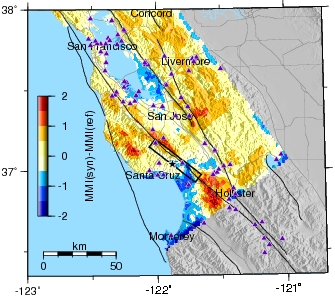

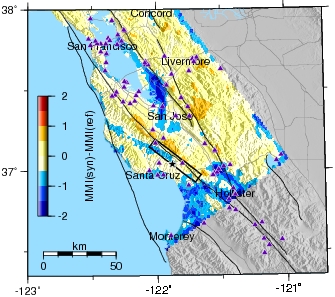

Aagaard vs. Dolenc, Beroza Source, MMI difference Aagaard vs. Dolenc, Wald Source, MMI difference

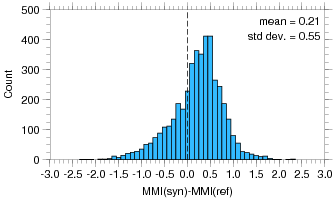

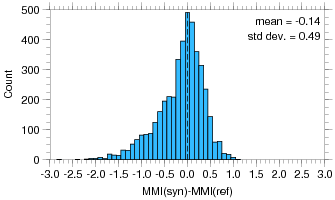

Aagaard vs. Dolenc, Beroza Source, MMI misfit Aagaard vs. Dolenc, Wald Source, MMI misfit

Difference in MMI between Harmsen et al.'s (T > 1.0 s) simulations and Dolenc at al.'s (T > 1.25 s) simulations of the Loma Prieta earthquake for the Beroza and Wald source models.

Beroza Source Wald Source

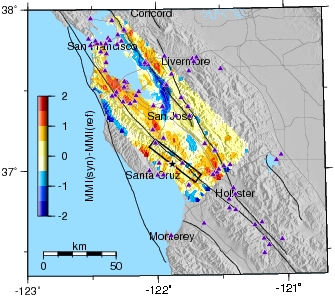

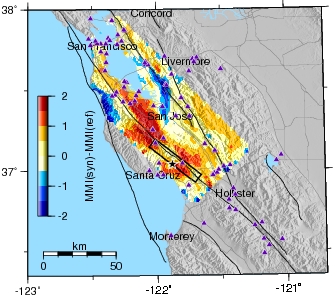

Harmsen vs. Dolenc, Beroza Source, MMI difference Harmsen vs. Dolenc, Wald Source, MMI difference

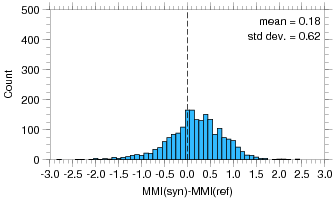

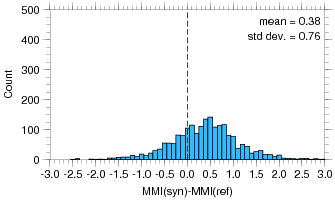

Harmsen vs. Dolenc, Beroza Source, MMI misfit Harmsen vs. Dolenc, Wald Source, MMI misfit

Difference in MMI between Aagaard's (T > 2.0 s) simulations and Graves's (T > 1.0 s) simulations of the Loma Prieta earthquake for the Beroza and Wald source models.

Beroza Source Wald Source

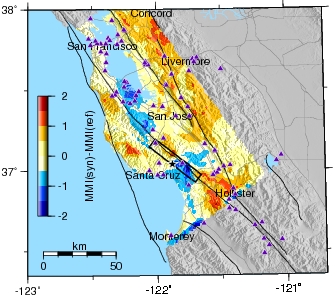

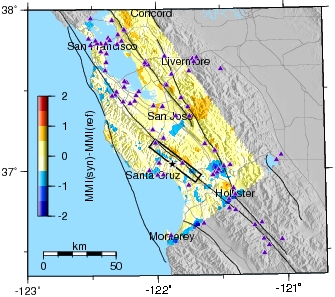

Aagaard vs. Graves, Beroza Source, MMI difference Aagaard vs. Graves, Wald Source, MMI difference

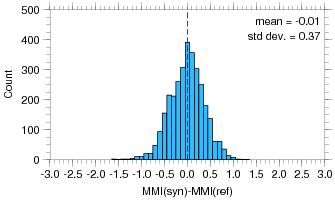

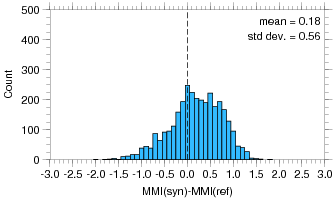

Aagaard vs. Graves, Beroza Source, MMI misfit Aagaard vs. Graves, Wald Source, MMI misfit

Difference in MMI between Dolenc et al.'s (T > 1.25 s) simulations and Graves's (T > 1.0 s) simulations of the Loma Prieta earthquake for the Beroza and Wald source models.

Beroza Source Wald Source

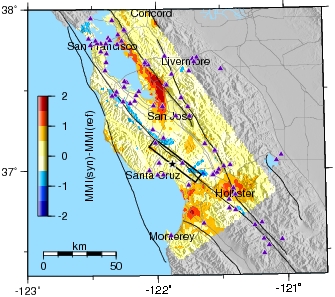

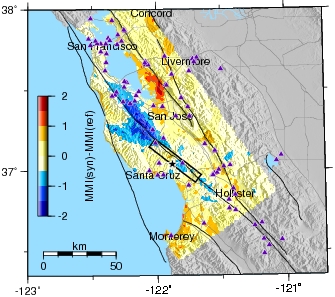

Dolenc vs. Graves, Beroza Source, MMI difference Dolenc vs. Graves, Wald Source, MMI difference

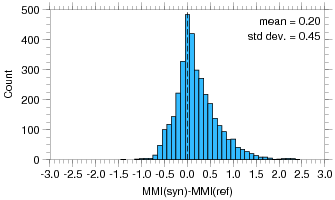

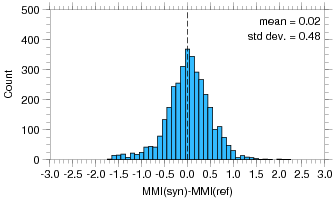

Dolenc vs. Graves, Beroza Source, MMI misfit Dolenc vs. Graves, Wald Source, MMI misfit

Difference in MMI between Harmsen et al.'s (T > 1.0 s) simulations and Graves's (T > 1.0 s) simulations of the Loma Prieta earthquake for the Beroza and Wald source models.

Beroza Source Wald Source

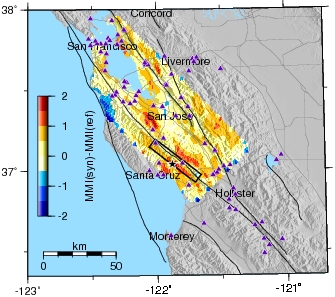

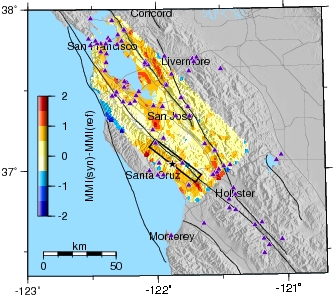

Harmsen vs. Graves, Beroza Source, MMI difference Harmsen vs. Graves, Wald Source, MMI difference

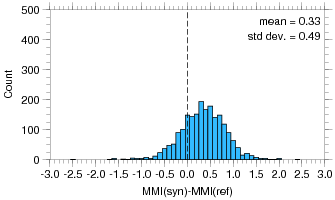

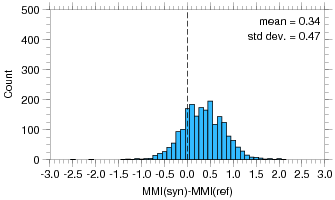

Harmsen vs. Graves, Beroza Source, MMI misfit Harmsen vs. Graves, Wald Source, MMI misfit

Difference in MMI between Graves long-period (T > 1.0 s) and broadband (T > 0.1 s) simulations of the Loma Prieta earthquake for the Beroza and Wald source models.

Beroza Source Wald Source

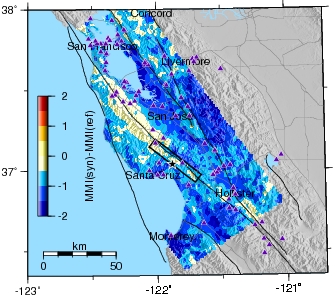

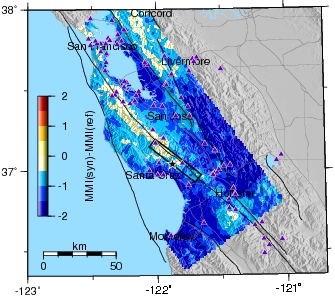

Graves (long period vs. broadband), Beroza Source, MMI difference Graves (long period vs. broadband), Wald Source, MMI difference

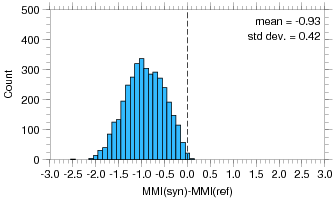

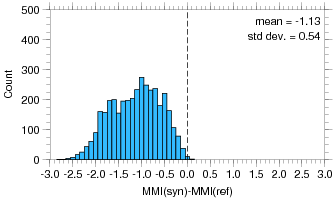

Graves (long period vs. broadband), Beroza Source, MMI misfit Graves vs. (long period vs broadband), Wald Source, MMI misfit
