Velocity Waveforms with Synthetics Filtered to Bandwidth of Simulations
Comparison of recorded and synthetic velocity waveforms at 52 sites in the San Francisco Bay area (see map on top-level page for station locations). Synthetic waveforms have been filtered to the bandwidth of the corresponding ground motion simulations.

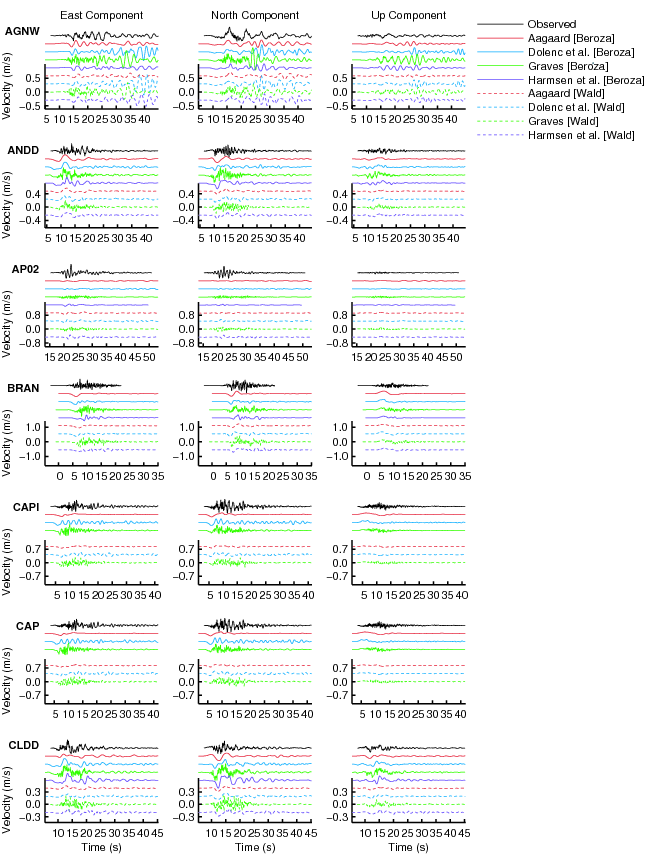

Comparison of observed and synthetic waveforms (1 of 8).

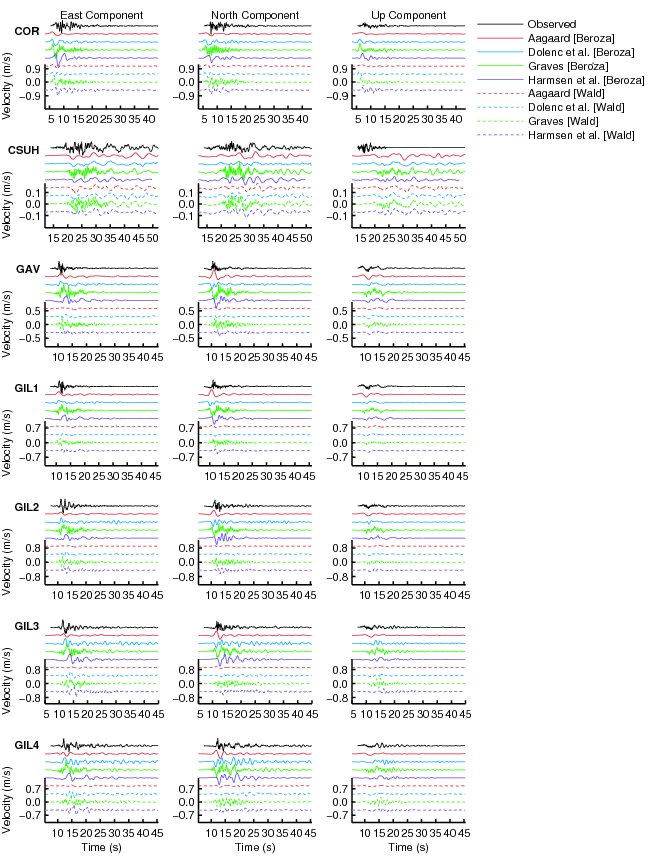

Comparison of observed and synthetic waveforms (2 of 8).

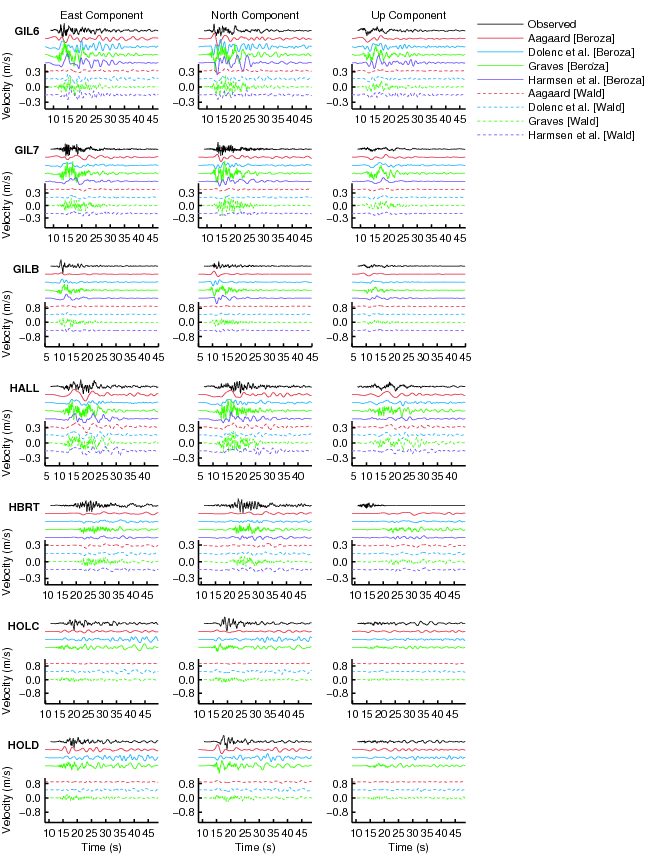

Comparison of observed and synthetic waveforms (3 of 8).
Comparison of observed and synthetic waveforms (4 of 8).

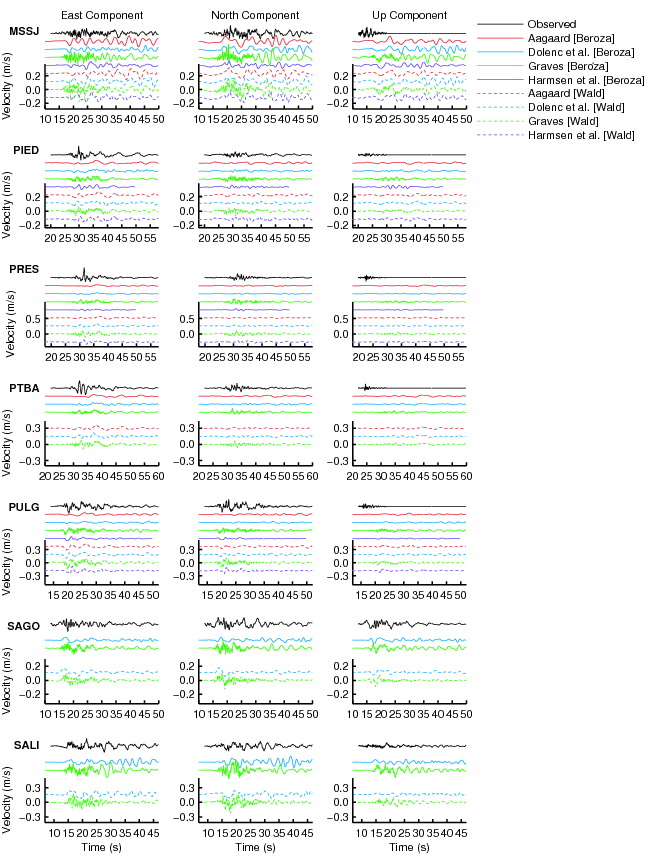

Comparison of observed and synthetic waveforms (5 of 8).

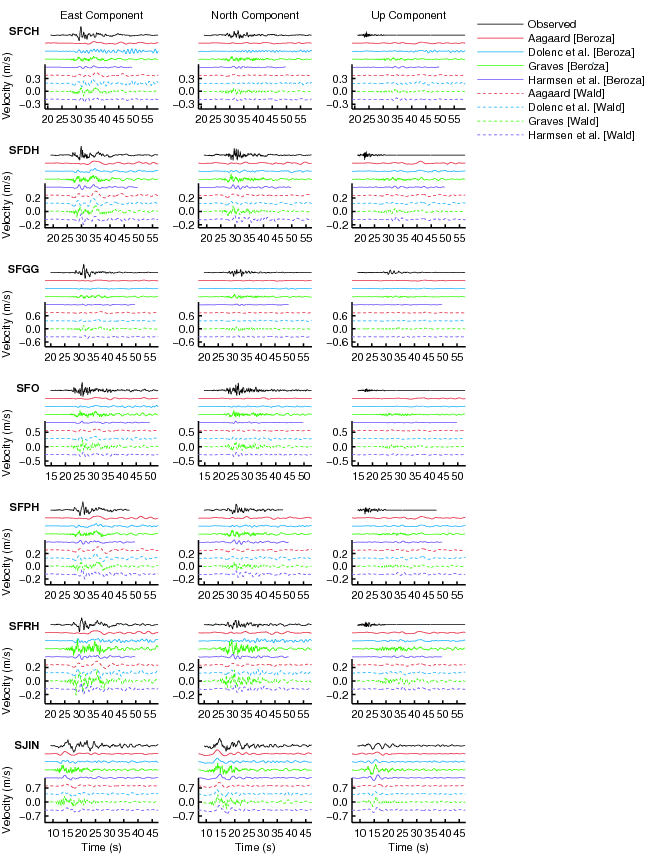

Comparison of observed and synthetic waveforms (6 of 8).

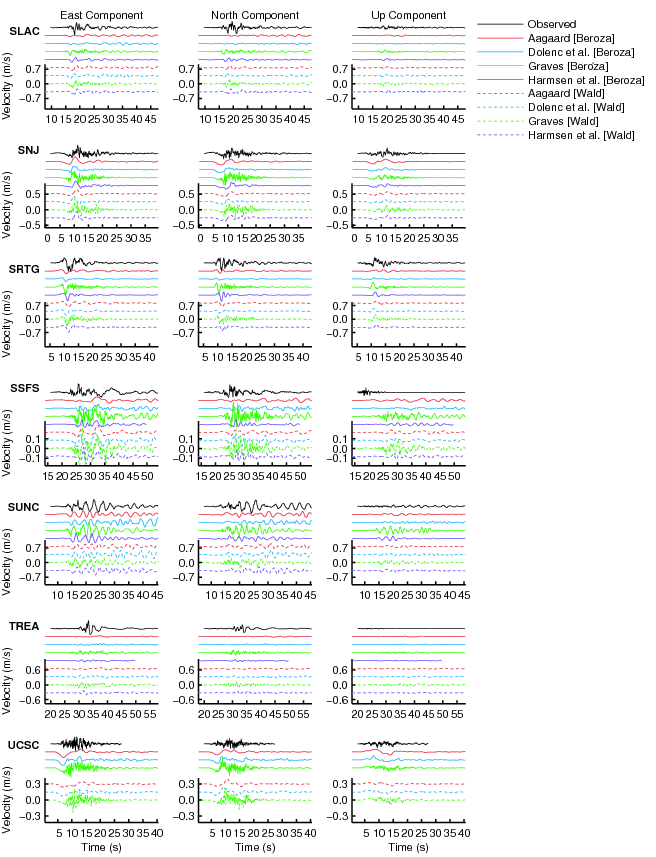

Comparison of observed and synthetic waveforms (7 of 8).
Comparison of observed and synthetic waveforms (8 of 8).
