Low-pass Filtered (T > 2.0 s) Velocity Waveforms
Comparison of recorded and synthetic velocity waveforms at 52 sites in the San Francisco Bay area (see map on top-level page for station locations). All waveforms have been low-pass filtered to a common bandwidth of T > 2.0 s.

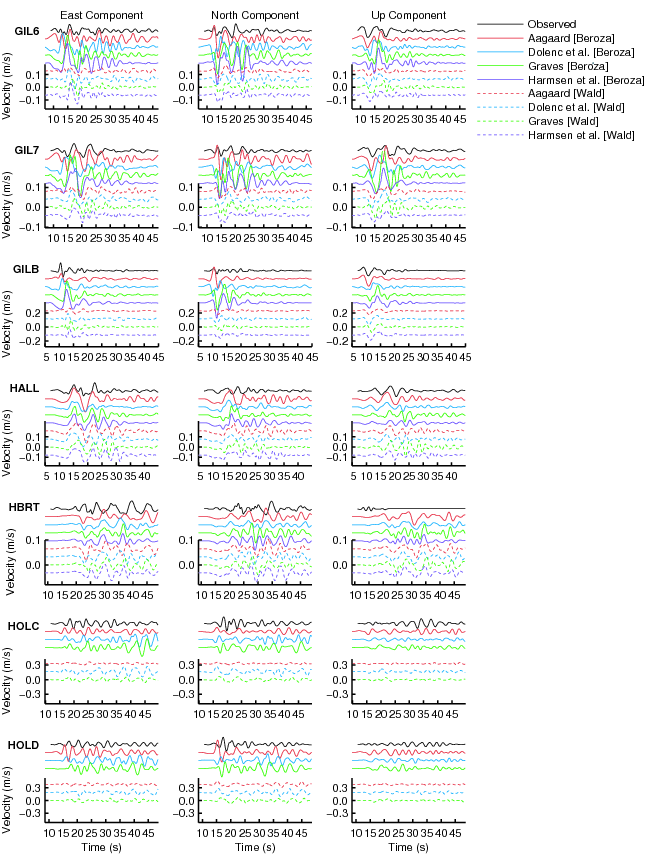

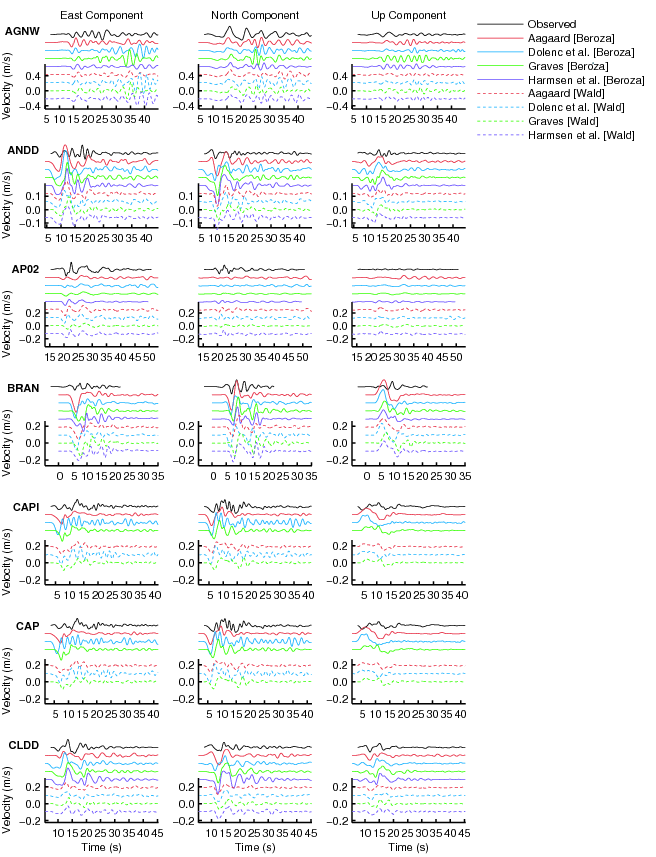

Comparison of observed and synthetic waveforms (1 of 8).

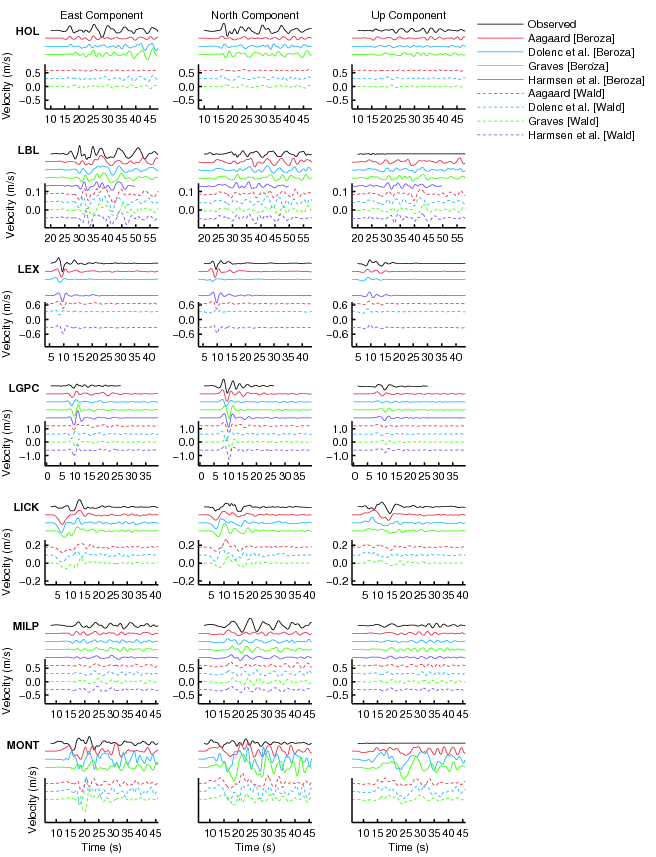

Comparison of observed and synthetic waveforms (2 of 8).

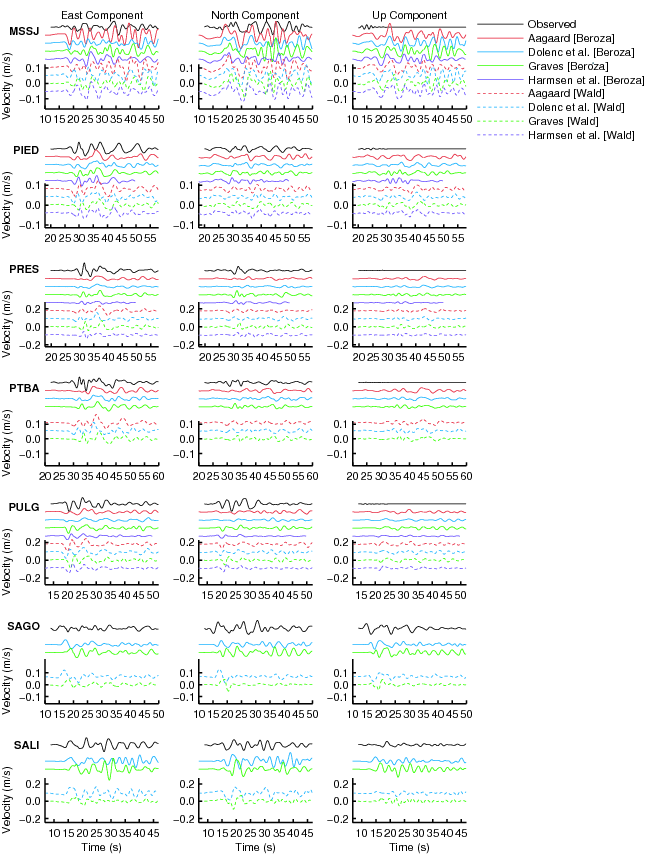

Comparison of observed and synthetic waveforms (3 of 8).

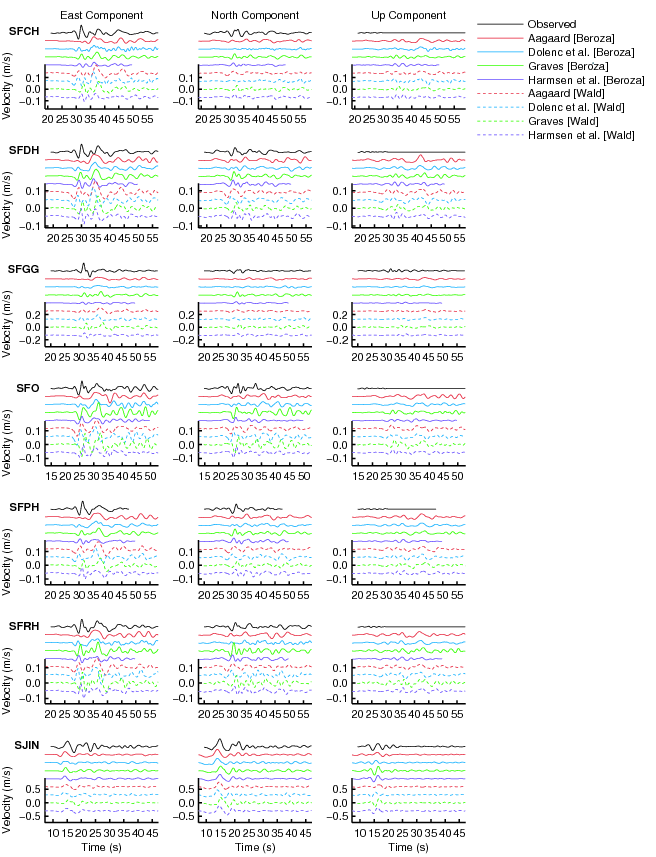

Comparison of observed and synthetic waveforms (4 of 8).

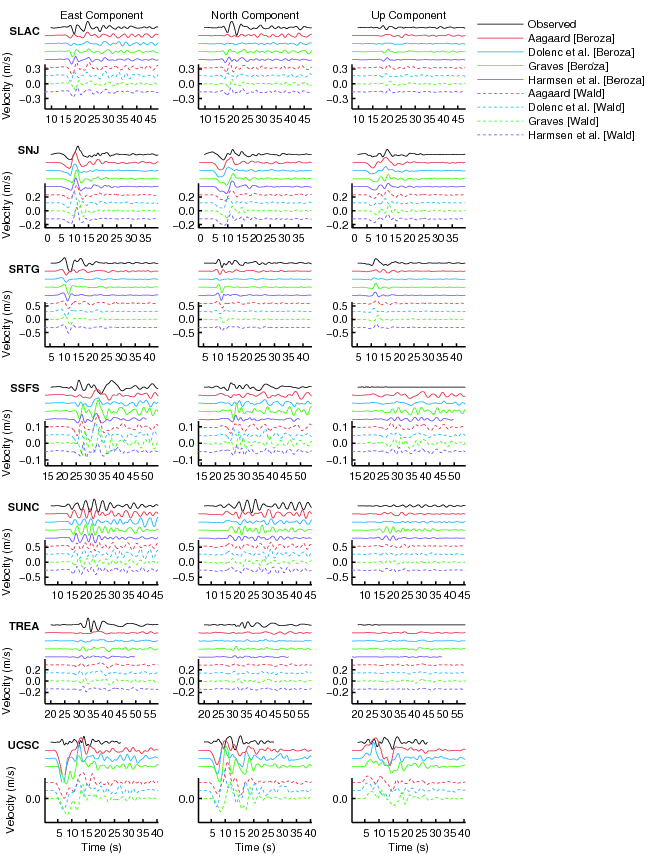

Comparison of observed and synthetic waveforms (5 of 8).
Comparison of observed and synthetic waveforms (6 of 8).
Comparison of observed and synthetic waveforms (7 of 8).
Comparison of observed and synthetic waveforms (8 of 8).
